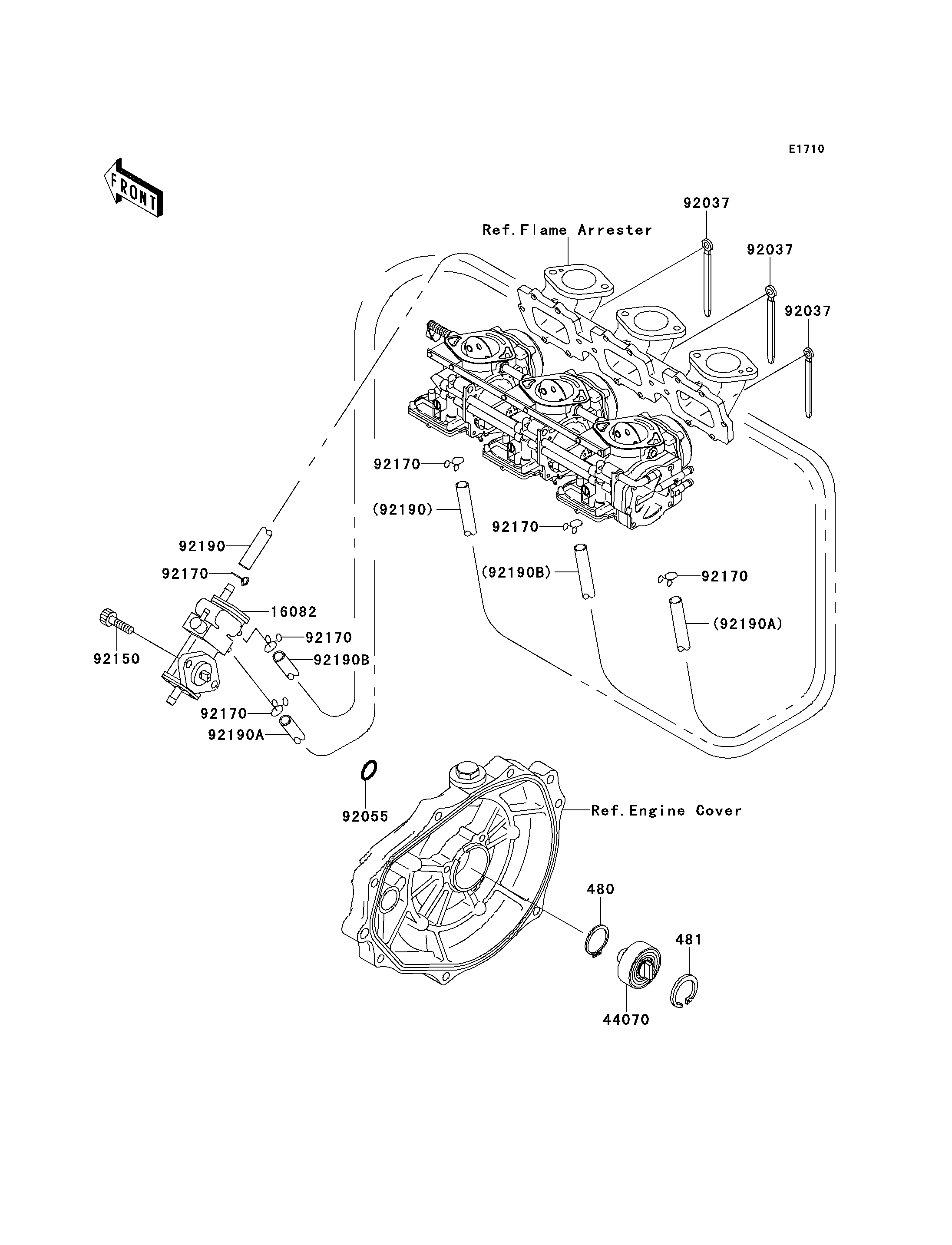

Parts Diagrams |
480
481
16082
44070
92037
92037
92037
92055
92150
92170
92170
92170
92170
92170
92170
92190
92190A
92190B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CIRCLIP-TYPE-C,12MM | 480 | 480J1200 | 1 | ||
| CIRCLIP-TYPE-C,37MM | 481 | 481J3700 | 1 | ||
| PUMP-ASSY-OIL | 16082 | 16082-3719 | 1 | ||
| DAMPER-ASSY | 44070 | 44070-3701 | 1 | ||
| CLAMP,L=100 | 92037 | 92037-3736 | 3 | ||
| RING-O,19.5X1.5 | 92055 | 92055-055 | 1 | ||
| BOLT,SOCKET,6X25 | 92150 | 92150-3830 | 2 | ||
| CLAMP | 92170 | 92170-3750 | 6 | ||
| TUBE,3X6X420 | 92190 | 92190-3945 | 1 | ||
| TUBE,6X12X600 | 92190A | 92190-3947 | 1 | ||
| TUBE,RR,CARBURETOR | 92190B | 92190-3967 | 1 |
| CIRCLIP-TYPE-C,12MM | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-C,37MM | |
| REF # | 481 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PUMP-ASSY-OIL | |
| REF # | 16082 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER-ASSY | |
| REF # | 44070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,L=100 | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| RING-O,19.5X1.5 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X25 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| TUBE,3X6X420 | |
| REF # | 92190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,6X12X600 | |
| REF # | 92190A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,RR,CARBURETOR | |
| REF # | 92190B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
