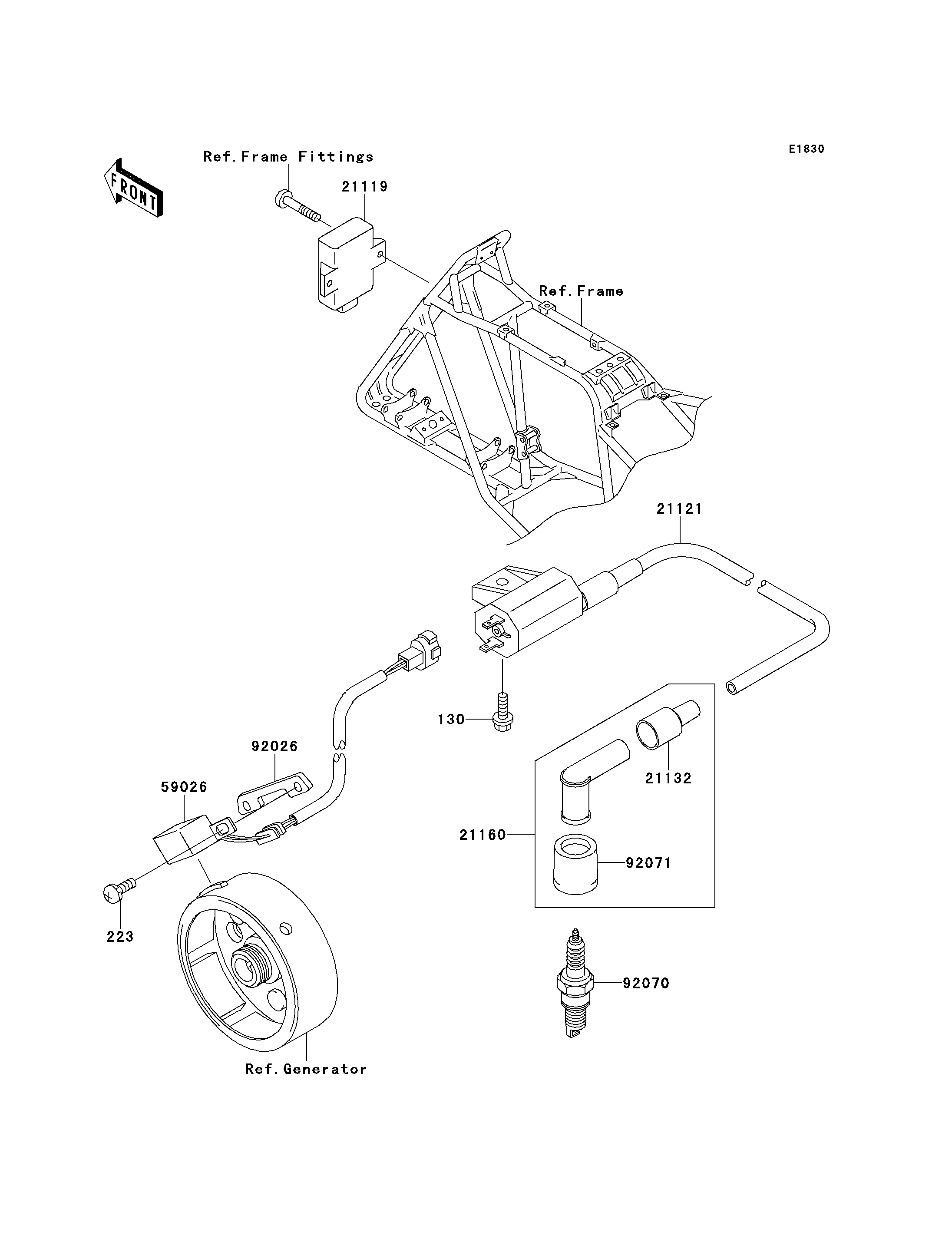

Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

130
223
21119
21121
21132
21160
59026
92026
92070
92071
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130AA0616 1
SCREW-PAN-WS-CROS,5X16 223 223AA0516 2
IGNITER 21119 21119-1457 1
COIL-IGNITION 21121 21121-1160 1
GROMMET,HIGH TENSION 21132 21132-005 1
CAP-ASSY-PLUG 21160 21160-1085 1
COIL-PULSING 59026 59026-1135 1
SPACER 92026 92026-1292 1
PLUG-SPARK,DR8ES(NGK) 92070 92070-1019 1
GROMMET,PLUG CAP 92071 92071-1184 1
