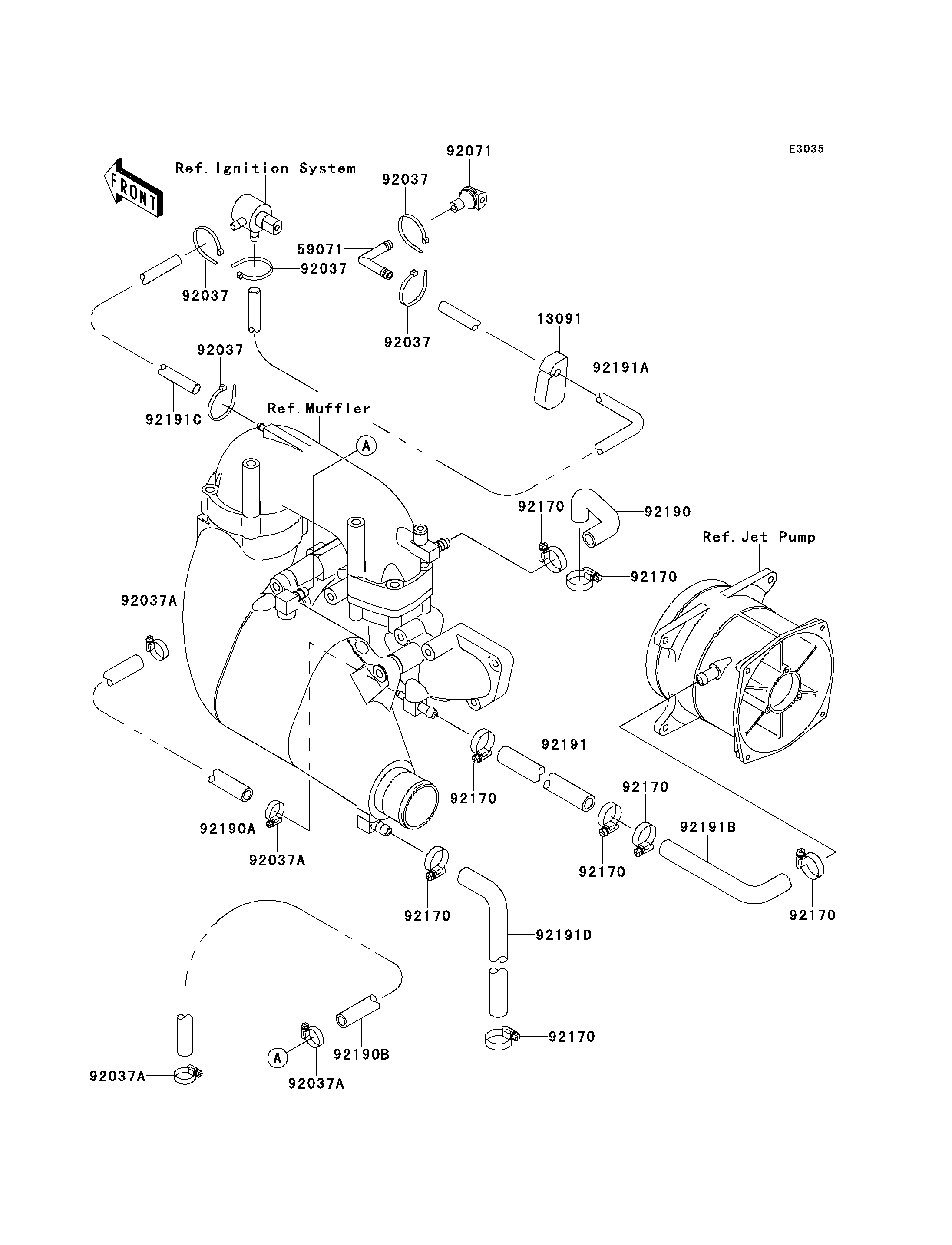

Parts Diagrams |
13091
59071
92037
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92071
92170
92170
92170
92170
92170
92170
92170
92170
92190
92190A
92190B
92191
92191A
92191B
92191C
92191D
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER | 13091 | 13091-3712 | 1 | ||
| JOINT | 59071 | 59071-3736 | 1 | ||
| CLAMP | 92037 | 92037-1173 | 5 | ||
| CLAMP | 92037A | 92037-3726 | 4 | ||
| GROMMET | 92071 | 92071-3815 | 1 | ||
| CLAMP | 92170 | 92170-3718 | 8 | ||
| TUBE,HEAD-EXHAUSTPIPE | 92190 | 92190-3955 | 1 | ||
| TUBE,MANIFOLD-COVER | 92190A | 92190-3974 | 1 | ||
| TUBE,COVER-CHAMBER | 92190B | 92190-3975 | 1 | ||
| TUBE,EXHAUSTMANIFOLD-HULL | 92191 | 92191-3745 | 1 | ||
| TUBE,SENSOR-DECK | 92191A | 92191-3748 | 1 | ||
| TUBE,PUMP-HULL | 92191B | 92191-3785 | 1 | ||
| TUBE,EXHAUST PIPE-SENSOR | 92191C | 92191-3803 | 1 | ||
| TUBE,CHAMBER-TAIL PIPE | 92191D | 92191-3850 | 1 |
| HOLDER | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT | |
| REF # | 59071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| TUBE,HEAD-EXHAUSTPIPE | |
| REF # | 92190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,MANIFOLD-COVER | |
| REF # | 92190A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,COVER-CHAMBER | |
| REF # | 92190B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,EXHAUSTMANIFOLD-HULL | |
| REF # | 92191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,SENSOR-DECK | |
| REF # | 92191A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,PUMP-HULL | |
| REF # | 92191B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,EXHAUST PIPE-SENSOR | |
| REF # | 92191C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,CHAMBER-TAIL PIPE | |
| REF # | 92191D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
