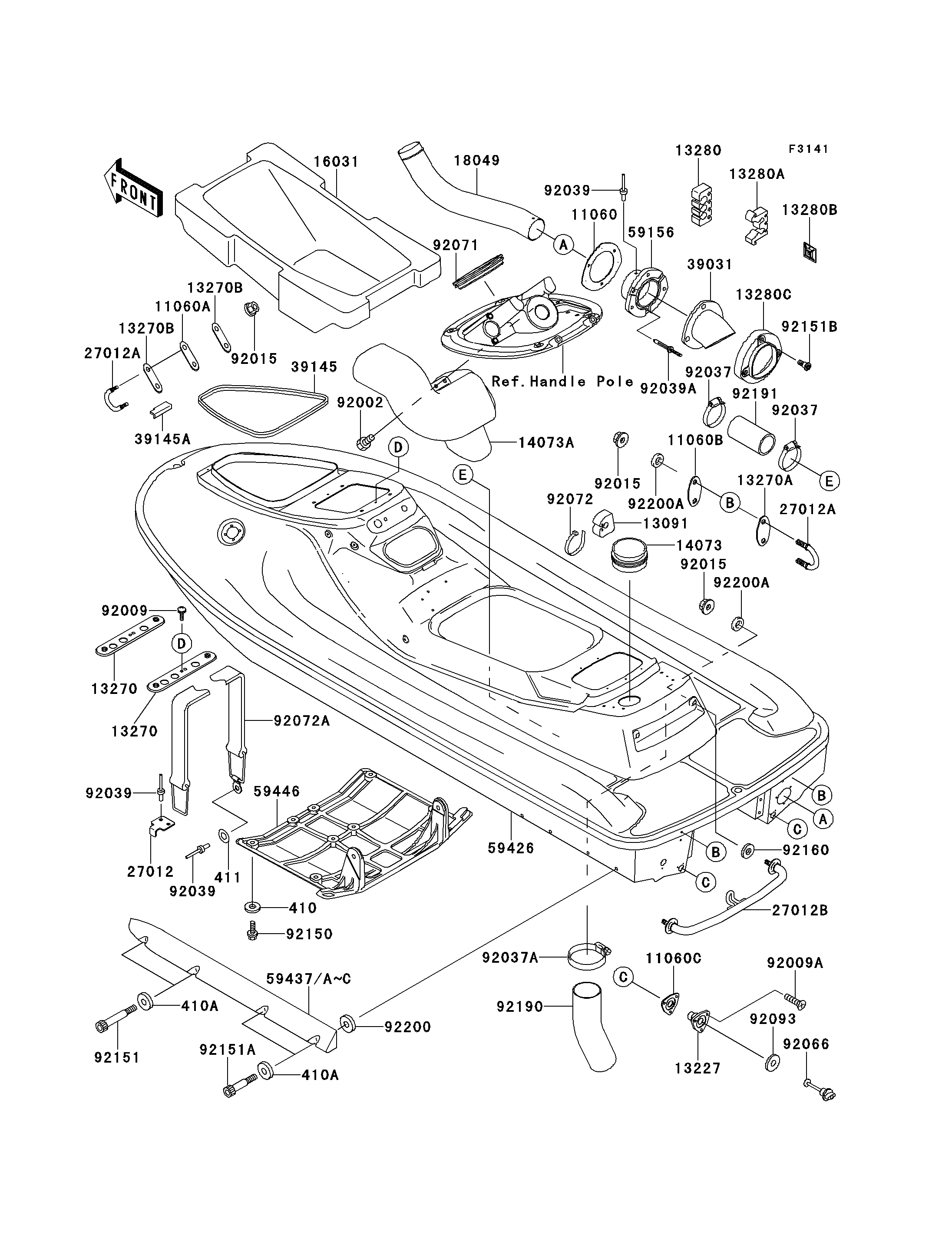

2000 900 STX - Hull

DOWNLOAD PDF
SELECT A NEW PART
11060
11060
11060A
11060A
11060B
11060B
11060C
11060C
13091
13091
13227
13227
13270
13270
13270
13270
13270A
13270A
13270B
13270B
13270B
13270B
13280
13280
13280A
13280A
13280B
13280B
13280C
13280C
14073
14073
14073A
14073A
16031
16031
18049
18049
27012
27012
27012A
27012A
27012A
27012A
27012B
27012B
39031
39031
39145
39145
39145A
39145A
59156
59156
59426
59426
59437A
59437A
59437C
59437C
59446
59446
92002
92002
92009
92009
92009A
92009A
92015
92015
92015
92015
92015
92015
92037
92037
92037
92037
92037A
92037A
92039
92039
92039
92039
92039
92039
92039A
92039A
92066
92066
410
410
410A
410A
410A
410A
411
411
92071
92071
92072
92072
92072A
92072A
92093
92093
92150
92150
92151
92151
92151A
92151A
92151B
92151B
92160
92160
92190
92190
92191
92191
92200
92200
92200A
92200A
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TAIL PIPE 11060 11060-3797 1
GASKET,U HOOK,FR 11060A 11060-3799 1
GASKET,U HOOK,RR 11060B 11060-3800 2
GASKET,DRAIN PLUG 11060C 11060-3801 2
HOLDER 13091 13091-3780 1
HOUSING,DRAIN PLUG 13227 13227-3711 2
PLATE 13270 13270-3809 2
PLATE 13270A 13270-3860 2
PLATE 13270B 13270-3896 2
HOLDER 13280 13280-3703 3
HOLDER,FUEL FILTER 13280A 13280-3705 1
HOLDER 13280B 13280-3706 13
HOLDER,TAIL PIPE CAP 13280C 13280-3715 1
DUCT,AIR INTAKE 14073 14073-3762 1
DUCT,AIR INTAKE 14073A 14073-3773 1
FLOAT 16031 16031-3840 1
PIPE-EXHAUST 18049 18049-3757 1
HOOK 27012 27012-3787 1
HOOK 27012A 27012-3797 3
HOOK,TOWING,RR 27012B 27012-3800 1
CAP-END,TAIL PIPE 39031 39031-3703 1
TRIM-SEAL,L=1412 39145 39145-3748 1
TRIM-SEAL,L=76 39145A 39145-3770 1
PIPE-TAIL 59156 59156-3719 1
HULL-COMP,S.YELLOW 59426 59426-3893-CU 1
STABILIZER,LH,F.BLACK 59437A 59437-3711-6Z 1
STABILIZER,RH,F.BLACK 59437C 59437-3712-6Z 1
COVER-JET PUMP 59446 59446-3746 1
BOLT,6X20 92002 92002-3755 2
SCREW,5X16 92009 92009-3789 1
SCREW,TAPPING,4X16 92009A 92009-3849 6
NUT,FLANGED,8MM 92015 92015-3709 8
CLAMP 92037 92037-509 2
CLAMP 92037A 92037-541 1
RIVET,4.8MM 92039 92039-3719 4
RIVET 92039A 92039-3741 3
PLUG,RR,DRAIN 92066 92066-3744 2
WASHER-PLAIN-SMALL,6MM 410 410S0600 8
WASHER-PLAIN-SMALL,8MM 410A 410S0800 8
WASHER-PLAIN,5MM 411 411S0500 1
GROMMET 92071 92071-3812 1
BAND,L=201 92072 92072-3778 1
BAND,314X18 92072A 92072-3814 1
SEAL 92093 92093-3720 2
BOLT,SOCKET,6X18 92150 92150-3775 8
BOLT,SOCKET,6X40 92151 92151-3719 4
BOLT,SOCKET,6X52 92151A 92151-3720 4
BOLT,SOCKET,M6,SHOULDER 92151B 92151-3746 3
DAMPER 92160 92160-3912 2
TUBE 92190 92190-3963 1
TUBE,39X51X90 92191 92191-3744 1
WASHER,6X16X3 92200 92200-3754 8
WASHER 92200A 92200-3779 6
