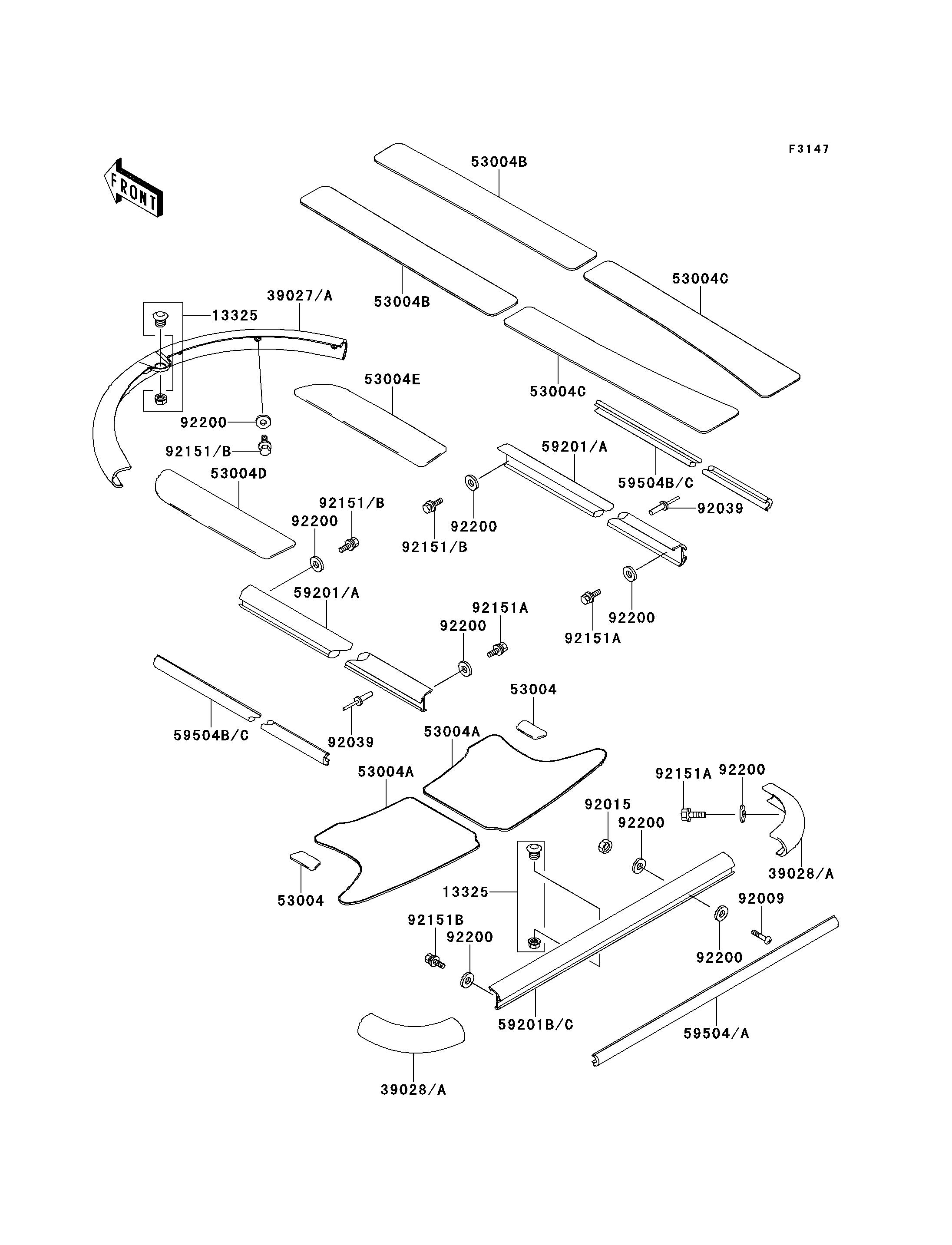

2000 900 STX - Pads

DOWNLOAD PDF
SELECT A NEW PART
13325
13325
39027A
39028A
39028A
53004
53004
53004A
53004A
53004B
53004B
53004C
53004C
53004D
53004E
59201A
59201A
59201C
59504A
59504C
59504C
92009
92015
92039
92039
92151
92151
92151
92151A
92151A
92151A
92151B
92151B
92151B
92151B
92200
92200
92200
92200
92200
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BUSHING-ASSY,BLACK 13325 13325-3703 2
BUMPER-FRONT,F.BLACK 39027A 39027-3735-6Z 1
BUMPER-REAR,CORNER,F.BLACK 39028A 39028-3748-6Z 2
MAT,FLOOR,RR,S.GRAY 53004 53004-3777-RG 2
MAT,DECK,RR,S.GRAY 53004A 53004-3778-RG 2
MAT,FLOOR,FR,S.GRAY 53004B 53004-3781-RG 2
MAT,FLOOR,RR,S,GRAY 53004C 53004-3782-RG 2
MAT,DECK,FR,LH,S.GRAY 53004D 53004-3783-RG 1
MAT,DECK,FR,RH,S.GRAY 53004E 53004-3784-RG 1
BUMPER,SIDE,F.BLACK 59201A 59201-3771-6Z 2
BUMPER,RR,F.BLACK 59201C 59201-3772-6Z 1
INSERT-BOAT FENDER,RR,F.BLACK 59504A 59504-3716-6Z 1
INSERT-BOAT FENDER,SIDE,BLACK 59504C 59504-3720-6Z 2
SCREW,5X30 92009 92009-3834 4
NUT,LOCK,5MM 92015 92015-3798 4
RIVET 92039 92039-3747 24
BOLT,5X20 92151 92151-3717 AR
BOLT,5X20 92151A 92151-3717 4
BOLT,5X25 92151B 92151-3718 8
WASHER,5.9X16X1.5 92200 92200-3714 20
