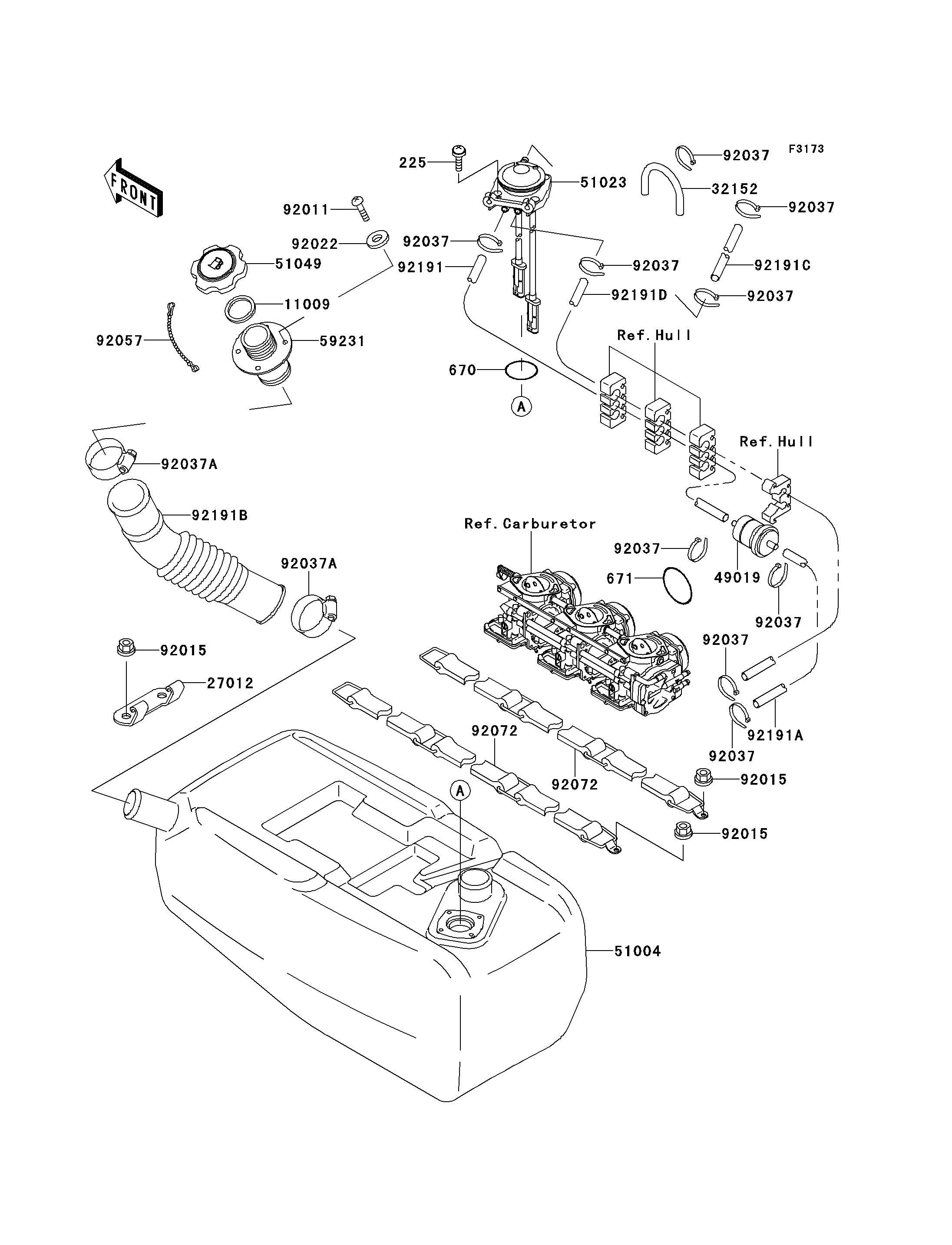

2000 900 STX - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
225
670
671
11009
27012
32152
49019
51004
51023
51049
59231
92011
92015
92015
92015
92022
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037A
92037A
92057
92072
92072
92191
92191A
92191B
92191C
92191D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-WSP-CROS,5X20 225 225R0520 4
O RING,36MM 670 670B3036 1
O RING,65MM 671 671B2565 1
GASKET,TANK CAP 11009 11009-3020 1
HOOK 27012 27012-3802 2
PIPE 32152 32152-3705 1
FILTER-FUEL 49019 49019-3712 1
TANK-FUEL 51004 51004-3721 1
TAP-ASSY,FUEL 51023 51023-3733 1
CAP-TANK,FUEL 51049 51049-3714 1
FILLER,FUEL TANK 59231 59231-3716 1
SCREW 92011 92011-562 4
NUT,6MM 92015 92015-3767 8
WASHER 92022 92022-563 4
CLAMP 92037 92037-1173 9
CLAMP 92037A 92037-3009 2
CHAIN,COVER,L=100 92057 92057-3704 1
BAND,FUEL TANK 92072 92072-3794 4
TUBE,"ON",5.8X10.8X270 92191 92191-3708 1
TUBE,"ON",5.8X10.8X940 92191A 92191-3715 1
TUBE 92191B 92191-3735 1
TUBE,5.8X10.8X1000 92191C 92191-3736 1
TUBE,"RETURN" 92191D 92191-3864 1
