120
120
21003
21007
21066
92002
92153
92200

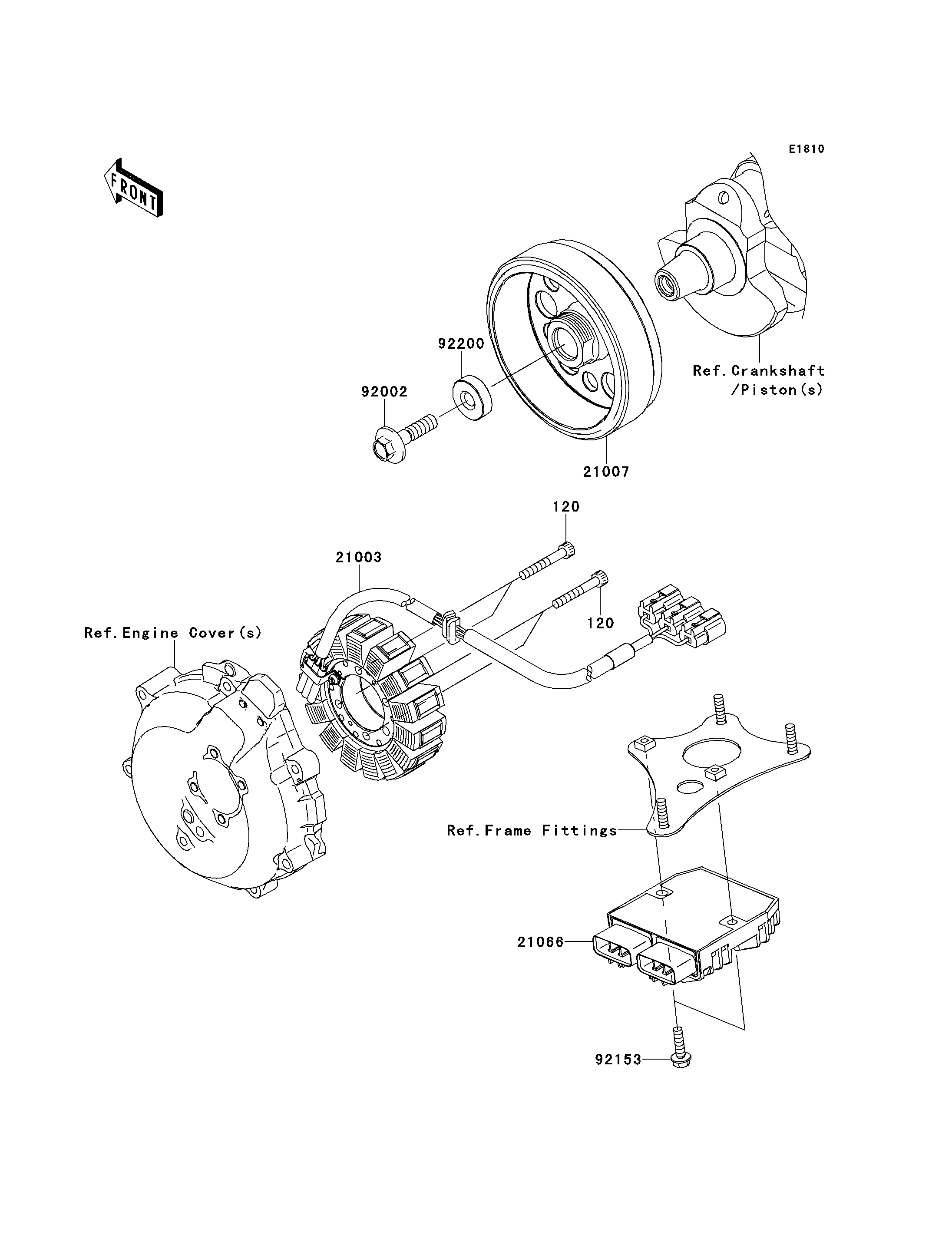

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X40 120 120CA0640 4
STATOR 21003 21003-0057 1
ROTOR 21007 21007-0094 1
REGULATOR-VOLTAGE 21066 21066-0022 1
BOLT,FLANGED,10X40 92002 92002-1296 1
BOLT,FLANGED,6X22 92153 92153-1598 2
WASHER,12X34X9 92200 92200-1667 1
