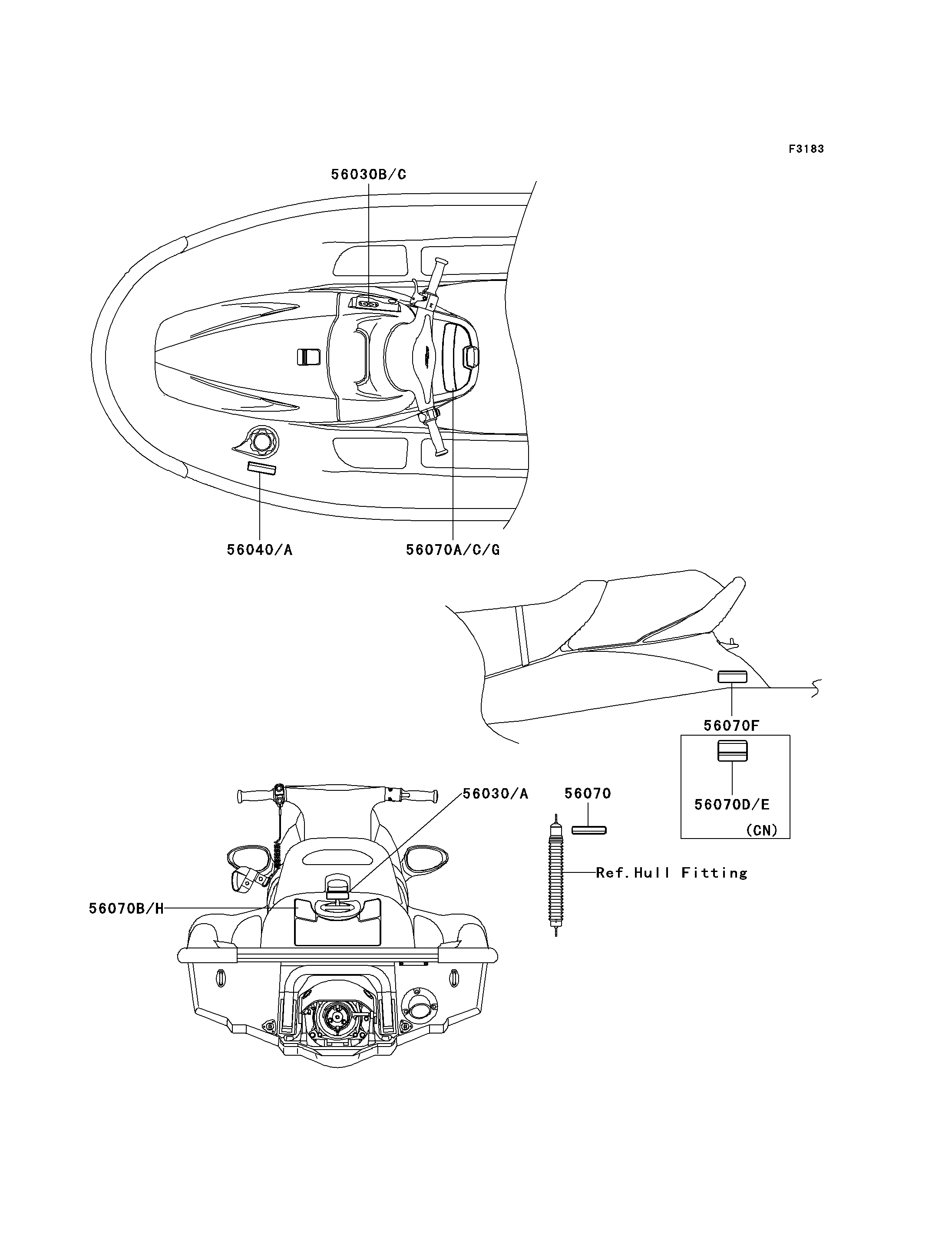

56030
56030B
56040
56070
56070A
56070B
56070F
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,FIRE EXTINGUISHER 56030 56030-3755 1
LABEL,REVERSE 56030B 56030-3815 1
LABEL-WARNING,GASOLINE 56040 56040-3972 1
LABEL-WARNING,DAMPER 56070 56070-3876 1
LABEL-WARNING,CENTER STORAGE 56070A 56070-3912 1
LABEL-WARNING,IMPORTANT SAFETY 56070B 56070-3937 1
LABEL-WARNING,GRAB HANDLE&STEP 56070F 56070-3944 1
