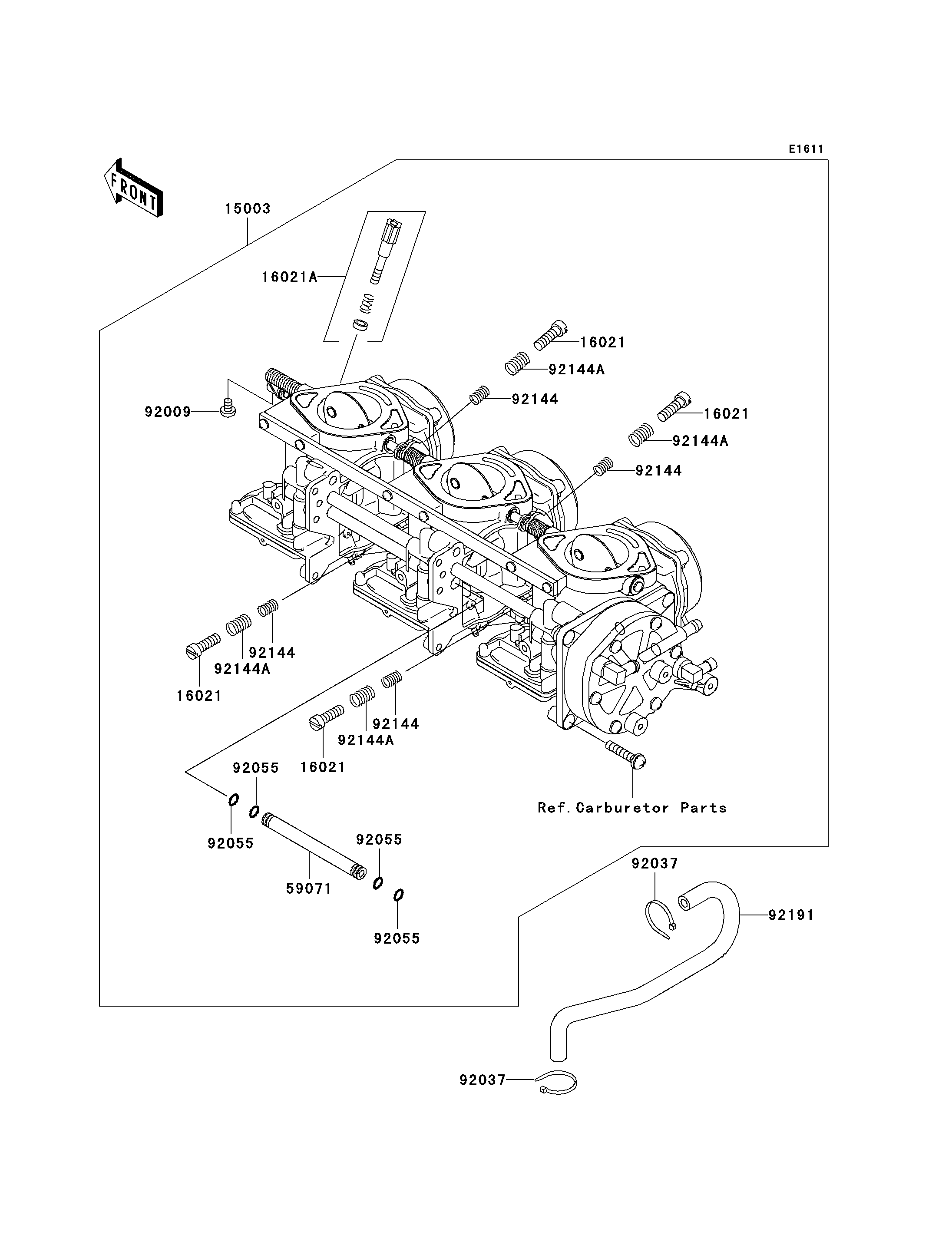

Parts Diagrams |
15003
16021
16021
16021
16021
16021A
59071
92009
92037
92037
92055
92055
92055
92055
92144
92144
92144
92144
92144A
92144A
92144A
92144A
92191
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CARBURETOR-ASSY | 15003 | 15003-3735 | 1 | ||
SCREW-THROTTLE STOP | 16021 | 16021-3704 | 4 | ||
SCREW-THROTTLE STOP | 16021A | 16021-3707 | 1 | ||
JOINT | 59071 | 59071-3762 | 4 | ||
SCREW,4X6 | 92009 | 92009-3786 | 1 | ||
CLAMP | 92037 | 92037-1173 | 2 | ||
RING-O | 92055 | 92055-1246 | 16 | ||
SPRING,ADJUST SCREW | 92144 | 92144-3704 | 4 | ||
SPRING,THROTTLE STOP SCREW | 92144A | 92144-3745 | 4 | ||
TUBE | 92191 | 92191-3902 | 1 |
CARBURETOR-ASSY | |
REF # | 15003 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-THROTTLE STOP | |
REF # | 16021 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW-THROTTLE STOP | |
REF # | 16021A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JOINT | |
REF # | 59071 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW,4X6 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 16 |
DESTINATION | |
REMARKS |
SPRING,ADJUST SCREW | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SPRING,THROTTLE STOP SCREW | |
REF # | 92144A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
TUBE | |
REF # | 92191 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
