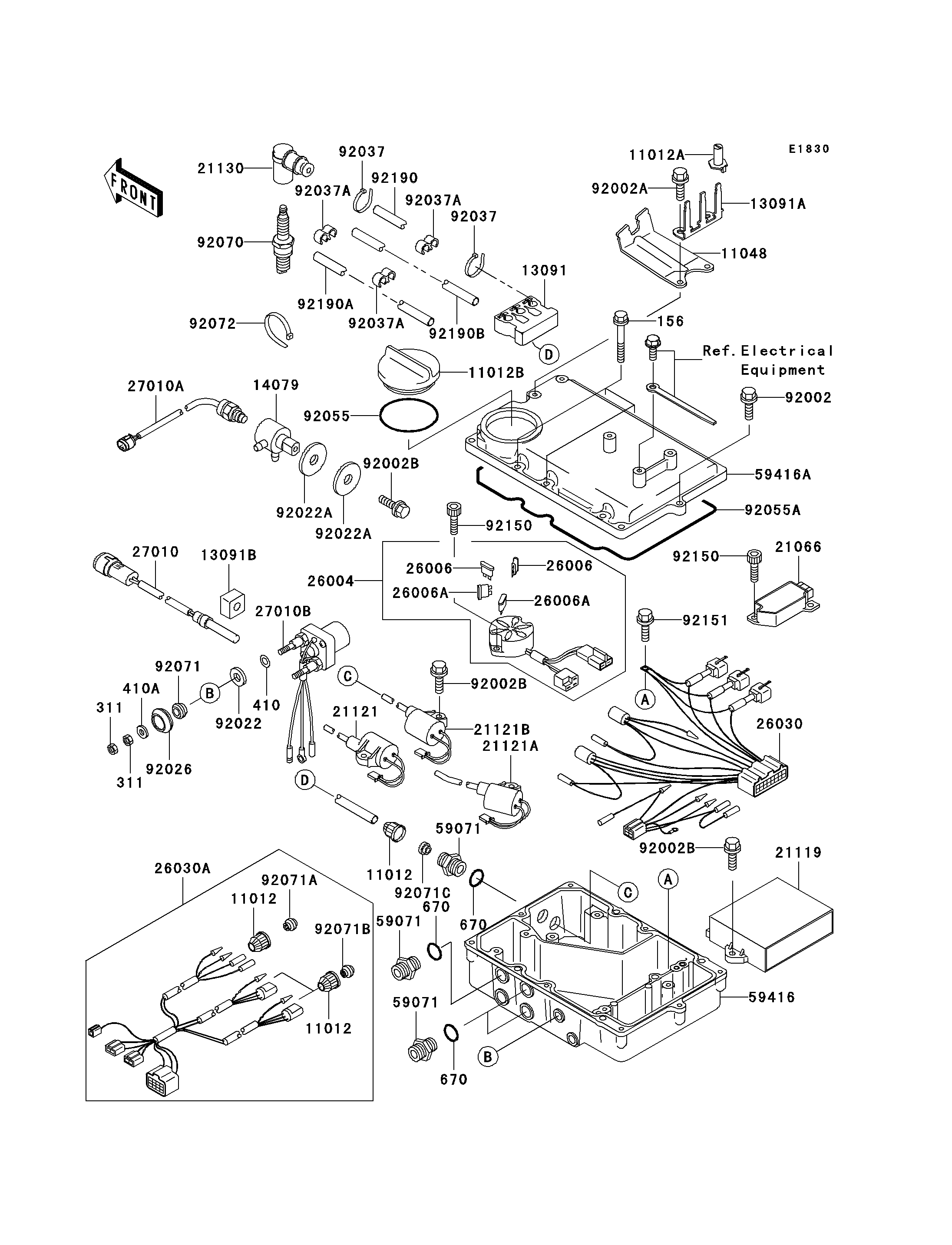

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP | 11012 | 11012-3005 | 6 | ||
CAP,HOLDER | 11012A | 11012-3768 | 3 | ||
CAP | 11012B | 11012-3791 | 1 | ||
BRACKET | 11048 | 11048-3770 | 1 | ||
HOLDER | 13091 | 13091-3785 | 1 | ||
HOLDER | 13091A | 13091-3800 | 1 | ||
HOLDER | 13091B | 13091-3804 | 1 | ||
HOLDER-ASSY | 14079 | 14079-3710 | 1 | ||
REGULATOR-VOLTAGE | 21066 | 21066-3712 | 1 | ||
IGNITER | 21119 | 21119-3754 | 1 | ||
COIL-IGNITION,#1 | 21121 | 21121-3708 | 1 | ||
COIL-IGNITION,#2 | 21121A | 21121-3709 | 1 | ||
COIL-IGNITION,#3 | 21121B | 21121-3710 | 1 | ||
CAP-SPARK PLUG | 21130 | 21130-3706 | 3 | ||
FUSE-ASSY | 26004 | 26004-3719 | 1 | ||
FUSE,10A-R | 26006 | 26006-1007 | 2 | ||
FUSE,3A-P | 26006A | 26006-1060 | 2 | ||
HARNESS,IGNITER | 26030 | 26030-3724 | 1 | ||
HARNESS,SUB | 26030A | 26030-3740 | 1 | ||
SWITCH | 27010 | 27010-3744 | 1 | ||
SWITCH | 27010A | 27010-3759 | 1 | ||
SWITCH,STARTER RELAY | 27010B | 27010-3760 | 1 | ||
JOINT | 59071 | 59071-3001 | 6 | ||
CASE-ELECTRIC,LWR | 59416 | 59416-3759 | 1 | ||
CASE-ELECTRIC,UPP | 59416A | 59416-3760 | 1 | ||
BOLT,6X25 | 92002 | 92002-3714 | 8 | ||
BOLT,6X16 | 92002A | 92002-3728 | 2 | ||
BOLT,6X20 | 92002B | 92002-3755 | 6 | ||
WASHER | 92022 | 92022-3035 | 2 | ||
WASHER,6.2X20X2 | 92022A | 92022-3714 | 2 | ||
SPACER | 92026 | 92026-3703 | 2 | ||
CLAMP | 92037 | 92037-1173 | 6 | ||
CLAMP,HOSE | 92037A | 92037-1603 | 3 | ||
RING-O | 92055 | 92055-1292 | 1 | ||
RING-O,ELECTRIC | 92055A | 92055-3738 | 1 | ||
PLUG-SPARK,BR9ES(NGK),SOLID | 92070 | 92070-1157 | 3 | ||
GROMMET | 92071 | 92071-3004 | 2 | ||
GROMMET | 92071A | 92071-3786 | 1 | ||
GROMMET | 92071B | 92071-3804 | 2 | ||
GROMMET | 92071C | 92071-527 | 3 | ||
BOLT-WP | 156 | 156R0690 | 4 | ||
NUT-HEX,6MM | 311 | 311R0600 | 4 | ||
WASHER-PLAIN-SMALL,10MM | 410 | 410B1000 | 2 | ||
WASHER-PLAIN-SMALL,6MM | 410A | 410S0600 | 2 | ||
O RING,16MM | 670 | 670B2016 | 6 | ||
BAND,L=201 | 92072 | 92072-3778 | 2 | ||
BOLT,SOCKET,6X18 | 92150 | 92150-3775 | 4 | ||
BOLT,6X14 | 92151 | 92151-3788 | 1 | ||
TUBE,HIGH TENSION,L=330 | 92190 | 92190-3707 | 1 | ||
TUBE,8X10X565 | 92190A | 92190-3942 | 1 | ||
TUBE,8X10X425 | 92190B | 92190-3943 | 1 |
