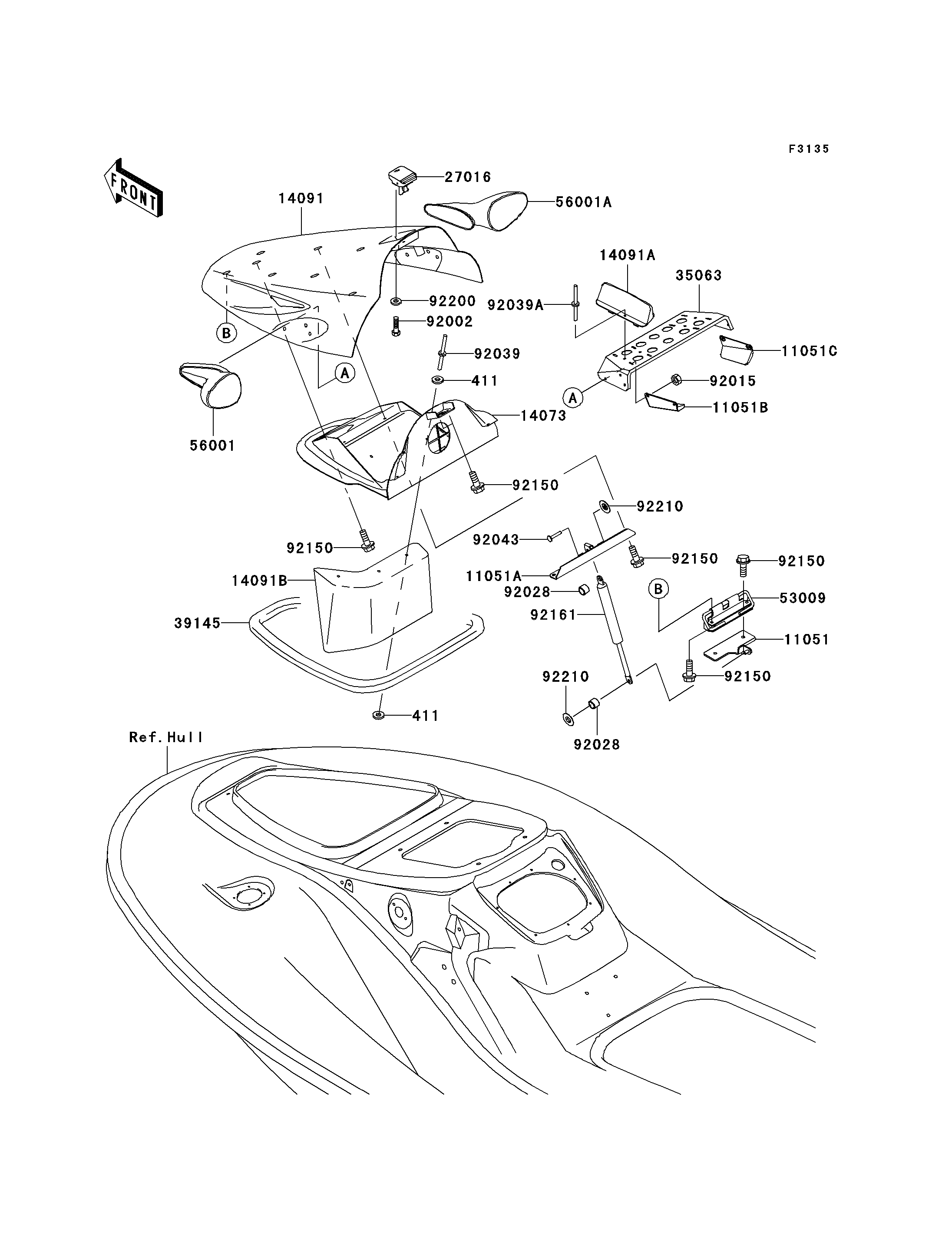

Parts Diagrams |
411
411
11051
11051A
11051B
11051C
14073
14091
14091A
14091B
27016
35063
39145
53009
56001
56001A
92002
92015
92028
92028
92039
92039A
92043
92150
92150
92150
92150
92150
92161
92200
92210
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
WASHER-PLAIN,5MM | 411 | 411S0500 | 6 | ||
BRACKET | 11051 | 11051-3741 | 1 | ||
BRACKET | 11051A | 11051-3766 | 1 | ||
BRACKET,HATCH,LH | 11051B | 11051-3798 | 1 | ||
BRACKET,HATCH,RH | 11051C | 11051-3799 | 1 | ||
DUCT,FR | 14073 | 14073-3777 | 1 | ||
COVER,HATCH,M.S.BLUE | 14091 | 14091-3704-HM | 1 | ||
COVER | 14091A | 14091-3707 | 2 | ||
COVER,FRONT DUCT | 14091B | 14091-3722 | 1 | ||
LOCK-ASSY,HATCH COVER | 27016 | 27016-3756 | 1 | ||
STAY,MIRROR | 35063 | 35063-3703 | 1 | ||
TRIM-SEAL,L=1380 | 39145 | 39145-3776 | 1 | ||
HINGE,HATCH COVER | 53009 | 53009-3725 | 1 | ||
MIRROR-ASSY,LH,M.S.BLUE | 56001 | 56001-3719-GW | 1 | ||
MIRROR-ASSY,RH,M.S.BLUE | 56001A | 56001-3720-GW | 1 | ||
BOLT,5X16 | 92002 | 92002-3747 | 2 | ||
NUT,LOCK,6MM | 92015 | 92015-3766 | 6 | ||
BUSHING | 92028 | 92028-3765 | 2 | ||
RIVET | 92039 | 92039-3714 | 3 | ||
RIVET,4.8MM | 92039A | 92039-3719 | 4 | ||
PIN,6X33 | 92043 | 92043-3748 | 1 | ||
BOLT,6X18 | 92150 | 92150-3729 | 9 | ||
DAMPER | 92161 | 92161-3705 | 1 | ||
WASHER,5.9X16X1.5 | 92200 | 92200-3714 | 2 | ||
NUT,SPEED,6MM | 92210 | 92210-3739 | 2 |
WASHER-PLAIN,5MM | |
REF # | 411 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 11051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 11051A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,HATCH,LH | |
REF # | 11051B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,HATCH,RH | |
REF # | 11051C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DUCT,FR | |
REF # | 14073 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,HATCH,M.S.BLUE | |
REF # | 14091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER | |
REF # | 14091A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COVER,FRONT DUCT | |
REF # | 14091B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LOCK-ASSY,HATCH COVER | |
REF # | 27016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY,MIRROR | |
REF # | 35063 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM-SEAL,L=1380 | |
REF # | 39145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HINGE,HATCH COVER | |
REF # | 53009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MIRROR-ASSY,LH,M.S.BLUE | |
REF # | 56001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MIRROR-ASSY,RH,M.S.BLUE | |
REF # | 56001A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,5X16 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,LOCK,6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BUSHING | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RIVET | |
REF # | 92039 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
RIVET,4.8MM | |
REF # | 92039A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIN,6X33 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X18 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 9 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92161 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,5.9X16X1.5 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,SPEED,6MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
