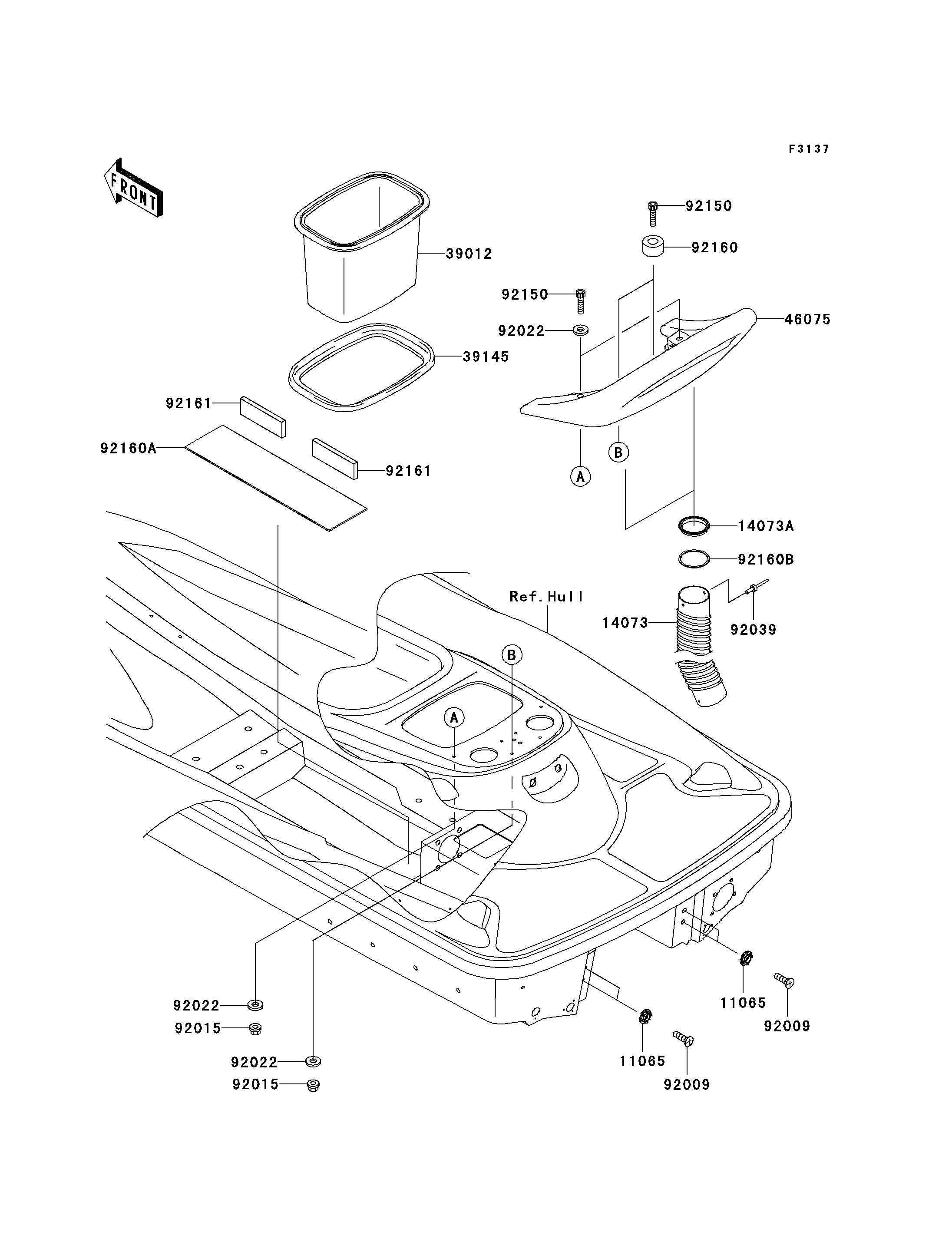

Parts Diagrams |
11065
11065
14073
14073A
39012
39145
46075
92009
92009
92015
92015
92022
92022
92022
92039
92150
92150
92160
92160A
92160B
92161
92161
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,STEP NUT | 11065 | 11065-3712 | 4 | ||
| DUCT,FR | 14073 | 14073-3764 | 2 | ||
| DUCT | 14073A | 14073-3780 | 2 | ||
| CASE-STORAGE,RR | 39012 | 39012-3720 | 1 | ||
| TRIM-SEAL,REAR STORAGE CASE | 39145 | 39145-3783 | 1 | ||
| GRIP,RR,F.BLACK | 46075 | 46075-3755-6Z | 1 | ||
| SCREW,6X12 | 92009 | 92009-3852 | 4 | ||
| NUT,6MM | 92015 | 92015-3767 | 4 | ||
| WASHER,6.5X20X1.5 | 92022 | 92022-3710 | 6 | ||
| RIVET | 92039 | 92039-3747 | 4 | ||
| BOLT,SOCKET,6X30 | 92150 | 92150-3822 | 4 | ||
| DAMPER | 92160 | 92160-3738 | 2 | ||
| DAMPER | 92160A | 92160-3839 | 1 | ||
| DAMPER | 92160B | 92160-3910 | 2 | ||
| DAMPER | 92161 | 92161-3719 | 2 |
| CAP,STEP NUT | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DUCT,FR | |
| REF # | 14073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DUCT | |
| REF # | 14073A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CASE-STORAGE,RR | |
| REF # | 39012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TRIM-SEAL,REAR STORAGE CASE | |
| REF # | 39145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP,RR,F.BLACK | |
| REF # | 46075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X12 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X30 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
