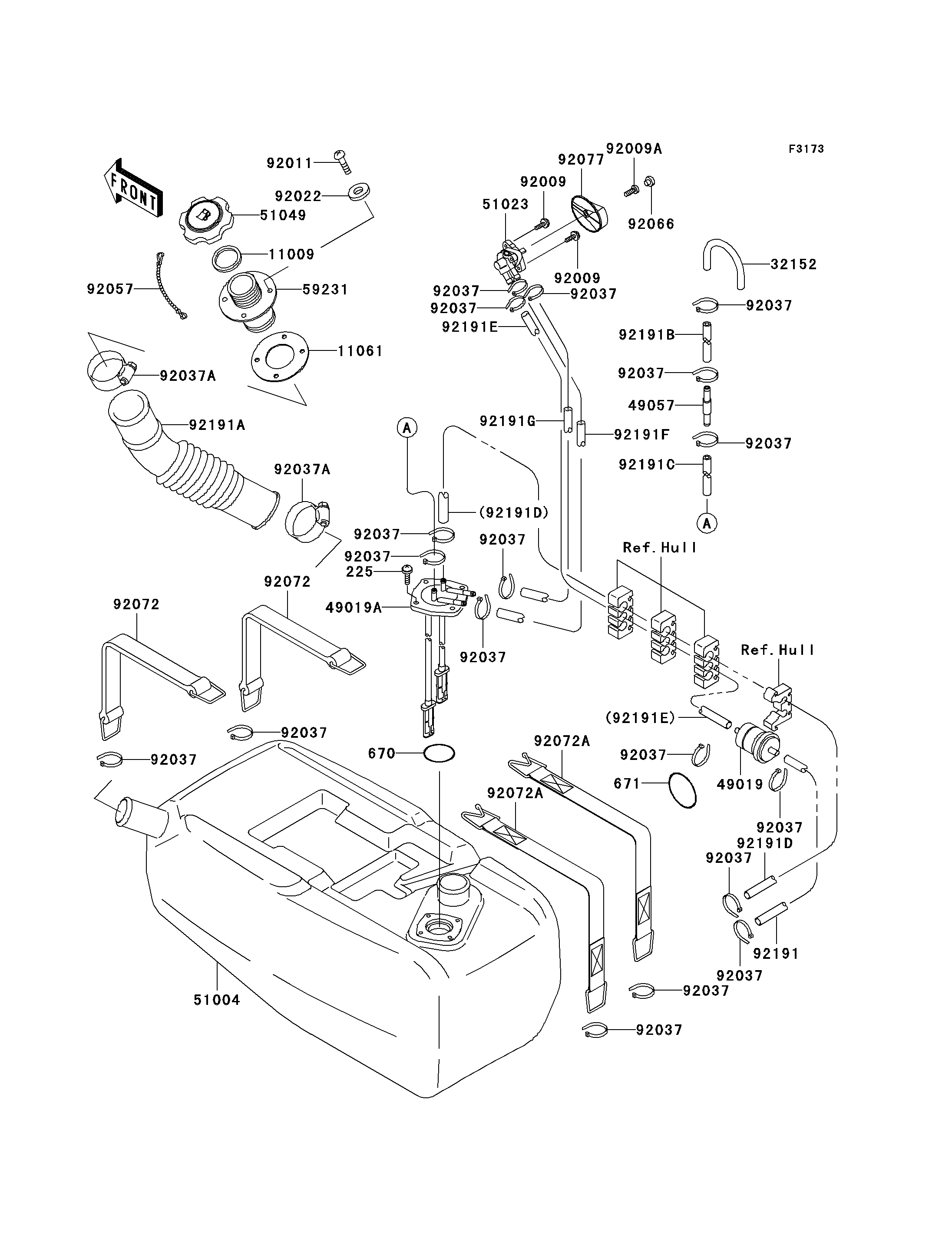

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
225
670
671
11009
11061
32152
49019
49019A
49057
51004
51023
51049
59231
92009
92009
92009A
92011
92022
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037A
92037A
92057
92066
92072
92072
92072A
92072A
92077
92191
92191A
92191B
92191C
92191D
92191E
92191F
92191G
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-PAN-WSP-CROS,5X20 | 225 | 225R0520 | 4 | ||
| O RING,36MM | 670 | 670B3036 | 1 | ||
| O RING,65MM | 671 | 671B2565 | 1 | ||
| GASKET,TANK CAP | 11009 | 11009-3020 | 1 | ||
| GASKET | 11061 | 11061-3701 | 1 | ||
| PIPE | 32152 | 32152-3705 | 1 | ||
| FILTER-FUEL | 49019 | 49019-3712 | 1 | ||
| FILTER-FUEL | 49019A | 49019-3718 | 1 | ||
| VALVE-RELIEF | 49057 | 49057-3707 | 1 | ||
| TANK-FUEL | 51004 | 51004-3721 | 1 | ||
| TAP-ASSY,FUEL | 51023 | 51023-3736 | 1 | ||
| CAP-TANK,FUEL | 51049 | 51049-3714 | 1 | ||
| FILLER,FUEL TANK | 59231 | 59231-3716 | 1 | ||
| SCREW,5X16 | 92009 | 92009-3789 | 2 | ||
| SCREW,4X12 | 92009A | 92009-3838 | 1 | ||
| SCREW | 92011 | 92011-562 | 4 | ||
| WASHER | 92022 | 92022-563 | 4 | ||
| CLAMP | 92037 | 92037-1173 | 18 | ||
| CLAMP | 92037A | 92037-3009 | 2 | ||
| CHAIN,COVER,L=100 | 92057 | 92057-3704 | 1 | ||
| PLUG,FUEL&CHOKE KNOB,F.BLACK | 92066 | 92066-3770-6Z | 1 | ||
| BAND | 92072 | 92072-3845 | 2 | ||
| BAND | 92072A | 92072-3850 | 2 | ||
| KNOB,FUEL&CHOKE,F.BLACK | 92077 | 92077-3732-6Z | 1 | ||
| TUBE,"ON",5.8X10.8X270 | 92191 | 92191-3708 | 1 | ||
| TUBE | 92191A | 92191-3735 | 1 | ||
| TUBE,5.8X10.8X1000 | 92191B | 92191-3736 | 1 | ||
| TUBE,5.8X10.8X100 | 92191C | 92191-3828 | 1 | ||
| TUBE,CARB-TANK | 92191D | 92191-3901 | 1 | ||
| TUBE,TAP-FILTER | 92191E | 92191-3930 | 1 | ||
| TUBE,TANK-TAP(ON) | 92191F | 92191-3931 | 1 | ||
| TUBE,TANK-TAP(RES) | 92191G | 92191-3932 | 1 |
