Parts Diagrams |

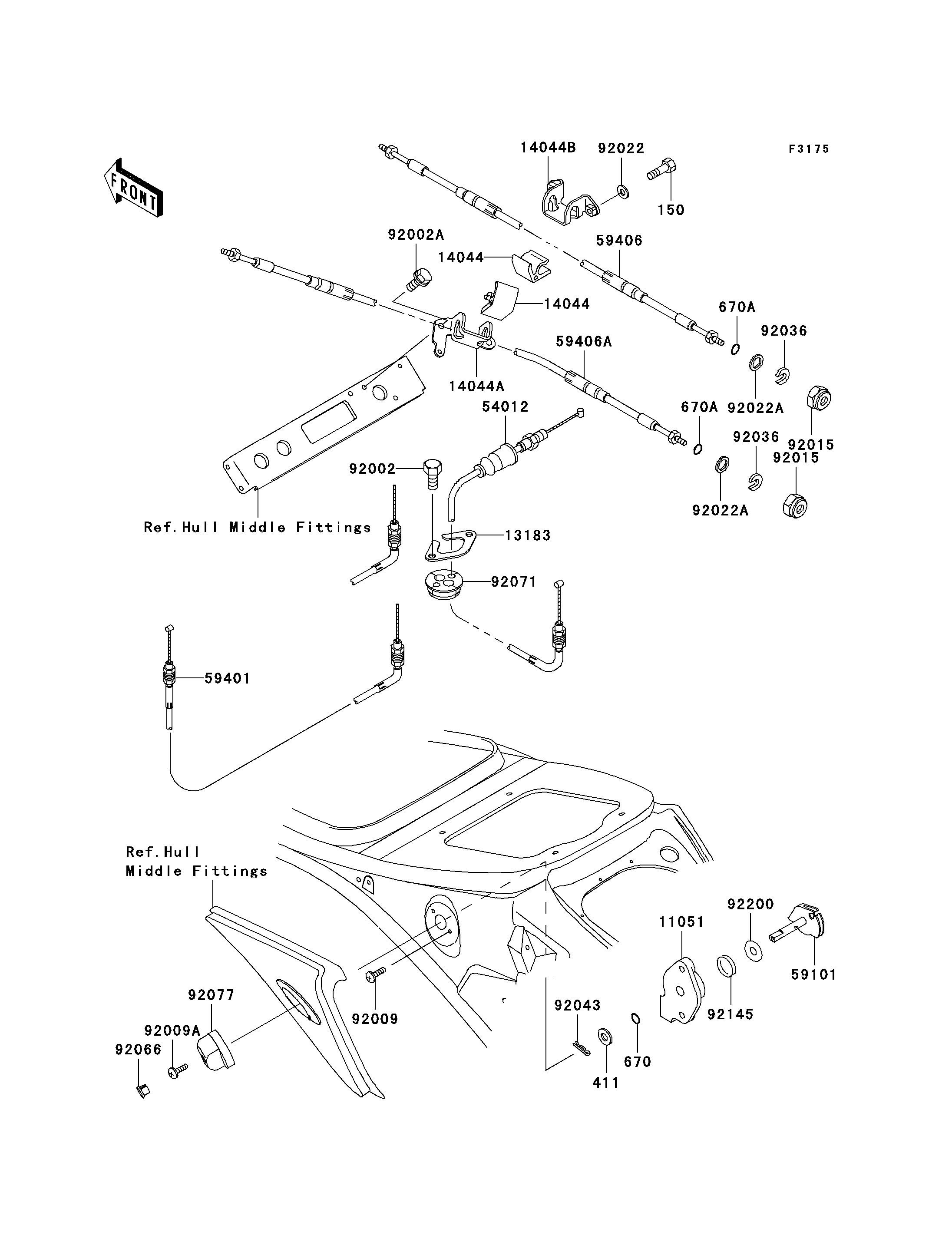

150
411
670
670A
670A
11051
13183
14044
14044
14044A
14044B
54012
59101
59401
59406
59406A
92002
92002A
92009
92009A
92015
92015
92022
92022A
92022A
92036
92036
92043
92066
92071
92077
92145
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-WS,6X18 | 150 | 150R0618 | 2 | ||
WASHER-PLAIN,8MM | 411 | 411S0800 | 1 | ||
O RING,8MM | 670 | 670B1508 | 1 | ||
O RING,11MM | 670A | 670B2011 | 2 | ||
BRACKET,STARTER CABLE | 11051 | 11051-3744 | 1 | ||
PLATE | 13183 | 13183-3810 | 1 | ||
HOLDER-CABLE,STEERING | 14044 | 14044-3714 | 2 | ||
HOLDER-CABLE,STEERING | 14044A | 14044-3717 | 1 | ||
HOLDER-CABLE,STEERING | 14044B | 14044-3731 | 1 | ||
CABLE-THROTTLE | 54012 | 54012-3756 | 1 | ||
REEL | 59101 | 59101-3715 | 1 | ||
CABLE-CHOKE | 59401 | 59401-3726 | 1 | ||
CABLE-STRG,REVERSE | 59406 | 59406-3749 | 1 | ||
CABLE-STRG | 59406A | 59406-3778 | 1 | ||
BOLT,6X16 | 92002 | 92002-3728 | 2 | ||
BOLT,6X20 | 92002A | 92002-3755 | 2 | ||
SCREW,5X16 | 92009 | 92009-3789 | 2 | ||
SCREW,4X12 | 92009A | 92009-3838 | 1 | ||
NUT,20MM | 92015 | 92015-526 | 2 | ||
WASHER,6.5X20X1.5 | 92022 | 92022-3710 | 2 | ||
WASHER | 92022A | 92022-535 | 2 | ||
RING-SNAP | 92036 | 92036-501 | 2 | ||
PIN | 92043 | 92043-3752 | 1 | ||
PLUG,FUEL&CHOKE KNOB,F.BLACK | 92066 | 92066-3770-6Z | 1 | ||
GROMMET,HARNESS | 92071 | 92071-3790 | 1 | ||
KNOB,FUEL&CHOKE,F.BLACK | 92077 | 92077-3732-6Z | 1 | ||
SPRING | 92145 | 92145-3712 | 1 | ||
WASHER,8.5X34X0.5 | 92200 | 92200-3770 | 1 |
BOLT-WS,6X18 | |
REF # | 150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER-PLAIN,8MM | |
REF # | 411 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
O RING,8MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
O RING,11MM | |
REF # | 670A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET,STARTER CABLE | |
REF # | 11051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE | |
REF # | 13183 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-CABLE,STEERING | |
REF # | 14044 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER-CABLE,STEERING | |
REF # | 14044A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-CABLE,STEERING | |
REF # | 14044B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CABLE-THROTTLE | |
REF # | 54012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
REEL | |
REF # | 59101 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CABLE-CHOKE | |
REF # | 59401 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CABLE-STRG,REVERSE | |
REF # | 59406 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CABLE-STRG | |
REF # | 59406A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X16 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X20 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,5X16 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,4X12 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,20MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,6.5X20X1.5 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92036 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,FUEL&CHOKE KNOB,F.BLACK | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GROMMET,HARNESS | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
KNOB,FUEL&CHOKE,F.BLACK | |
REF # | 92077 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,8.5X34X0.5 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
