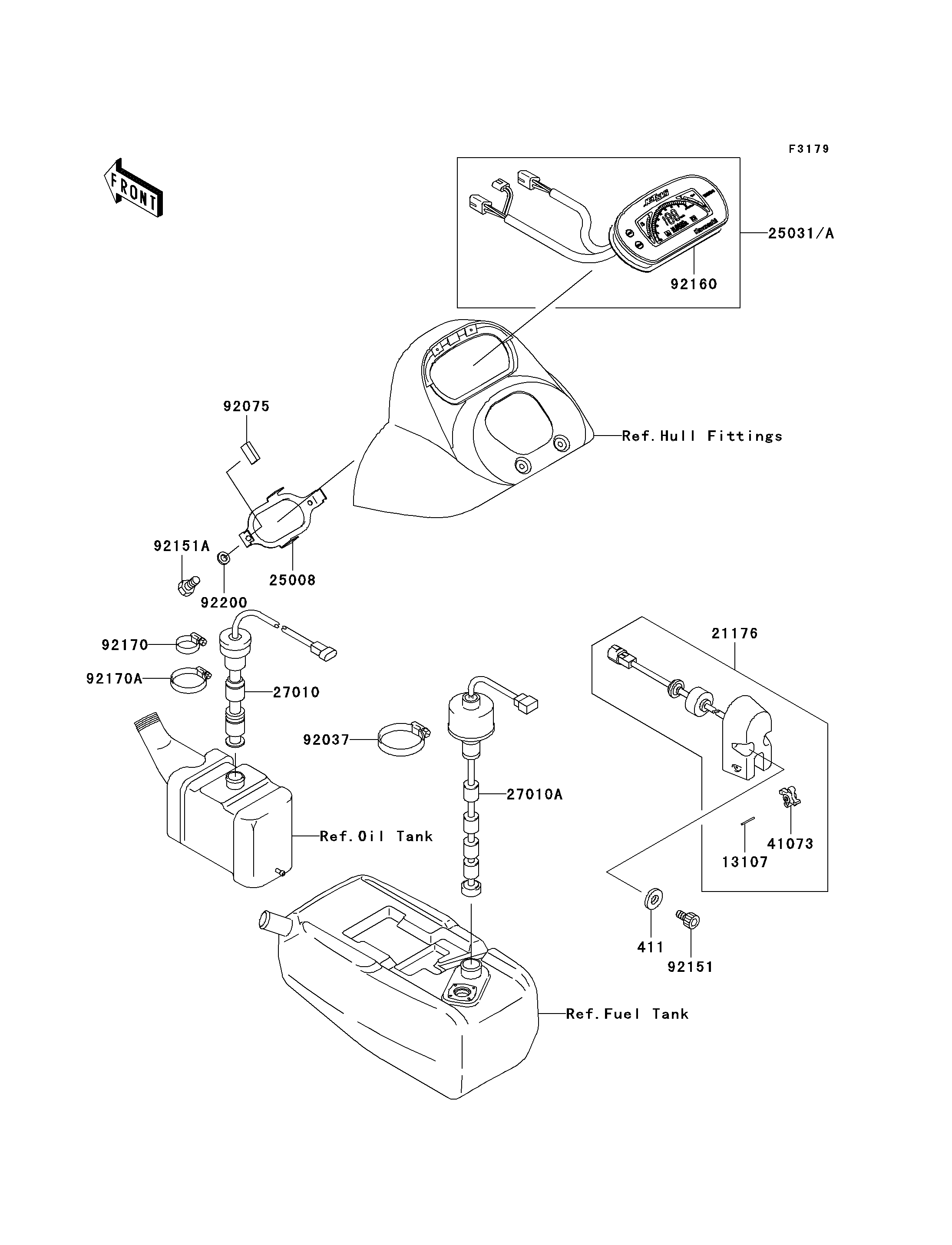

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN,6MM 411 411S0600 2
SHAFT 13107 13107-3754 1
SENSOR,SPEEDOMETER,J.WHITE 21176 21176-3753-8U 1
BRACKET-METER 25008 25008-3709 1
SWITCH,OIL LEVEL 27010 27010-3753 1
SWITCH,FUEL LEVEL 27010A 27010-3770 1
WHEEL-ASSY,PADDLE 41073 41073-3701 1
CLAMP 92037 92037-3009 1
DAMPER 92075 92075-1446 4
BOLT,SOCKET,6X10 92151 92151-3704 2
BOLT,5X10 92151A 92151-3707 2
DAMPER,METER 92160 92160-3881 1
CLAMP 92170 92170-3718 1
CLAMP 92170A 92170-3734 1
WASHER,5.9X16X1.5 92200 92200-3714 2
METER-ASSY,MILE 25031 25031-3731 1 US
METER-ASSY,KM 25031A 25031-3732 1 CN
