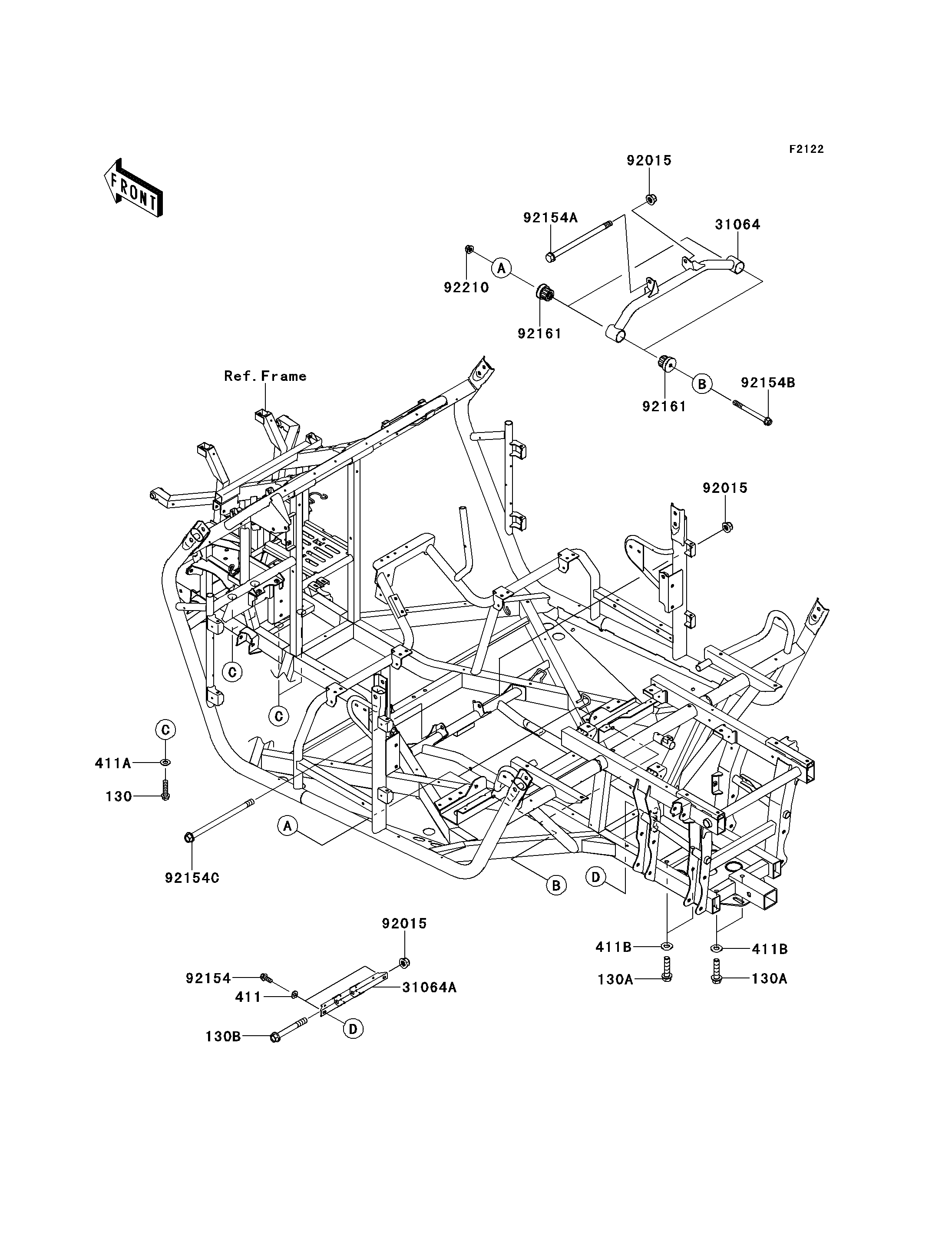

Parts Diagrams |
130
130A
130A
130B
411
411A
411B
411B
31064
31064A
92015
92015
92015
92154
92154A
92154B
92154C
92161
92161
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,10X40 | 130 | 130BA1040 | 4 | ||
| BOLT-FLANGED,12X50 | 130A | 130BA1250 | 4 | ||
| BOLT-FLANGED,12X95 | 130B | 130BA1295 | 1 | ||
| WASHER-PLAIN,8MM | 411 | 411AA0800 | 2 | ||
| WASHER-PLAIN,10MM | 411A | 411AA1000 | 4 | ||
| WASHER-PLAIN,12MM | 411B | 411AA1200 | 4 | ||
| PIPE-COMP,RR FRAME | 31064 | 31064-0621 | 1 | ||
| PIPE-COMP,RR GEARCASE MOUNT | 31064A | 31064-0626 | 1 | ||
| NUT,LOCK,FLANGED,12MM | 92015 | 92015-1433 | 3 | ||
| BOLT,FLANGED,8X20 | 92154 | 92154-1130 | 2 | ||
| BOLT,FLANGED,12X190 | 92154A | 92154-1131 | 1 | ||
| BOLT,FLANGED,10X105 | 92154B | 92154-1132 | 2 | ||
| BOLT,FLANGED,12X200 | 92154C | 92154-1133 | 1 | ||
| DAMPER | 92161 | 92161-0423 | 4 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-0276 | 2 |
| BOLT-FLANGED,10X40 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,12X50 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,12X95 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN,8MM | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN,10MM | |
| REF # | 411A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN,12MM | |
| REF # | 411B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIPE-COMP,RR FRAME | |
| REF # | 31064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-COMP,RR GEARCASE MOUNT | |
| REF # | 31064A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,12MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X20 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,12X190 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X105 | |
| REF # | 92154B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,12X200 | |
| REF # | 92154C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,10MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
