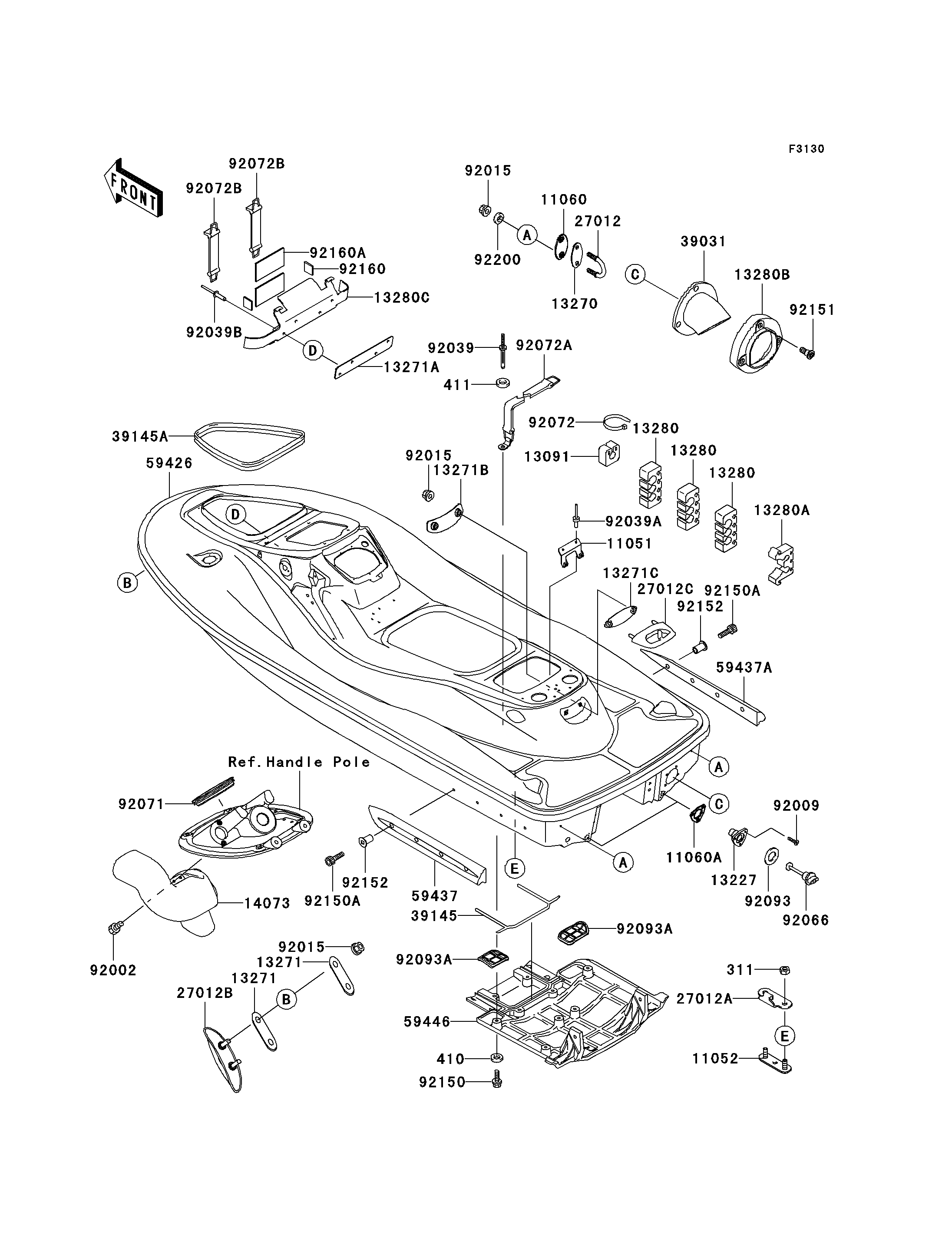

2004 900 STX - Hull(E1)

DOWNLOAD PDF
SELECT A NEW PART
11051
11051
11052
11052
11060
11060
11060A
11060A
13091
13091
13227
13227
13270
13270
13271
13271
13271
13271
13271A
13271A
13271B
13271B
13271C
13271C
13280
13280
13280
13280
13280
13280
13280A
13280A
13280B
13280B
13280C
13280C
14073
14073
27012
27012
27012A
27012A
27012B
27012B
27012C
27012C
39031
39031
39145
39145
39145A
39145A
59426
59426
59437
59437
59437A
59437A
59446
59446
92002
92002
92009
92009
92015
92015
92015
92015
92015
92015
92039
92039
92039A
92039A
92039B
92039B
92066
92066
92071
92071
92072
92072
92072A
92072A
92072B
92072B
92072B
92072B
92093
92093
92093A
92093A
92093A
92093A
311
311
410
410
411
411
92150
92150
92150A
92150A
92150A
92150A
92151
92151
92152
92152
92152
92152
92160
92160
92160A
92160A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BREATHER-BILGE 11051 11051-3802 1
BRACKET,RR DUCT 11052 11052-3712 1
GASKET,U HOOK,RR 11060 11060-3800 2
GASKET,DRAIN PLUG 11060A 11060-3801 2
HOLDER 13091 13091-3780 1
HOUSING,DRAIN PLUG,J.WHITE 13227 13227-3721-8U 2
PLATE 13270 13270-3860 2
PLATE 13271 13271-3724 2
PLATE,FIRE EXTINGUISHER 13271A 13271-3775 1
PLATE,REAR TOWING HOOK 13271B 13271-3859 1
PLATE 13271C 13271-3889 1
HOLDER 13280 13280-3703 3
HOLDER,FUEL FILTER 13280A 13280-3705 1
HOLDER,TAIL PIPE CAP 13280B 13280-3715 1
HOLDER,FIRE EXTINGUISHER 13280C 13280-3740 1
DUCT 14073 14073-3801 1
HOOK 27012 27012-3797 2
HOOK 27012A 27012-3816 1
HOOK,BOW,F.BLACK 27012B 27012-3822-6Z 1
HOOK,REAR TOWING,F.BLACK 27012C 27012-3836-6Z 1
CAP-END,TAIL PIPE 39031 39031-3703 1
TRIM-SEAL,JET PUMP COVER 39145 39145-3768 1
TRIM-SEAL,L=1412 39145A 39145-3787 1
HULL-COMP,J.WHITE 59426 59426-3938-8C 1
STABILIZER,LH,F.BLACK 59437 59437-3733-6Z 1
STABILIZER,RH,F.BLACK 59437A 59437-3734-6Z 1
COVER-JET PUMP 59446 59446-3758 1
BOLT,6X20 92002 92002-3755 2
SCREW,TAPPING,4X16 92009 92009-3849 6
NUT,FLANGED,8MM 92015 92015-3709 8
RIVET 92039 92039-3741 1
RIVET 92039A 92039-3755 2
RIVET 92039B 92039-3783 4
PLUG,RR,DRAIN,J.WHITE 92066 92066-3783-8U 2
GROMMET 92071 92071-3812 1
BAND,L=188 92072 92072-1239 1
BAND,314X18 92072A 92072-3814 1
BAND,TOOL CASE 92072B 92072-3859 2
SEAL 92093 92093-3720 2
SEAL 92093A 92093-3765 2
NUT-HEX,6MM 311 311R0600 2
WASHER-PLAIN-SMALL,6MM 410 410S0600 10
WASHER-PLAIN,5MM 411 411S0500 1
BOLT,SOCKET,6X18 92150 92150-3775 10
BOLT,SOCKET,6X30 92150A 92150-3822 8
BOLT,SOCKET,M6,SHOULDER 92151 92151-3746 3
COLLAR 92152 92152-3715 8
DAMPER,25X25 92160 92160-3864 2
DAMPER 92160A 92160-3913 2
WASHER 92200 92200-3779 4
