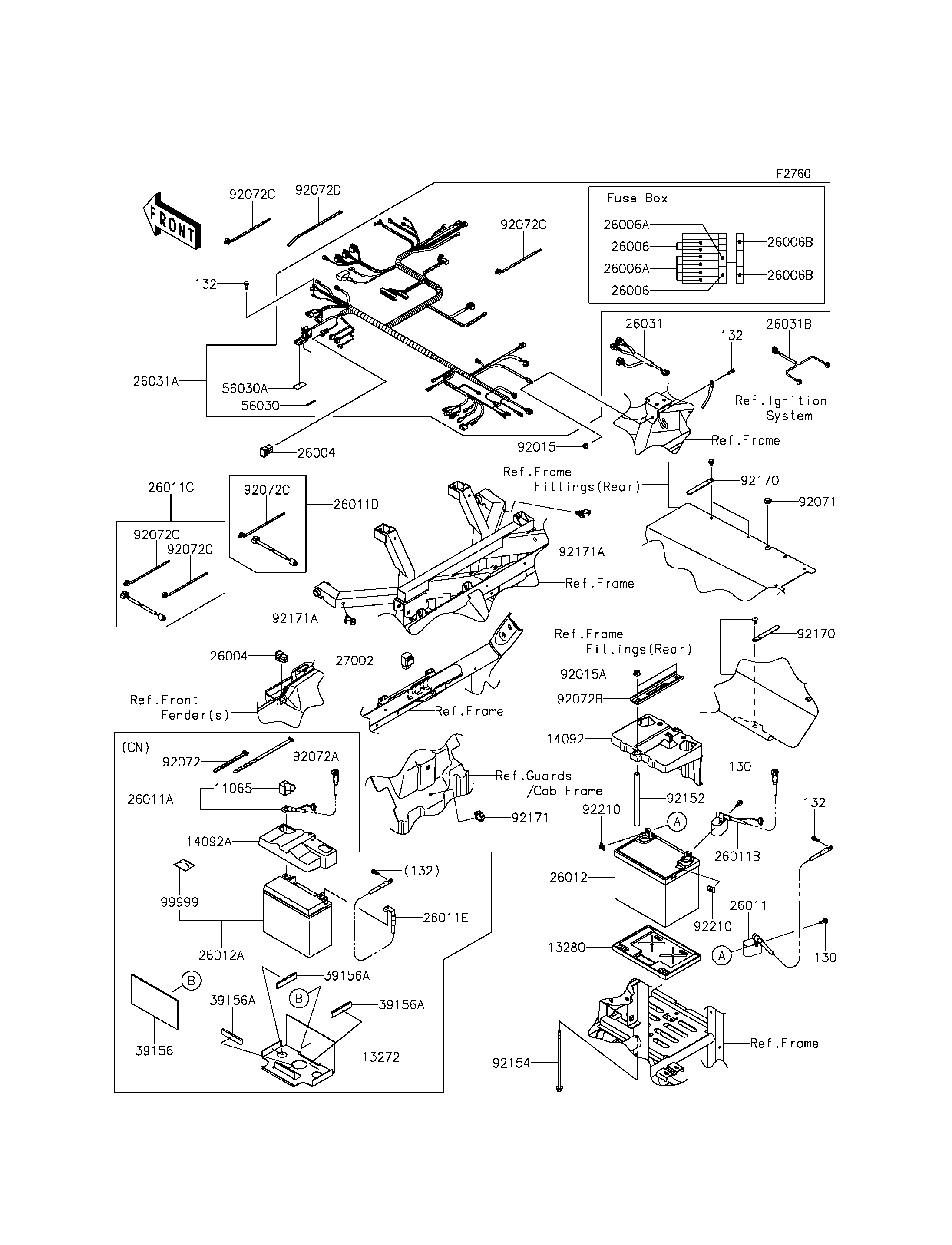

2014 TERYX® - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
13280
13280
26004
26004
26004
26004
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26006B
26006B
26006B
26006B
26011C
26011C
26011D
26011D
26031
26031
26031A
26031A
26031B
26031B
27002
27002
56030
56030
56030A
56030A
92015
92015
92015A
92015A
92071
92071
132
132
132
132
132
132
92072B
92072B
92072C
92072C
92072C
92072C
92072C
92072C
92072C
92072C
92072C
92072C
92072D
92072D
92152
92152
92154
92154
92170
92170
92170
92170
92171
92171
92171A
92171A
92171A
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,BATTERY 13280 13280-0709 1
FUSE-ASSY,40A 26004 26004-1093 2
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 3
FUSE,MINI BLADE,10A,RED 26006A 26006-0009 5
FUSE,MINI BLADE,30A,GREEN 26006B 26006-1080 2
WIRE-LEAD,HEAD LAMP,LH 26011C 26011-0842 1
WIRE-LEAD,HEAD LAMP,RH 26011D 26011-0843 1
HARNESS,SUB,TPS 26031 26031-1264 1
HARNESS,MAIN 26031A 26031-1441 1
HARNESS,SUB,TAIL 26031B 26031-1563 1
RELAY-ASSY 27002 27002-1062 1
LABEL,FUSE BOX,30A 56030 56030-0404 1
LABEL,FUSE BOX 56030A 56030-0703 1
NUT,LOCK,FLANGED,6MM 92015 92015-1339 1
NUT,FLANGED,8MM 92015A 92015-1406 2
GROMMET,10X20X6 92071 92071-0733 1
BOLT-FLANGED-SMALL,6X16 132 132BA0616 3
BAND 92072B 92072-0707 1
BAND 92072C 92072-1414 19
BAND,L=292.1 92072D 92072-3509 16
COLLAR,10.2X12.7X165.8 92152 92152-1555 2
BOLT,FLANGED,8X185 92154 92154-0889 2
CLAMP 92170 92170-1925 3
CLAMP,BRAKE HOSE 92171 92171-0316 1
CLAMP,DIA=13 92171A 92171-1415 2
CAP 11065 11065-0755 1 CN
PLATE,BATTERY BOTTOM 13272 13272-1322 1 CN
COVER,BATTERY 14092 14092-0753 1 US
COVER,BATTERY 14092A 14092-0978 1 CN
WIRE-LEAD,BATTERY(-) 26011 26011-0713 1 US
WIRE-LEAD,BATTERY(+) 26011A 26011-0726 1 CN
WIRE-LEAD,BATTERY(+) 26011B 26011-0802 1 US
WIRE-LEAD,BATTERY(-) 26011E 26011-0847 1 CN
BATTERY,12V 14AH 26012 26012-0107 1 US
BATTERY,YTX20L-BS,12V 18AH 26012A 26012-3730 1 CN
PAD,175X94X3 39156 39156-0837 1 CN
PAD,15X72X5 39156A 39156-0838 3 CN
BOLT-FLANGED,6X16 130 130BA0616 2 US
BAND,L=123 92072 92072-030 1 CN
BAND,L=218 92072A 92072-032 1 CN
NUT,PLATE,6MM 92210 92210-1352 2 US
BOLT NUT KIT 99999 99999-0311 1 CN
