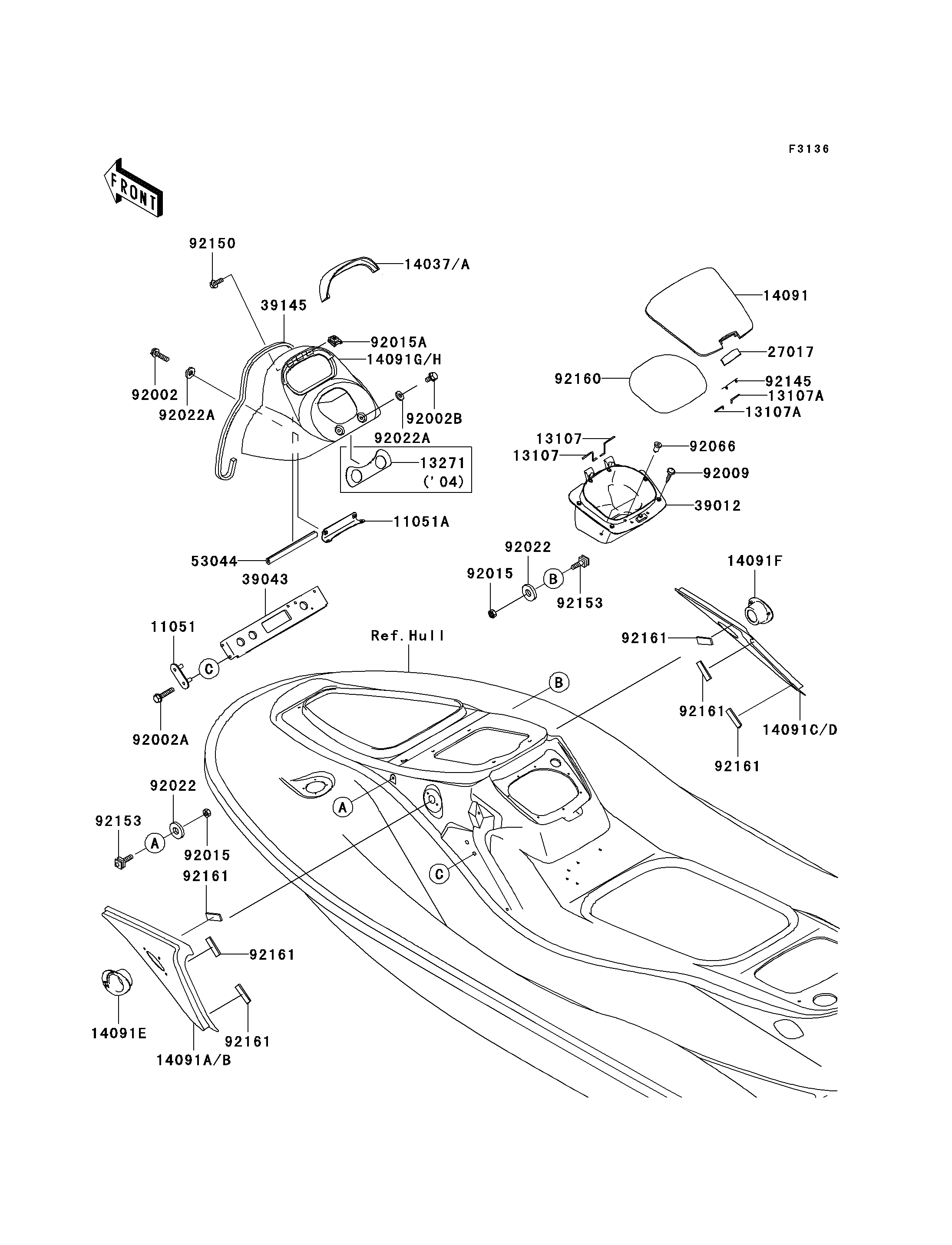

2005 900 STX - Hull Middle Fittings

DOWNLOAD PDF
SELECT A NEW PART
11051
11051A
13107
13107
13107A
13107A
14037
14091
14091A
14091C
14091E
14091F
14091H
27017
39012
39043
39145
53044
92002
92002A
92002B
92009
92015
92015
92015A
92022
92022
92022A
92022A
92066
92145
92150
92153
92153
92160
92161
92161
92161
92161
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CROSSMEMBER 11051 11051-3782 2
BRACKET 11051A 11051-3811 1
SHAFT 13107 13107-3761 2
SHAFT 13107A 13107-3769 2
SCREEN,METER,C.P.RED 14037 14037-3709-V9 1
COVER,CENTER STORAGE,J.WHITE 14091 14091-3710-8C 1
COVER,SIDE,LH,C.P.RED 14091A 14091-3713-V9 1
COVER,SIDE,RH,C.P.RED 14091C 14091-3714-V9 1
COVER,CHOKE KNOB,F.BLACK 14091E 14091-3715-6Z 1
COVER,FUEL KNOB,F.BLACK 14091F 14091-3716-6Z 1
COVER,HANDLE,C.P.RED 14091H 14091-3770-V9 1
LOCK,CENTER STORAGE 27017 27017-3725 1
CASE-STORAGE 39012 39012-3735 1
CROSSMEMBER-COMP 39043 39043-3703 1
TRIM-SEAL,L=900 39145 39145-3772 1
TRIM,L=180 53044 53044-3755 1
BOLT,6X25 92002 92002-3714 2
BOLT,6X30 92002A 92002-3726 4
BOLT,6X12 92002B 92002-3763 2
SCREW,TAPPING,5X20 92009 92009-3716 8
NUT,LOCK,5MM 92015 92015-3798 6
NUT,CLIP,5MM 92015A 92015-3830 2
WASHER,5X16X1.5 92022 92022-3041 6
WASHER,6.5X20X1.5 92022A 92022-3710 4
PLUG 92066 92066-3773 2
SPRING 92145 92145-3711 1
BOLT,5X16 92150 92150-3778 2
BOLT,5MM 92153 92153-3703 6
DAMPER 92160 92160-3933 1
DAMPER 92161 92161-3756 6
