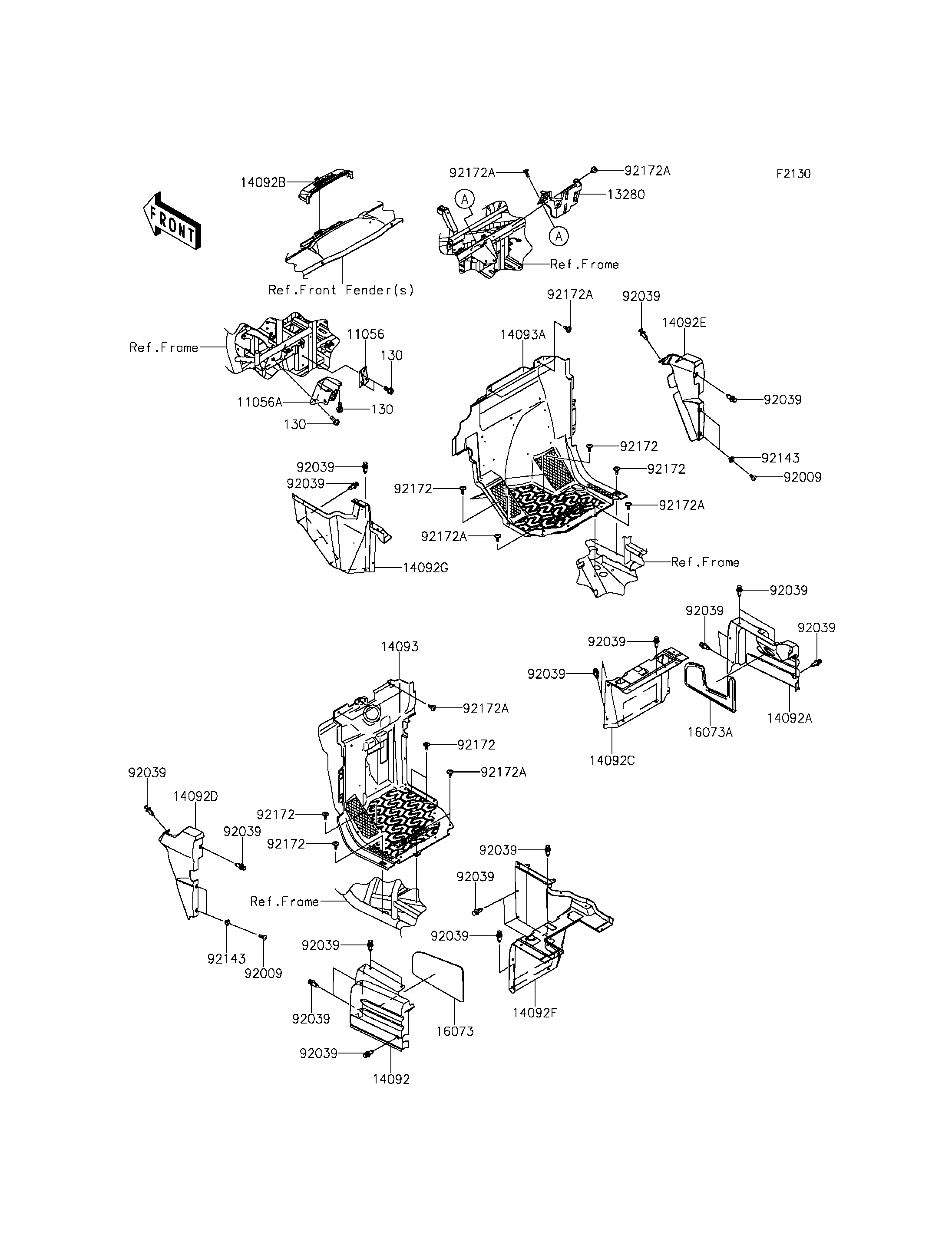

2014 TERYX® CAMO - Frame Fittings(Front)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
11056
11056A
13280
14092
14092A
14092B
14092C
14092D
14092E
14092F
14092G
14093
14093A
16073
16073A
92009
92009
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92143
92143
92172
92172
92172
92172
92172
92172
92172A
92172A
92172A
92172A
92172A
92172A
92172A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X18 130 130BA0818 5
BRACKET,THROTTLE PEDAL 11056 11056-0734 1
BRACKET,BRAKE PEDAL 11056A 11056-1431 1
HOLDER 13280 13280-0782 1
COVER,SEAT SIDE,LH 14092 14092-0720 1
COVER,SEAT SIDE,RH 14092A 14092-0721 1
COVER,FUSE BOX 14092B 14092-0724 1
COVER,FR SEAT,RH 14092C 14092-0757 1
COVER,SIDE GUARD,LH,CAMO 14092D 14092-0804-16P 1
COVER,SIDE GUARD,RH,CAMO 14092E 14092-0805-16P 1
COVER,FR SEAT,LH 14092F 14092-1082 1
COVER,FR SEAT,RH,CNT 14092G 14092-1083 1
COVER,FR FLOOR,LH 14093 14093-5137 1
COVER,FR FLOOR,RH 14093A 14093-5138 1
INSULATOR,SEAT SIDE,LH 16073 16073-0810 1
INSULATOR,SEAT SIDE,RH 16073A 16073-0811 1
SCREW,TAPPING,6X16 92009 92009-1166 4
RIVET 92039 92039-1229 28
COLLAR 92143 92143-1057 4
SCREW,6X16 92172 92172-0711 8
SCREW,6X16 92172A 92172-0826 11
