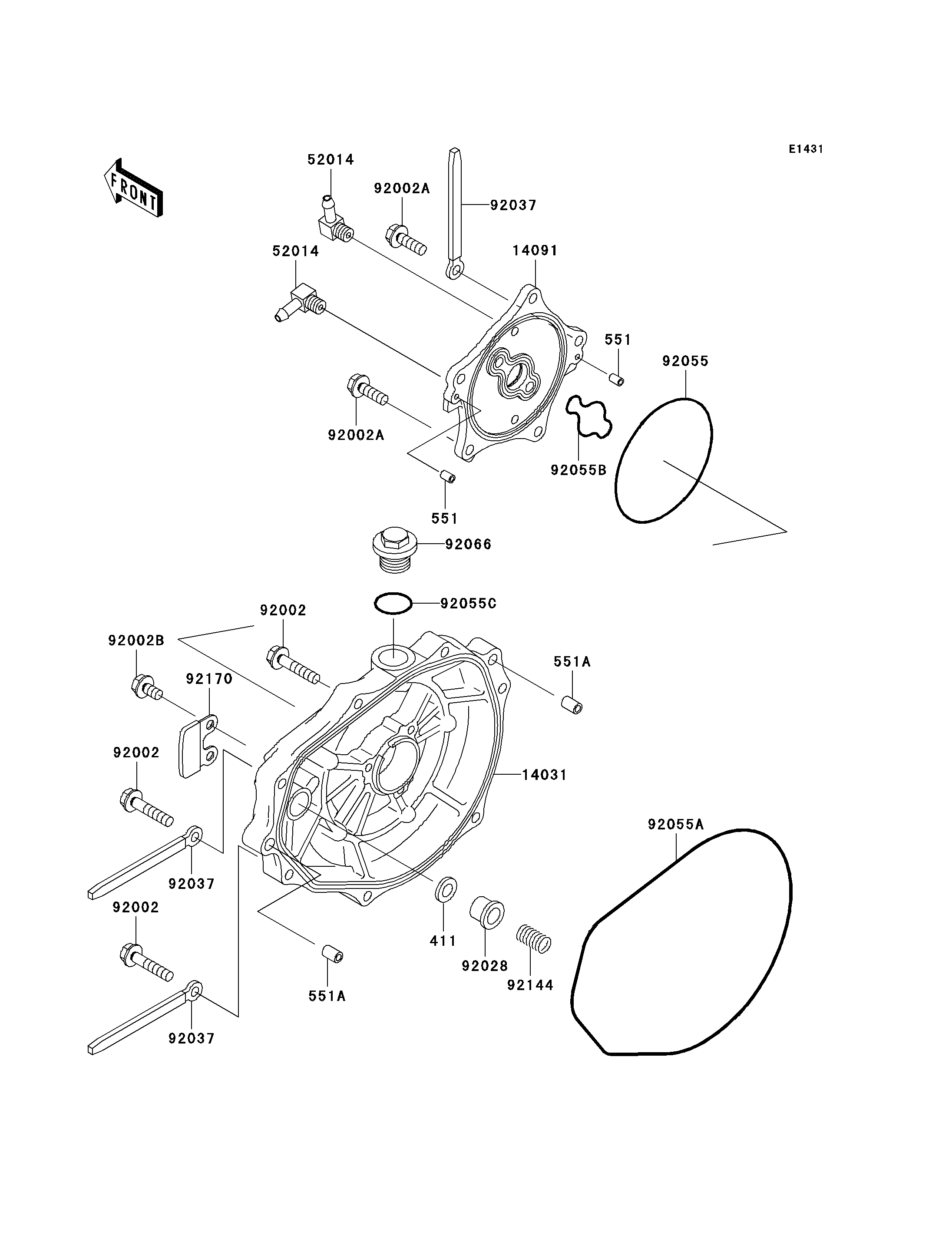

2006 900 STX - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
411
551
551
551A
551A
14031
14091
52014
52014
92002
92002
92002
92002A
92002A
92002B
92028
92037
92037
92037
92055
92055A
92055B
92055C
92066
92144
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN,5MM 411 411S0500 1
PIN-DOWEL 551 551R0408 2
PIN-DOWEL 551A 551R0812 2
COVER-GENERATOR 14031 14031-3729 1
COVER 14091 14091-3711 1
ELBOW 52014 52014-3721 2
BOLT,6X30 92002 92002-3726 7
BOLT,6X20 92002A 92002-3755 5
BOLT,6X12 92002B 92002-3763 2
BUSHING 92028 92028-3718 1
CLAMP,L=100 92037 92037-3736 3
RING-O,92X1.9 92055 92055-1284 1
RING-O,GENERATOR COVER 92055A 92055-3712 1
RING-O 92055B 92055-3739 1
RING-O 92055C 92055-515 1
PLUG 92066 92066-3739 1
SPRING 92144 92144-3728 1
CLAMP 92170 92170-3746 1
