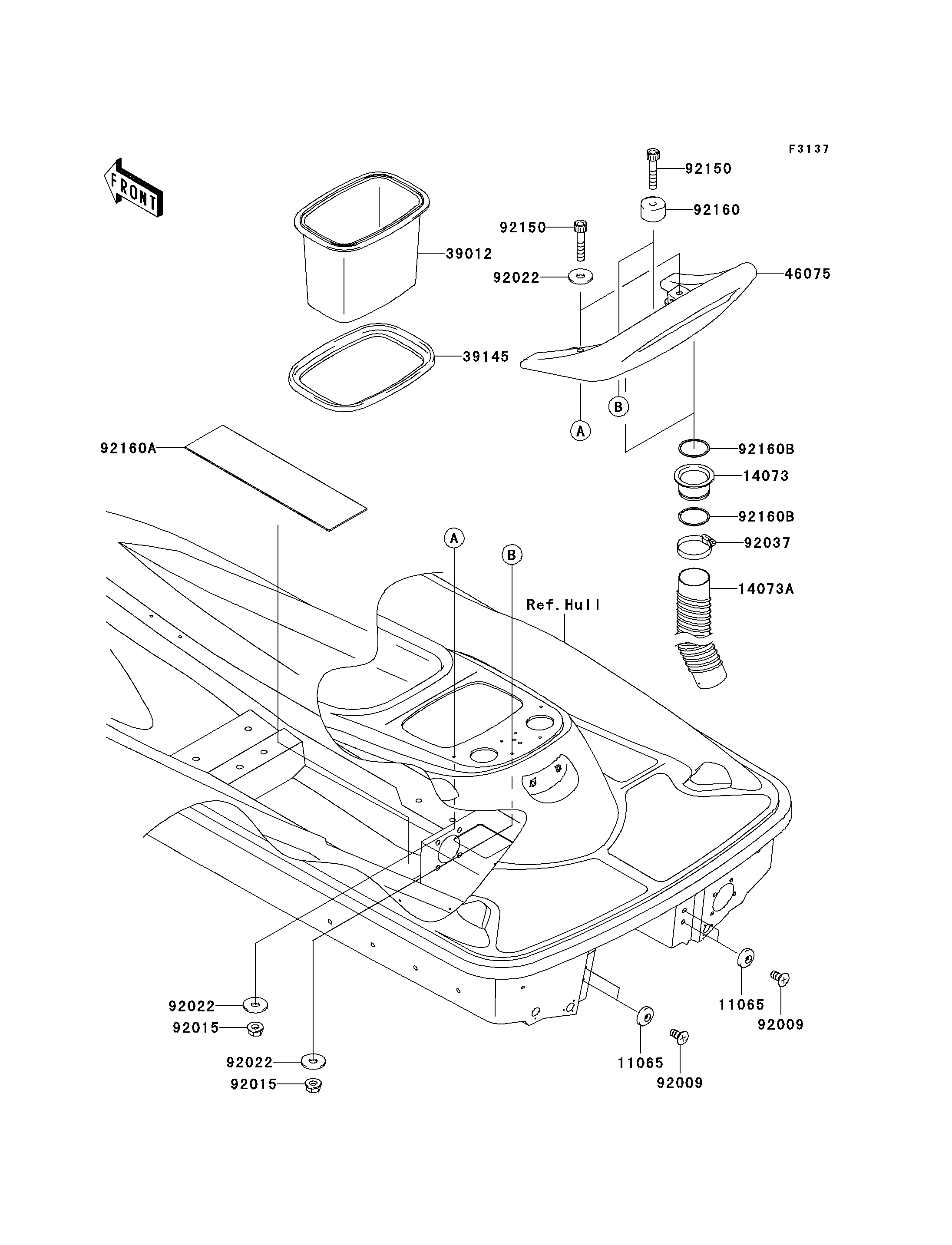

Parts Diagrams |
11065
11065
14073
14073A
39012
39145
46075
92009
92009
92015
92015
92022
92022
92022
92037
92150
92150
92160
92160A
92160B
92160B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,STEP NUT,F.BLACK | 11065 | 11065-3728-6Z | 4 | ||
| DUCT | 14073 | 14073-3798 | 2 | ||
| DUCT | 14073A | 14073-3799 | 2 | ||
| CASE-STORAGE,RR | 39012 | 39012-3720 | 1 | ||
| TRIM-SEAL,REAR STORAGE CASE | 39145 | 39145-3783 | 1 | ||
| GRIP,RR,F.BLACK | 46075 | 46075-3755-6Z | 1 | ||
| SCREW,6X12 | 92009 | 92009-3852 | 4 | ||
| NUT,6MM | 92015 | 92015-3767 | 4 | ||
| WASHER,6.5X20X1.5 | 92022 | 92022-3710 | 6 | ||
| CLAMP | 92037 | 92037-3738 | 2 | ||
| BOLT,SOCKET,6X30 | 92150 | 92150-3822 | 4 | ||
| DAMPER | 92160 | 92160-3738 | 2 | ||
| DAMPER | 92160A | 92160-3839 | 1 | ||
| DAMPER | 92160B | 92160-3910 | 4 |
