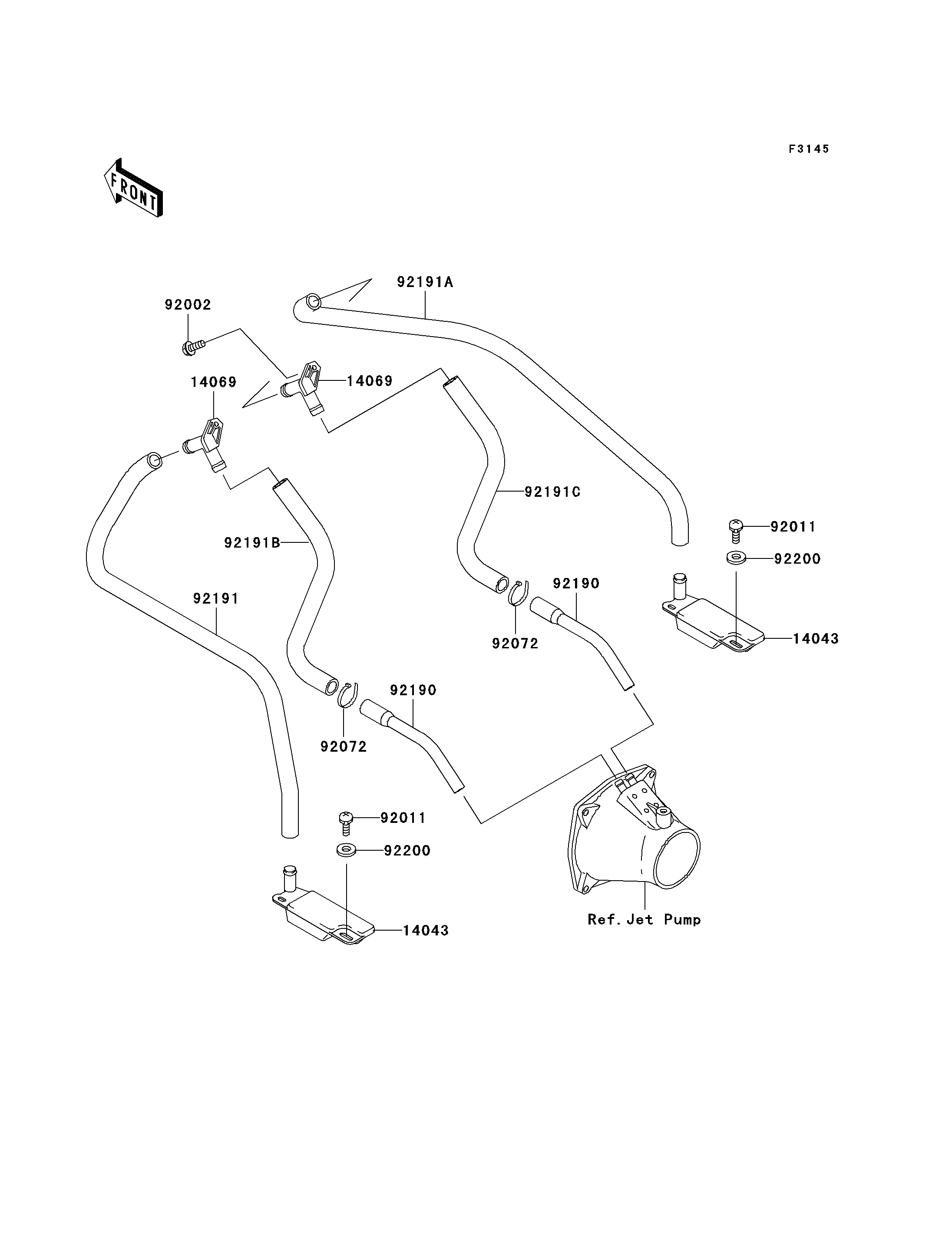

Parts Diagrams |
14043
14043
14069
14069
92002
92011
92011
92072
92072
92190
92190
92191
92191A
92191B
92191C
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER | 14043 | 14043-3708 | 2 | ||
| BREATHER | 14069 | 14069-3708 | 2 | ||
| BOLT,6X16 | 92002 | 92002-3728 | 2 | ||
| SCREW,TAPPING | 92011 | 92011-561 | 4 | ||
| BAND,L=188 | 92072 | 92072-1239 | 2 | ||
| TUBE,HULL-NOZZLE | 92190 | 92190-3971 | 2 | ||
| TUBE,FILTER-BREATHER(LH) | 92191 | 92191-3821 | 1 | ||
| TUBE,FILTER-BREATHER(RH) | 92191A | 92191-3822 | 1 | ||
| TUBE,BILGE BREATHER-HULL,LEFT | 92191B | 92191-3927 | 1 | ||
| TUBE,BILGE BREATHER-HULL,RIGHT | 92191C | 92191-3928 | 1 | ||
| WASHER,5.9X16X1.5 | 92200 | 92200-3714 | 4 |
