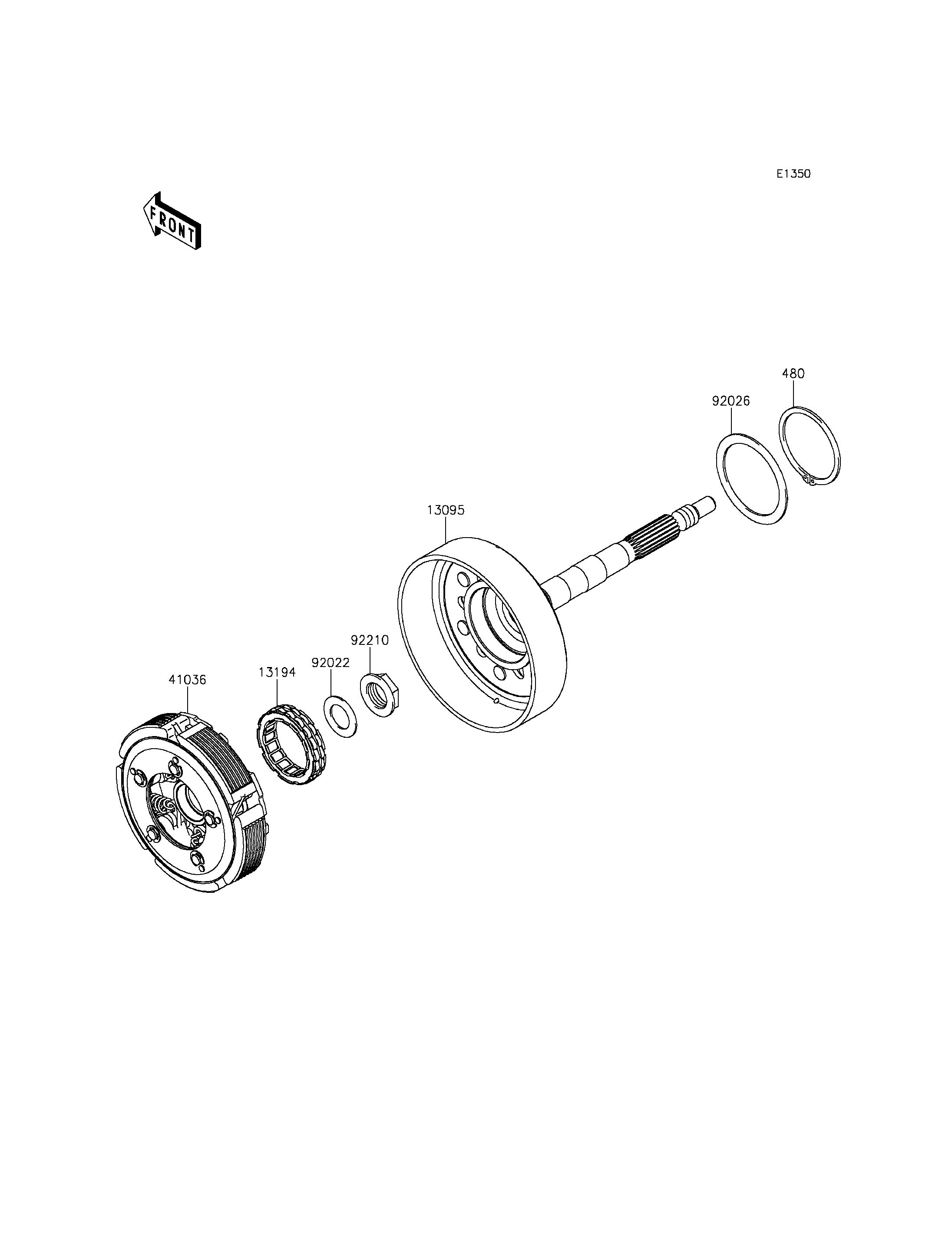

480
13095
13194
41036
92022
92026
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,60MM 480 480J6000 1
HOUSING-COMP-CLUTCH 13095 13095-0554 1
CLUTCH-ONEWAY 13194 13194-0555 1
HUB-ASSY 41036 41036-0639 1
WASHER,20.5X34X1.4 92022 92022-168 1
SPACER 92026 92026-0710 1
NUT,20MM 92210 92210-0711 1
