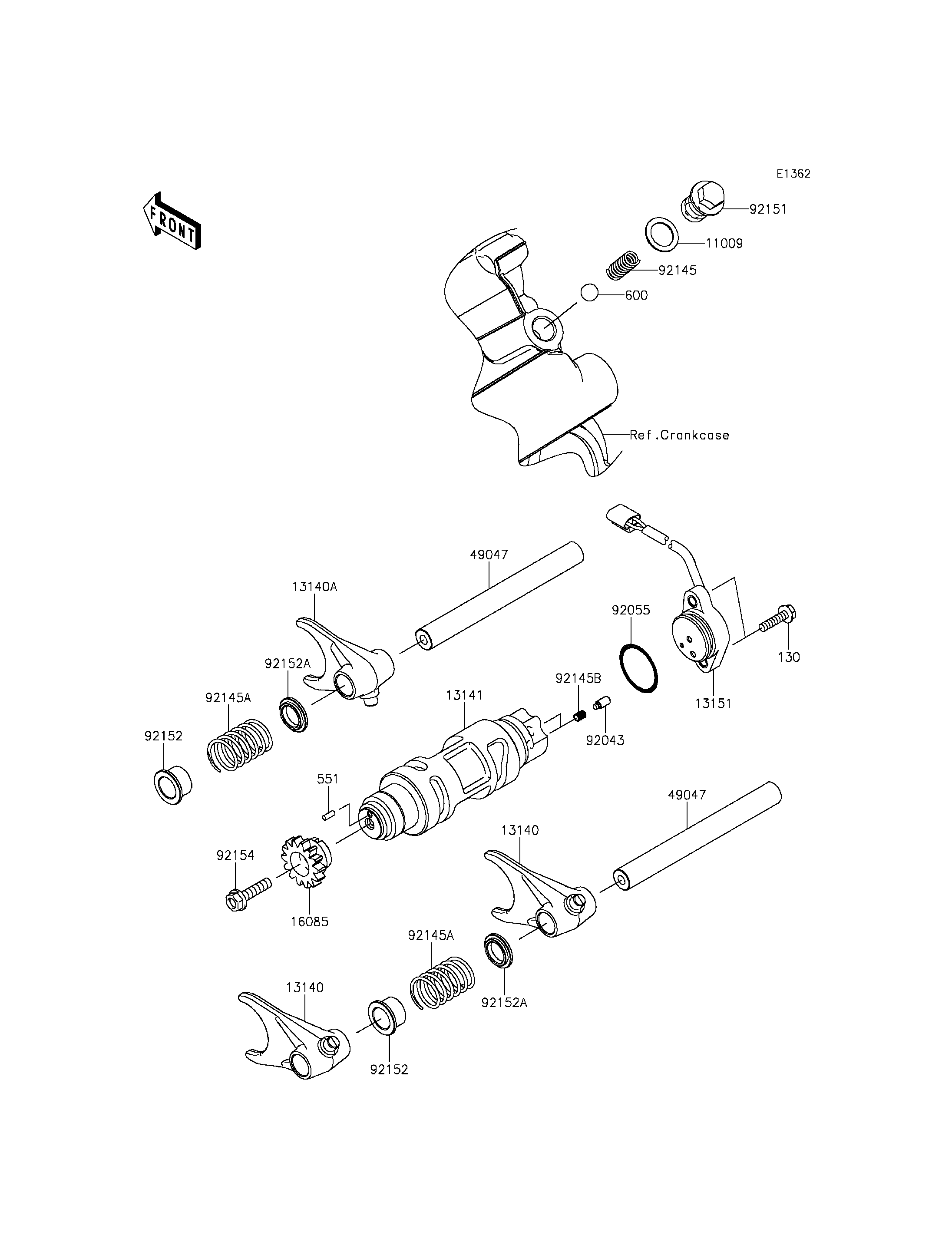

2015 TERYX4™ - Gear Change Drum/Shift Fork(s)

DOWNLOAD PDF
SELECT A NEW PART
130
551
600
11009
13140
13140
13140A
13141
13151
16085
49047
49047
92043
92055
92145
92145A
92145A
92145B
92151
92152
92152
92152A
92152A
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X20 130 130BA0520 2
PIN-DOWEL,3X8 551 551A0308 1
BALL-STEEL,13/32 600 600A1300 1
GASKET,15.5X22X1 11009 11009-1008 1
FORK-SHIFT,COUNTER 13140 13140-0622 2
FORK-SHIFT,INPUT 13140A 13140-0623 1
DRUM-CHANGE 13141 13141-0576 1
SWITCH-COMP,GEAR POSITION 13151 13151-0561 1
GEAR,14T 16085 16085-0589 1
ROD-SHIFT 49047 49047-0619 2
PIN 92043 92043-1654 2
RING-O,27.7X2.4 92055 92055-091 1
SPRING 92145 92145-0828 1
SPRING 92145A 92145-0898 2
SPRING 92145B 92145-1414 2
BOLT 92151 92151-1451 1
COLLAR,14X18X12.5 92152 92152-1595 2
COLLAR,14X18X4 92152A 92152-1596 2
BOLT,FLANGED,6X25 92154 92154-0707 1
