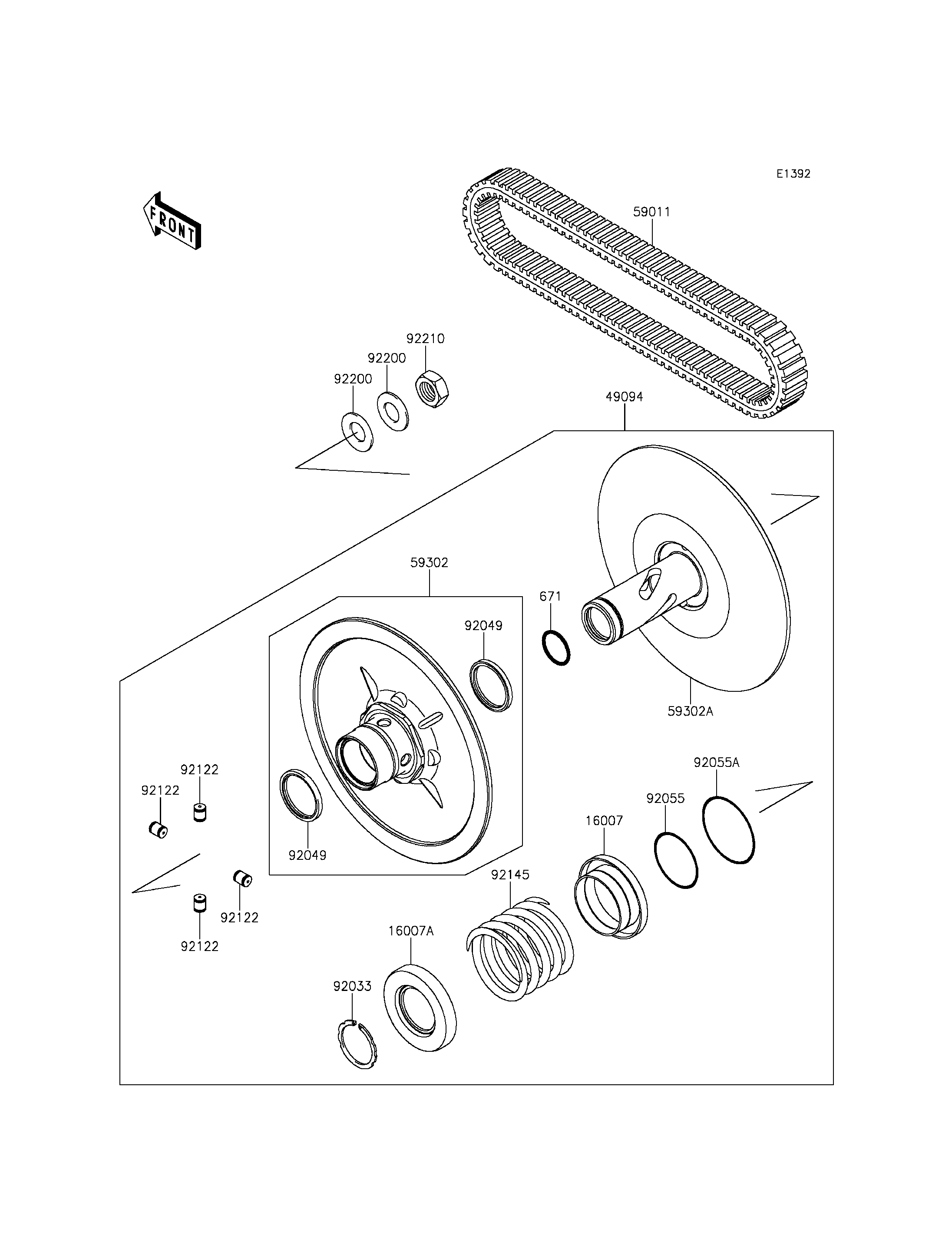

2015 TERYX4™ - Driven Converter/Drive Belt
671
16007
16007A
49094
59011
59302
59302A
92033
92049
92049
92055
92055A
92122
92122
92122
92122
92145
92200
92200
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| O RING | 671 | 671D2530 | 1 | ||
| SEAT-SPRING,MOVABLE | 16007 | 16007-0049 | 1 | ||
| SEAT-SPRING,FIXED | 16007A | 16007-0050 | 1 | ||
| CONVERTER-ASSY-DRIVEN | 49094 | 49094-0086 | 1 | ||
| BELT,CVT | 59011 | 59011-0040 | 1 | ||
| SHEAVE-COMP,MOVABLE | 59302 | 59302-0042 | 1 | ||
| SHEAVE-COMP,FIXED | 59302A | 59302-0043 | 1 | ||
| RING-SNAP | 92033 | 92033-1317 | 1 | ||
| SEAL-OIL | 92049 | 92049-1528 | 2 | ||
| RING-O,46.4X3.1 | 92055 | 92055-0752 | 1 | ||
| RING-O,59.5X2.4 | 92055A | 92055-0753 | 1 | ||
| ROLLER | 92122 | 92122-0043 | 4 | ||
| SPRING | 92145 | 92145-0959 | 1 | ||
| WASHER | 92200 | 92200-1505 | 2 | ||
| NUT,18MM | 92210 | 92210-0821 | 1 |
| O RING | |
| REF # | 671 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAT-SPRING,MOVABLE | |
| REF # | 16007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAT-SPRING,FIXED | |
| REF # | 16007A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONVERTER-ASSY-DRIVEN | |
| REF # | 49094 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BELT,CVT | |
| REF # | 59011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHEAVE-COMP,MOVABLE | |
| REF # | 59302 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHEAVE-COMP,FIXED | |
| REF # | 59302A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O,46.4X3.1 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,59.5X2.4 | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROLLER | |
| REF # | 92122 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,18MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
