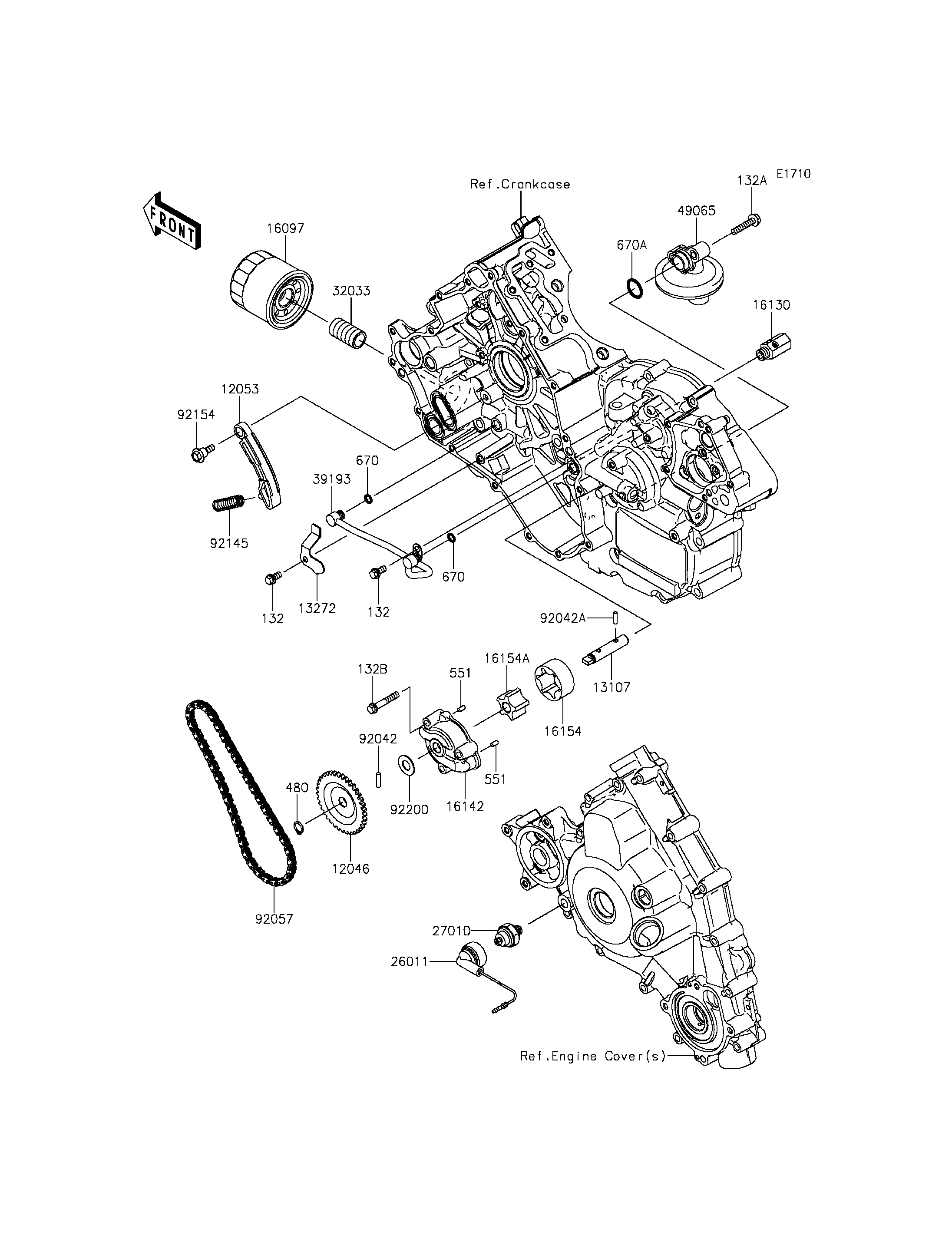

Parts Diagrams |
132
132
132A
132B
480
551
551
670
670
670A
12046
12053
13107
13272
16097
16130
16142
16154
16154A
26011
27010
32033
39193
49065
92042
92042A
92057
92145
92154
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL,6X12 | 132 | 132BA0612 | 2 | ||
BOLT-FLANGED-SMALL,6X30 | 132A | 132BA0630 | 2 | ||
BOLT-FLANGED-SMALL,6X35 | 132B | 132BA0635 | 3 | ||
CIRCLIP-TYPE-C,11MM | 480 | 480J1100 | 1 | ||
PIN-DOWEL,4X8 | 551 | 551A0408 | 2 | ||
O RING,7MM | 670 | 670D1507 | 2 | ||
O RING | 670A | 670D2018 | 1 | ||
SPROCKET,OIL PUMP,37T | 12046 | 12046-0577 | 1 | ||
GUIDE-CHAIN | 12053 | 12053-0180 | 1 | ||
SHAFT,OIL PUMP | 13107 | 13107-0718 | 1 | ||
PLATE | 13272 | 13272-0988 | 1 | ||
FILTER-ASSY-OIL | 16097 | 16097-0007 | 1 | ||
VALVE-ASSY-RELIEF | 16130 | 16130-1058 | 1 | ||
COVER-PUMP | 16142 | 16142-0704 | 1 | ||
ROTOR-PUMP,OUTER | 16154 | 16154-0706 | 1 | ||
ROTOR-PUMP,INNER | 16154A | 16154-0707 | 1 | ||
WIRE-LEAD | 26011 | 26011-0818 | 1 | ||
SWITCH,OIL PRESSURE | 27010 | 27010-1313 | 1 | ||
PIPE,OIL FILTER | 32033 | 32033-1535 | 1 | ||
PIPE-OIL | 39193 | 39193-0570 | 1 | ||
FILTER-OIL | 49065 | 49065-0710 | 1 | ||
PIN,DOWEL,4X16.8 | 92042 | 92042-029 | 1 | ||
PIN,DOWEL,4X13.8 | 92042A | 92042-030 | 1 | ||
CHAIN,DID SCR-0409 SV | 92057 | 92057-0561 | 1 | ||
SPRING | 92145 | 92145-0830 | 1 | ||
BOLT,FLANGED,6X8.3 | 92154 | 92154-0709 | 1 | ||
WASHER,11.3X23X1 | 92200 | 92200-0719 | 1 |
