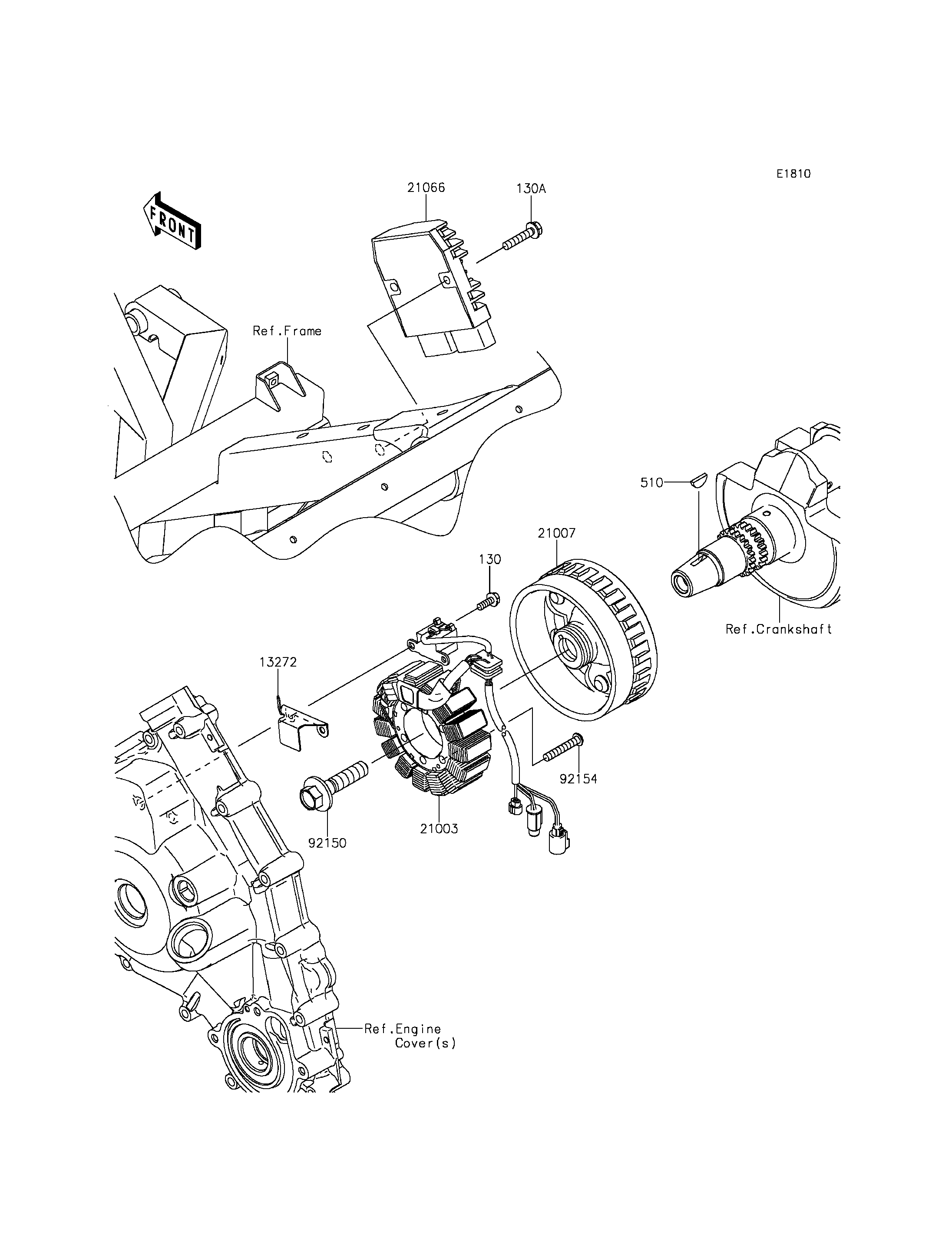

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X14 130 130BA0514 2
BOLT-FLANGED,6X30 130A 130BA0630 2
KEY-WOODRUFF 510 510A4200 1
PLATE 13272 13272-1222 1
STATOR 21003 21003-0132 1
ROTOR 21007 21007-0565 1
REGULATOR-VOLTAGE 21066 21066-0714 1
BOLT,12X50 92150 92150-1708 1
BOLT,TORX,6X35 92154 92154-1007 4
