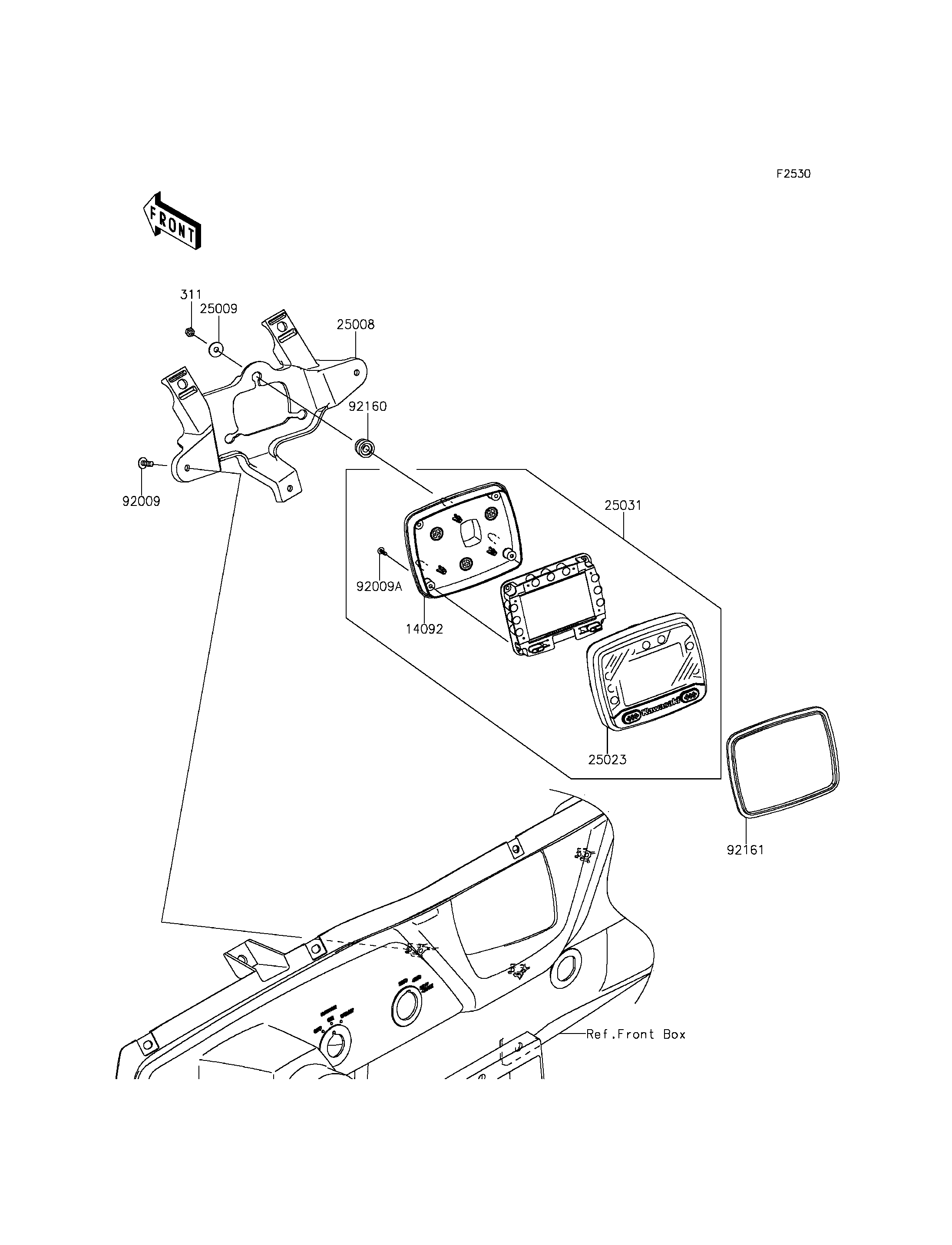

311
14092
25008
25009
25023
25031
92009
92009A
92160
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX 311 311AB0500 3
COVER,METER,LWR 14092 14092-0834 1
BRACKET-METER 25008 25008-0305 1
WASHER,5.2X16X1.2 25009 25009-004 3
COVER-METER CASE,UPP 25023 25023-0075 1
METER-ASSY,LCD 25031 25031-0471 1
SCREW,TAPPING,5X14 92009 92009-1197 3
SCREW,TAPPING,3X12 92009A 92009-1255 4
DAMPER 92160 92160-1460 3
DAMPER,METER 92161 92161-0906 1
