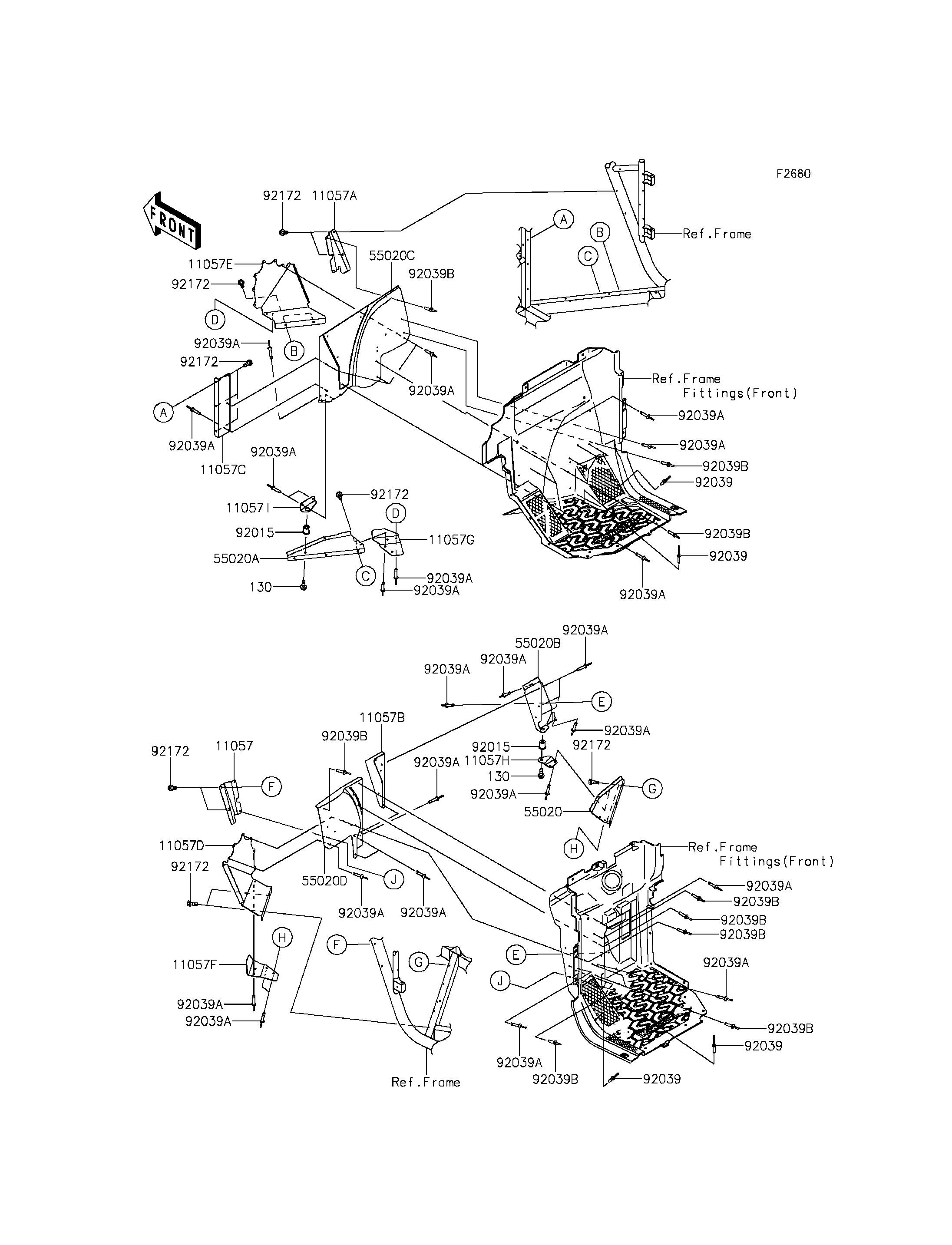

Parts Diagrams |
130
130
11057
11057A
11057B
11057C
11057D
11057E
11057F
11057G
11057H
11057I
55020
55020A
55020B
55020C
55020D
92015
92015
92039
92039
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92172
92172
92172
92172
92172
92172
92172
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X18 | 130 | 130BA0618 | 2 | ||
BRACKET | 11057 | 11057-0343 | 1 | ||
BRACKET | 11057A | 11057-0344 | 1 | ||
BRACKET | 11057B | 11057-0345 | 1 | ||
BRACKET | 11057C | 11057-0346 | 1 | ||
BRACKET | 11057D | 11057-0347 | 1 | ||
BRACKET | 11057E | 11057-0348 | 1 | ||
BRACKET | 11057F | 11057-0349 | 1 | ||
BRACKET | 11057G | 11057-0350 | 1 | ||
BRACKET | 11057H | 11057-0351 | 1 | ||
BRACKET | 11057I | 11057-0352 | 1 | ||
GUARD,FLOOR,LH,IN | 55020 | 55020-1978 | 1 | ||
GUARD,FLOOR,RH,IN | 55020A | 55020-1979 | 1 | ||
GUARD,FLOOR COVER | 55020B | 55020-1981 | 1 | ||
GUARD,FLOOR COVER | 55020C | 55020-1982 | 1 | ||
GUARD,FLOOR COVER | 55020D | 55020-1983 | 1 | ||
NUT | 92015 | 92015-1700 | 2 | ||
RIVET,4.0X17.5 | 92039 | 92039-0703 | 16 | ||
RIVET,4.8X23.3 | 92039A | 92039-0772 | 35 | ||
RIVET | 92039B | 92039-3778 | 14 | ||
SCREW,TAPPING,6X16 | 92172 | 92172-0869 | 17 |
BOLT-FLANGED,6X18 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 11057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 11057A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 11057B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 11057C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 11057D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 11057E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 11057F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 11057G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 11057H |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 11057I |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD,FLOOR,LH,IN | |
REF # | 55020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD,FLOOR,RH,IN | |
REF # | 55020A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD,FLOOR COVER | |
REF # | 55020B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD,FLOOR COVER | |
REF # | 55020C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD,FLOOR COVER | |
REF # | 55020D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RIVET,4.0X17.5 | |
REF # | 92039 |
---|---|
PART NUMBER | |
QUANTITY | 16 |
DESTINATION | |
REMARKS |
RIVET,4.8X23.3 | |
REF # | 92039A |
---|---|
PART NUMBER | |
QUANTITY | 35 |
DESTINATION | |
REMARKS |
RIVET | |
REF # | 92039B |
---|---|
PART NUMBER | |
QUANTITY | 14 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,6X16 | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 17 |
DESTINATION | |
REMARKS |
