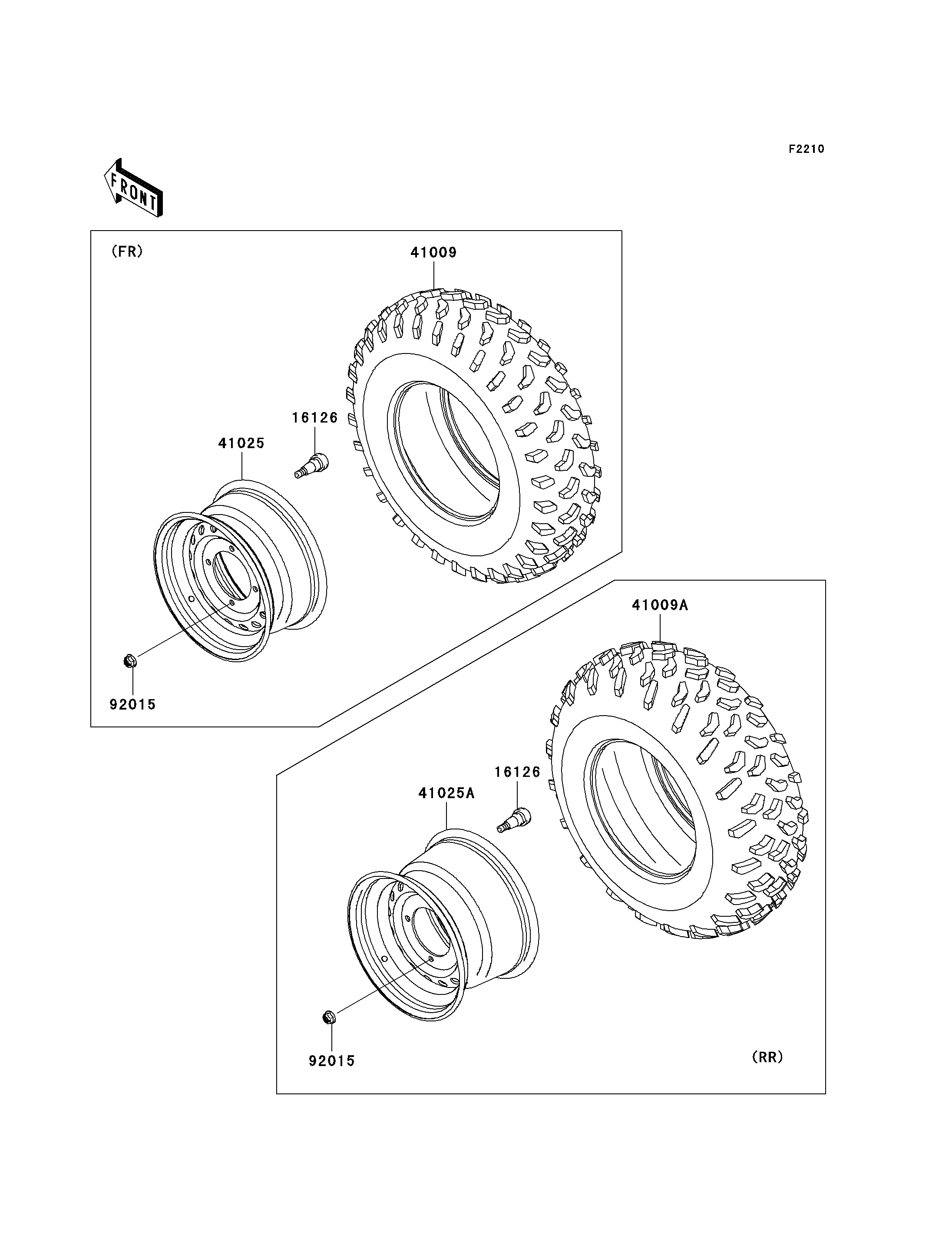

16126
16126
41009
41009A
41025
41025A
92015
92015
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE 16126 16126-4001 4
TIRE,FR,26X8.00-12,M989 41009 41009-0143 2
TIRE,RR,26X10.00-12,M990 41009A 41009-0144 2
RIM,FR,12X6.0AT,F.S.BLACK 41025 41025-0077-397 2
RIM,RR,12X8.0AT,F.S.BLACK 41025A 41025-0078-397 2
NUT,12MM 92015 92015-1706 16
