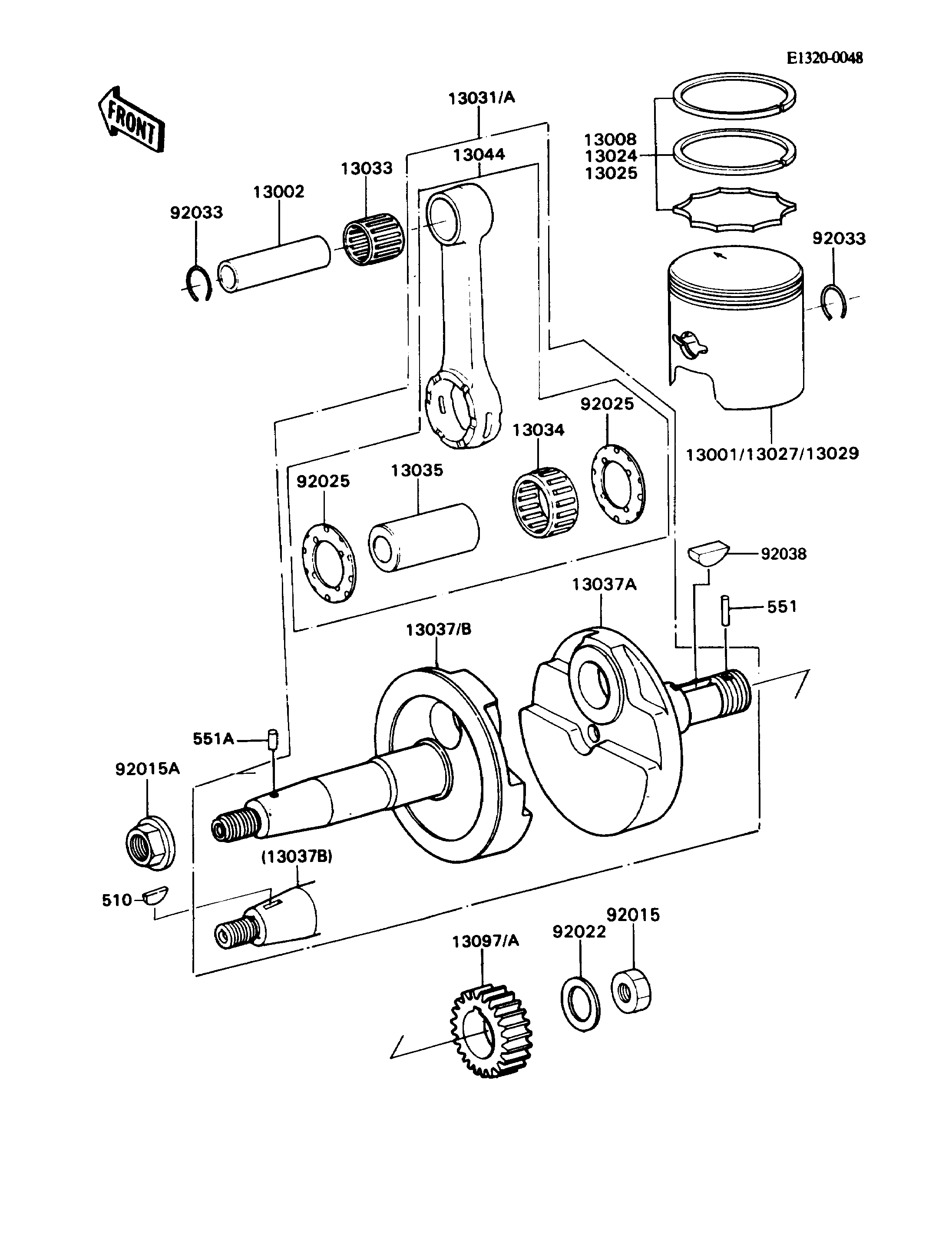

1988 KD80 - Crankshaft/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON-ENGINE,STD 13001 13001-1281 1
PIN-PISTON 13002 13002-1076 1
RING-SET-PISTON,STD 13008 13008-1123 1
RING-SET-PISTON LL,O/S 1.00 13024 13024-1084 1
RING-SET-PISTON L,O/S 0.50 13025 13025-1098 1
PISTON-ENGINE LL,O/S 1.00 13027 13027-1155 1
PISTON-ENGINE L,O/S 0.50 13029 13029-1178 1
CRANKSHAFT-COMP 13031 13031-1261 1
BEARING-SMALL END 13033 13033-1009 1
BEARING-BIG END,PK18X24X11.8X3 13034 13034-1029 1
PIN-CRANK 13035 13035-1055 1
CRANKSHAFT,LH 13037 13037-1145 1
CRANKSHAFT,RH 13037A 13037-1325 1
SET-CONNECTING ROD 13044 13044-5020 1
GEAR-PRIMARY SPUR,21T 13097 13097-1223 1 US
GEAR-PRIMARY SPUR,21T 13097A 13097-1228 1 CN
NUT,LOCK,16MM 92015 92015-072 1
NUT,FLANGED,10MM 92015A 92015-077 1
WASHER,16.3X29X1.75 92022 92022-1356 1
SHIM,CRANK SHAFT 92025 92025-1199 2
RING-SNAP,PISTON PIN 92033 92036-007 2
KEY,WOODRUFF 92038 92038-003 1
PIN-DOWEL,2X12 551 551A0212 1
PIN-DOWEL,3X6 551A 551A0306 1
