Parts Diagrams |

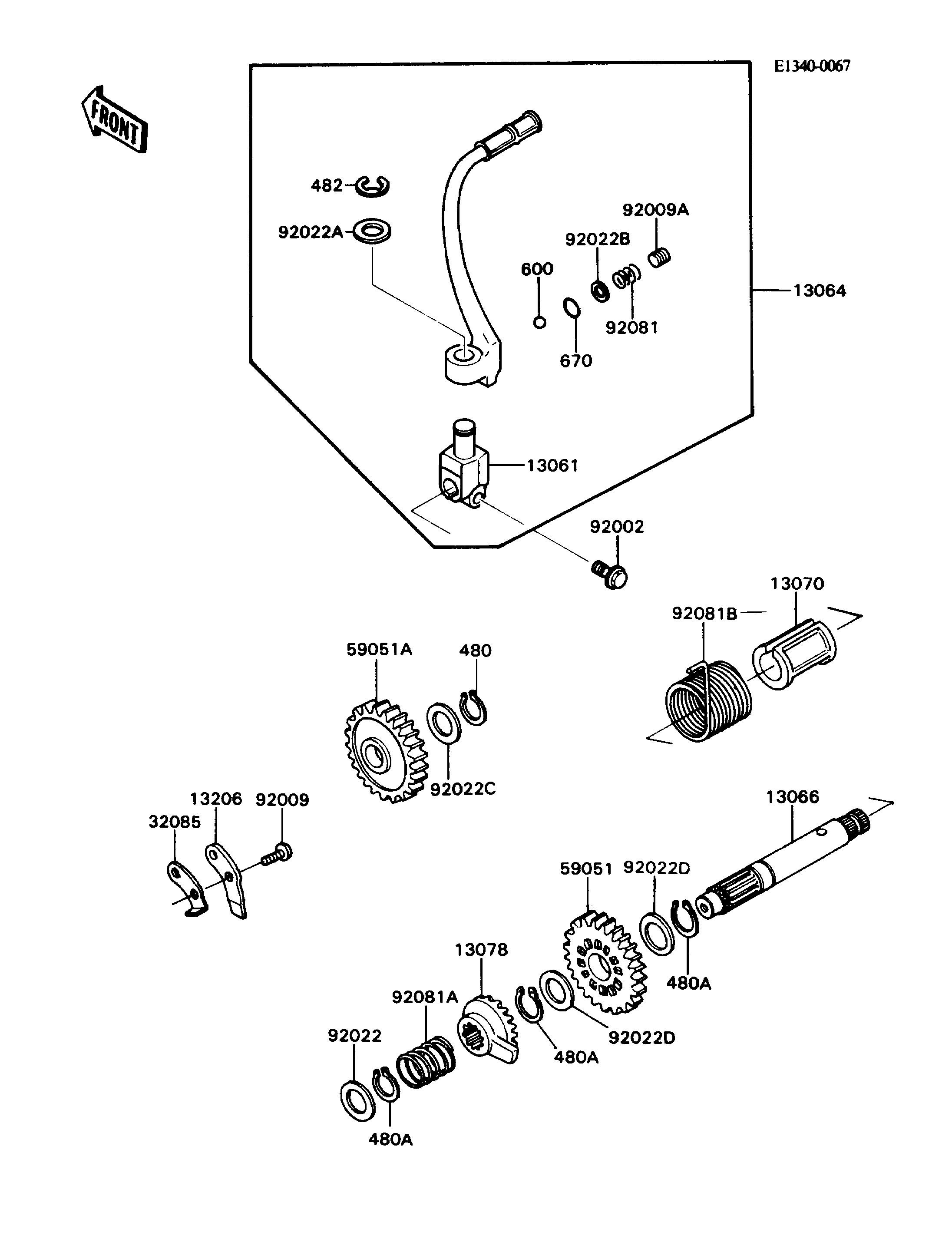

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOSS,KICK LEVER | 13061 | 13061-1301 | 1 | ||
| LEVER-ASSY-KICK,PEDAL | 13064 | 13064-1147 | 1 | ||
| SHAFT-KICK | 13066 | 13066-1016 | 1 | ||
| GUIDE,KICK SHAFT | 13070 | 13070-1035 | 1 | ||
| RATCHET | 13078 | 13078-1001 | 1 | ||
| GUIDE-KICK | 13206 | 13206-1002 | 1 | ||
| STOPPER,KICKSTARTER | 32085 | 32085-1027 | 1 | ||
| GEAR-SPUR,KICK | 59051 | 59051-1029 | 1 | ||
| GEAR,KICKSTARTER IDLE,35T | 59051A | 59051-1204 | 1 | ||
| BOLT,6X20 | 92002 | 92002-1237 | 1 | ||
| SCREW,TAPPING | 92009 | 92009-1104 | 2 | ||
| SCREW,SOCKET,8X8 | 92009A | 92009-1312 | 1 | ||
| WASHER,13.2X20X0.5 | 92022 | 92022-1224 | 1 | ||
| WASHER,12.2X20X1.6 | 92022A | 92022-1236 | 1 | ||
| WASHER | 92022B | 92022-1481 | 1 | ||
| WASHER,12.3X20X0.5 | 92022C | 92022-269 | 1 | ||
| WASHER,16.8X22X0.5 | 92022D | 92022-315 | 2 | ||
| SPRING,KICK PEDAL | 92081 | 92081-020 | 1 | ||
| SPRING,RATCHET | 92081A | 92081-122 | 1 | ||
| SPRING,KICK STARTER | 92081B | 92081-1276 | 1 | ||
| CIRCLIP-TYPE-C,12MM | 480 | 480J1200 | 1 | ||
| CIRCLIP-TYPE-C,16MM | 480A | 480J1600 | 3 | ||
| CIRCLIP-TYPE-E,8MM | 482 | 482K8000 | 1 | ||
| BALL-STEEL,1/4" | 600 | 600A0800 | 1 | ||
| O RING,4MM | 670 | 670B1504 | 1 |
