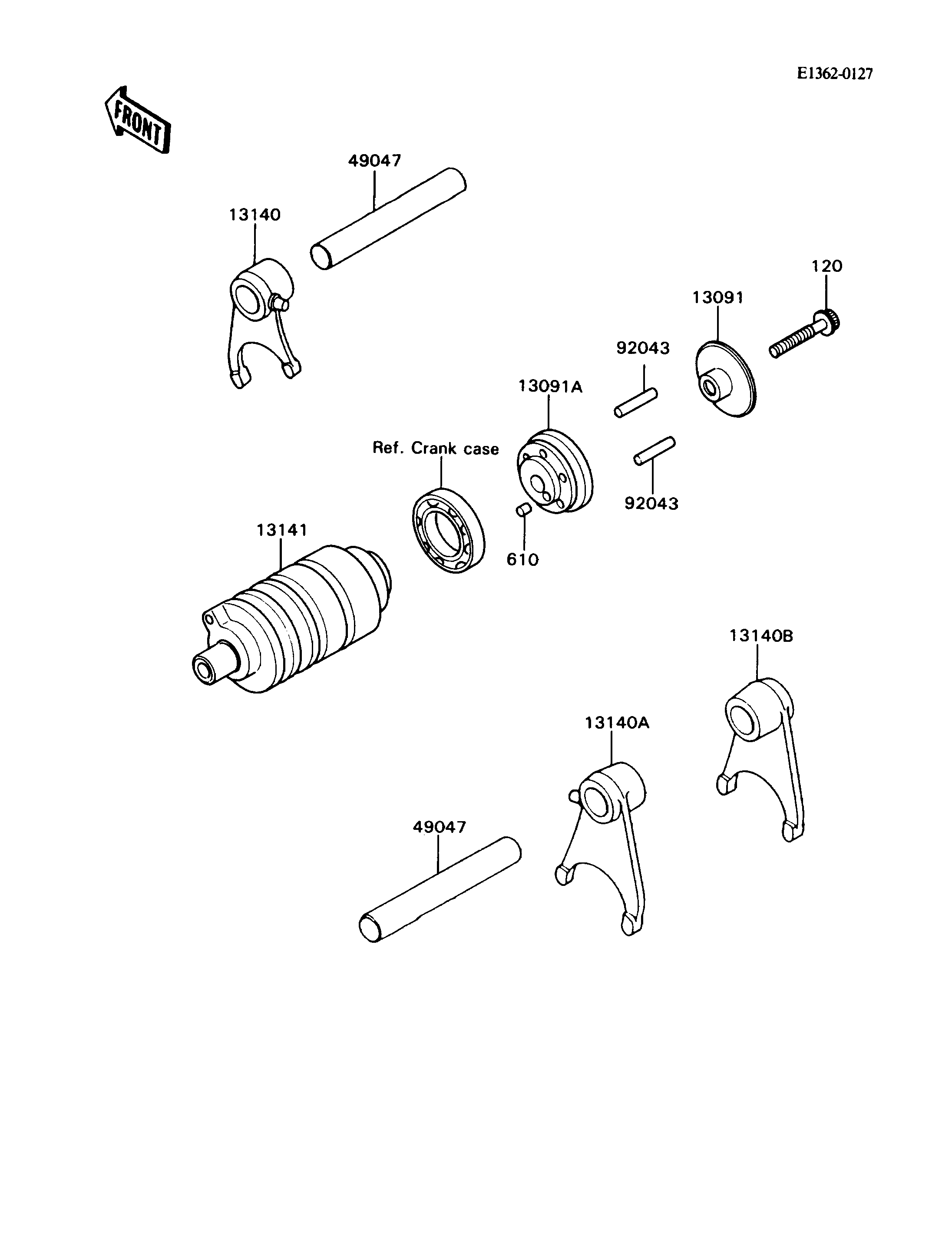

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER 13091 13091-1086 1
HOLDER,CHANGE DRUM 13091A 13091-1560 1
FORK-SHIFT 13140 13140-1108 1
FORK-SHIFT 13140A 13140-1109 1
FORK-SHIFT 13140B 13140-1110 1
DRUM-CHANGE 13141 13141-1154 1
ROD-SHIFT,10X90 49047 49047-1009 2
PIN,DOWEL,4X17.8 92043 92042-020 6
BOLT-SOCKET,6X30 120 120P0630 1
ROLLER,4X6 610 610A0406 1
