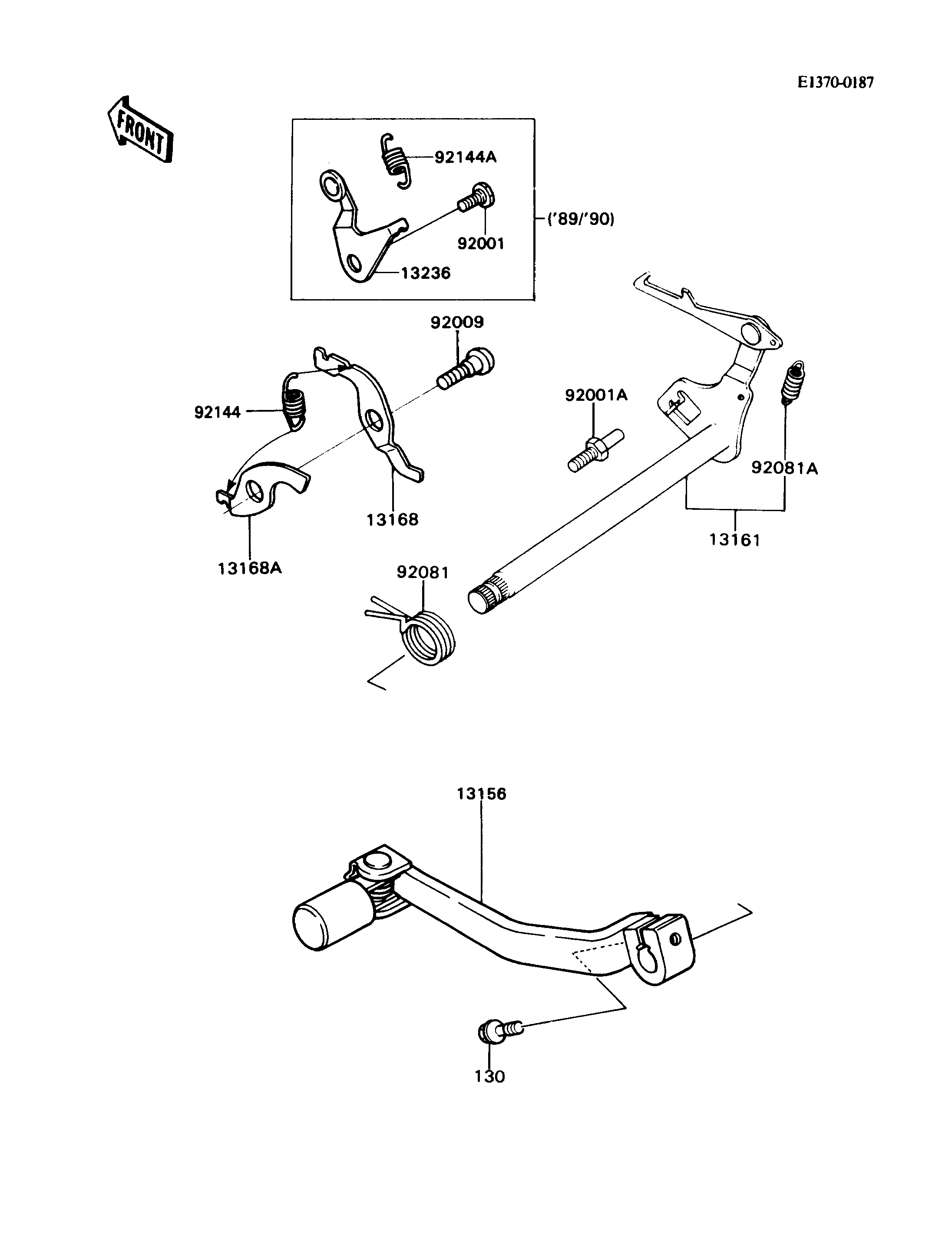

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-CHANGE,PEDAL 13156 13156-1272 1
LEVER-COMP-CHANGE SHAFT 13161 13161-1163 1
LEVER,NUETRAL 13168 13168-1234 1
LEVER,SET 13168A 13168-1398 1
BOLT,RETURN SPRING 92001A 92001-1455 1
SCREW,6MM 92009 92011-023 1
SPRING,CHANGE LEVER RETURN 92081 92081-1279 1
SPRING,NEUTRAL POSITION 92081A 92081-156 1
SPRING,SET 92144 92144-1346 1
BOLT-FLANGED,6X25,BLACK 130 130S0625 1
