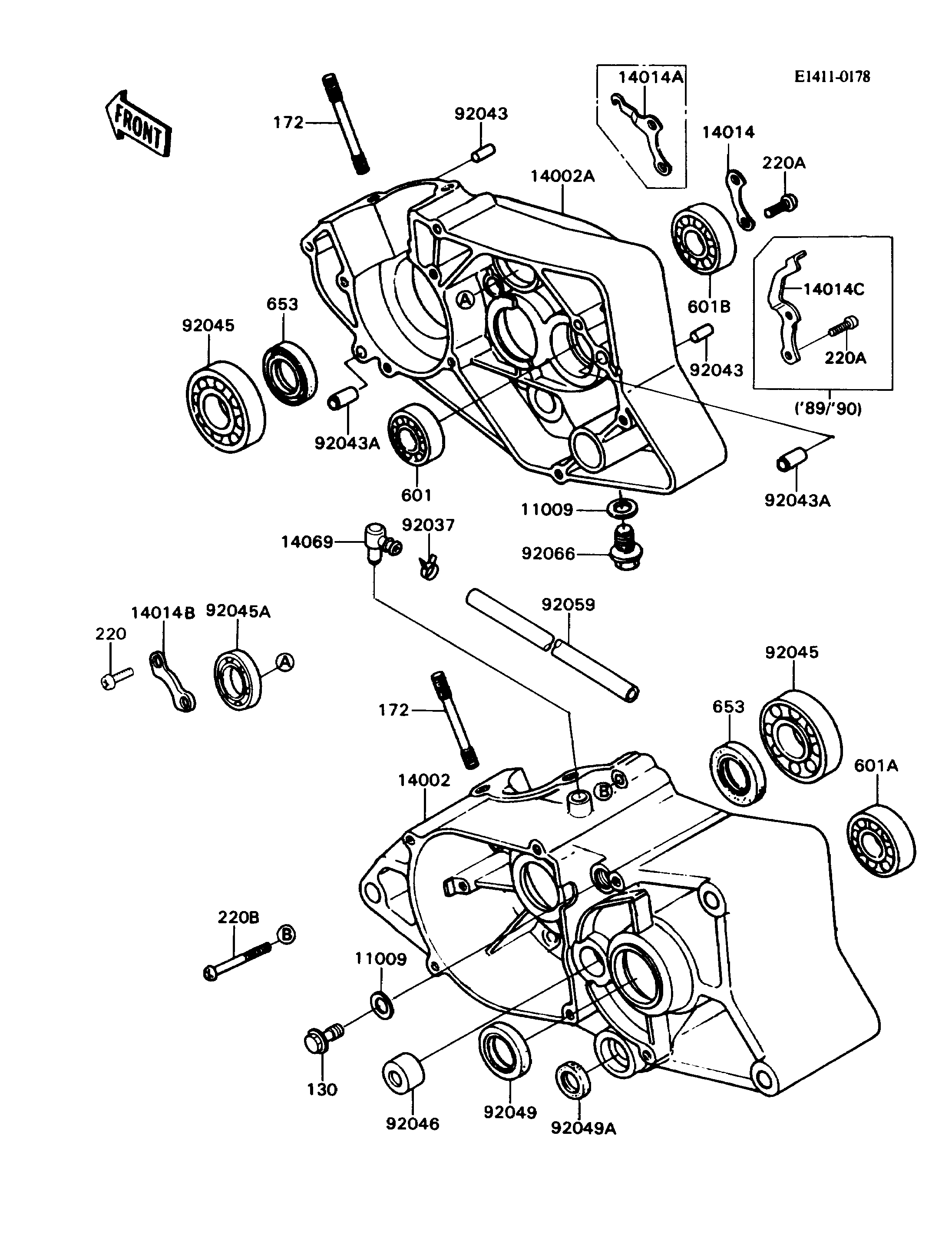

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,10.5X16X1,DRAIN PLUG | 11009 | 92065-058 | 2 | ||
| CRANKCASE,LH | 14002 | 14002-1475 | 1 | ||
| CRANKCASE,RH | 14002A | 14002-1521 | 1 | ||
| PLATE-POSITION | 14014 | 14014-1014 | 1 | ( AR080AE037744 - ) | |
| PLATE-POSITION | 14014A | 14014-1061 | 1 | ( - AR080AE037743) | |
| PLATE-POSITION,CHANGE DRUM | 14014B | 14014-1093 | 1 | ||
| BREATHER | 14069 | 14069-003 | 1 | ||
| CLAMP,TUBE | 92037 | 92037-1461 | 1 | ||
| PIN,4.2X6X12 | 92043 | 92043-1262 | 2 | ||
| PIN,6.2X8X14 | 92043A | 92043-1263 | 2 | ||
| BEARING-BALL,R-6304C3 | 92045 | 92045-1059 | 2 | ||
| BEARING-BALL,6804 | 92045A | 92045-1171 | 1 | ||
| BEARING-NEEDLE,BK1312 NTN | 92046 | 92046-1034 | 1 | ||
| SEAL-OIL,SC22325 | 92049 | 92049-1048 | 1 | ||
| SEAL-OIL,TB13225.5 | 92049A | 92051-005 | 1 | ||
| TUBE,6X9X360 | 92059 | 92059-103 | 1 | ||
| PLUG,DRAIN | 92066 | 92066-1241 | 1 | ||
| BOLT-FLANGED | 130 | 130H1020 | 1 | ||
| BOLT-STUD,8X95 | 172 | 172G0895 | 4 | ||
| SCREW-PAN-CROS,6X10 | 220 | 220B0610 | 2 | ||
| SCREW-PAN-CROS,6X14 | 220A | 220B0614 | 2 | ||
| SCREW-PAN-CROS,6X40,BLACK | 220B | 220C0640 | 9 | ||
| BEARING-BALL,#6201C3 | 601 | 601B6201 | 1 | ||
| BEARING-BALL,#6203C3 | 601A | 601B6203 | 1 | ||
| BEARING-BALL,#6203ZC3 | 601B | 601B6203Z | 1 | ||
| OIL SEAL,TB20358 | 653 | 653B203508 | 2 |
| GASKET,10.5X16X1,DRAIN PLUG | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CRANKCASE,LH | |
| REF # | 14002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKCASE,RH | |
| REF # | 14002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-POSITION | |
| REF # | 14014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( AR080AE037744 - ) |
| PLATE-POSITION | |
| REF # | 14014A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - AR080AE037743) |
| PLATE-POSITION,CHANGE DRUM | |
| REF # | 14014B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BREATHER | |
| REF # | 14069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,4.2X6X12 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,6.2X8X14 | |
| REF # | 92043A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,R-6304C3 | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,6804 | |
| REF # | 92045A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,BK1312 NTN | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,SC22325 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,TB13225.5 | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,6X9X360 | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG,DRAIN | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-STUD,8X95 | |
| REF # | 172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,6X10 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,6X14 | |
| REF # | 220A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,6X40,BLACK | |
| REF # | 220B |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#6201C3 | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#6203C3 | |
| REF # | 601A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#6203ZC3 | |
| REF # | 601B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,TB20358 | |
| REF # | 653 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
