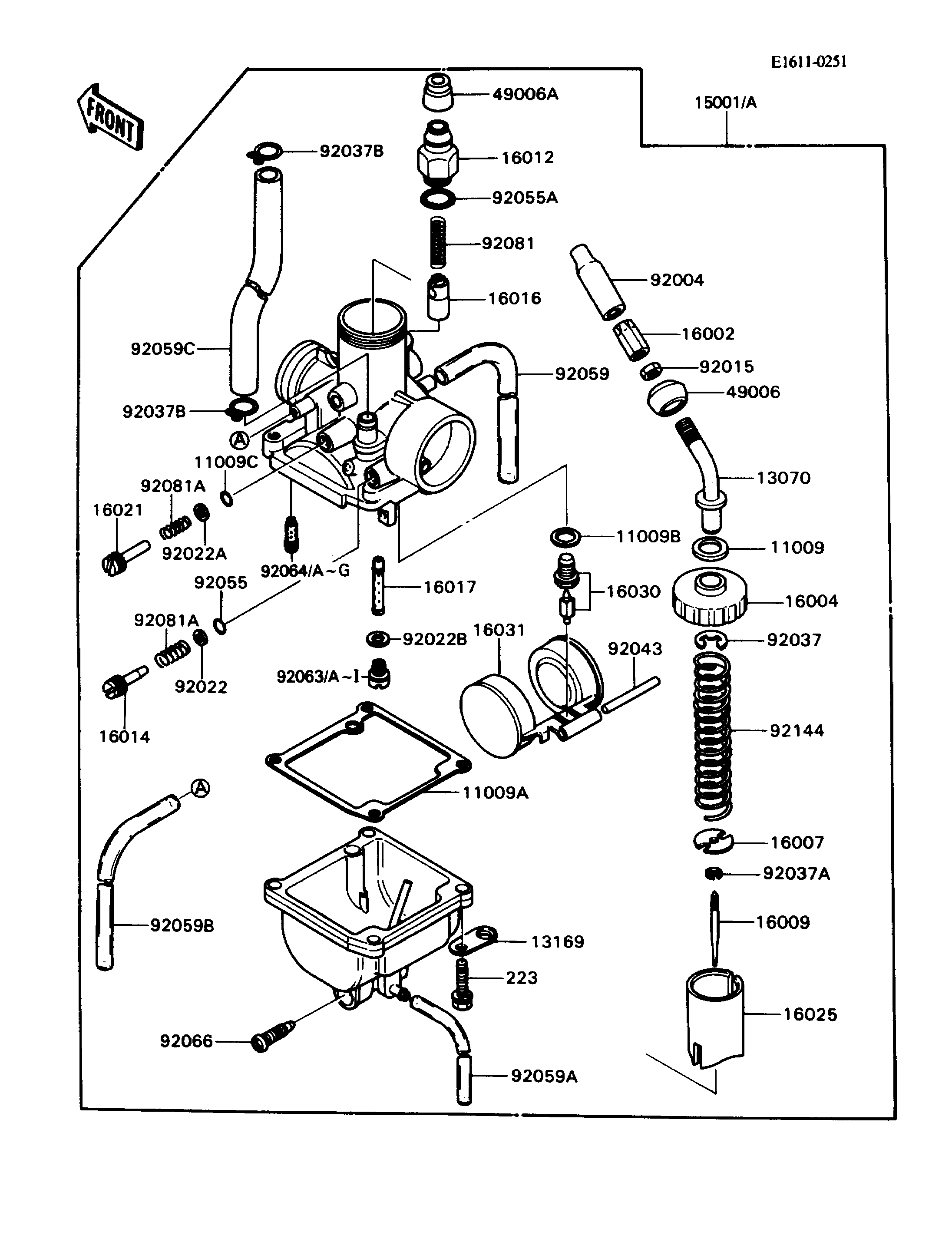

1988 KD80 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CABLE GUIDE 11009 11009-1074 1
GASKET,FLOAT CHAMBER 11009A 11009-1250 1
GASKET,FLOAT VALVE SEAT 11009B 16029-002 1
GASKET,"O"RING 11009C 16038-022 1
GUIDE,THROTTLE CABLE 13070 13070-1068 1
PLATE,TUBE CLAMP 13169 13169-1226 2
CARBURETOR-ASSY 15001 15001-1411 1 US
CARBURETOR-ASSY 15001A 15001-1456 1 CN
ADJUSTER-CABLE 16002 16002-1011 1
CAP-CHAMBER,MIXING 16004 16004-1062 1
SEAT-SPRING 16007 16007-1044 1
NEEDLE-JET,3G23-4 16009 16009-1466 1
CAP-STARTER PLUNGER 16012 16012-1058 1
SCREW-PILOT AIR 16014 16014-1060 1
PLUNGER,STARTER 16016 16016-002 1
JET-NEEDLE,D-8 16017 16017-1347 1
SCREW-THROTTLE STOP 16021 16021-1113 1
VALVE-THROTTLE,CA3.0 16025 16025-1152 1
VALVE-FLOAT,#1.5 16030 16030-1065 1
FLOAT 16031 16031-1068 1
BOOT,MIXING CHAMBER CAP 49006 49006-1083 1
BOOT,STARTER PLUNGER 49006A 49006-1203 1
STUD,CABLE ADJUSTER 92004 92006-1084 1
NUT,CABLE ADJUST LOCK 92015 16003-004 1
WASHER,ADJUST SCREW 92022 92022-1187 1
WASHER,THROTTLE STOP SCREW 92022A 92022-1698 1
WASHER 92022B 92022-1938 1
CLAMP,CABLE GUIDE 92037 16008-011 1
CLAMP 92037A 92037-1272 1
CLAMP,TUBE 92037B 92037-1573 2
PIN,FLOAT 92043 16032-003 1
RING-O,ADJUST SCREW 92055 92055-1078 1
RING-O,PLUNGER 92055A 92055-1417 1
TUBE,3X5X320 92059 92059-1430 1
TUBE,3X5X250 92059A 92059-1432 1
TUBE,3X5X350 92059B 92059-1933 1
TUBE,5.3X10.5X95 92059C 92059-1943 1
JET-MAIN,#85R 92063 92063-093 1 US
JET-MAIN,#87.5R 92063A 92063-094 1 CN
JET-MAIN,#A90R 92063B 92063-1029 1 CN
JET-MAIN,#A95R 92063C 92063-1031 1 CN
JET-MAIN,#A92.5R 92063D 92063-1085 1 CN
JET-MAIN,#75R 92063E 92063-109 1 US
JET-MAIN,#77.5R 92063F 92063-122 1 US
JET-MAIN,#80R 92063G 92063-123 1 US
JET-MAIN,#82.5R 92063H 92063-124 1 US
JET-MAIN,#A85R 92063I 92063-1323 1 CN
JET-PILOT,#17.5 92064 92064-020 1 (OFF ROAD USE ONLY)
JET-PILOT,#20 92064A 92064-021 1 US
JET-PILOT,#20 92064B 92064-021 1 CN
JET-PILOT,#25 92064C 92064-032 1 (OFF ROAD USE ONLY)
JET-PILOT,#22.5 92064D 92064-040 1 CN (OFF ROAD USE ONLY)
JET-PILOT,#22.5 92064E 92064-040 1 US
JET-PILOT,#15 92064F 92064-047 1 US
JET-PILOT,#27.5 92064G 92064-1033 1 CN
PLUG,DRAIN 92066 92066-1187 1
SPRING,STARTER PLUNGER 92081 16013-005 1
SPRING,STOP SCREW 92081A 92081-1153 2
SPRING,THROTTLE VALVE 92144 92144-1271 1
SCREW-PAN-WS-CROS 223 223B0416 4
