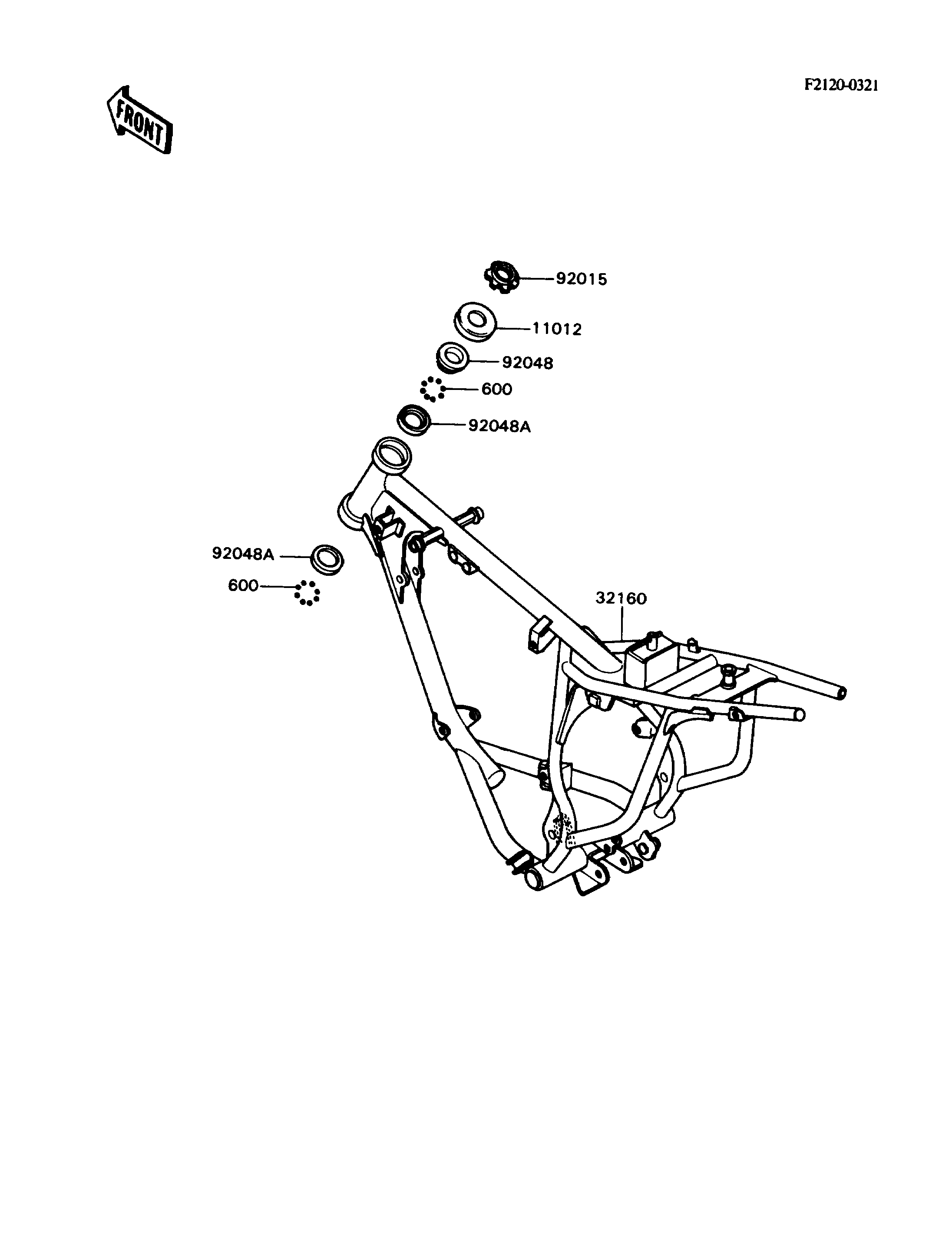

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,STEERING STEM 11012 46098-004 1
FRAME-COMP 32160 32002-1980 1
NUT,STEERING STEM LOCK,25MM 92015 92015-1382 1
CONE,STEERING STEM BEARING 92048 92047-014 1
RACE,STEERING STEM BEARING 92048A 92048-009 2
BALL-STEEL,3/16" 600 600A0600 46
