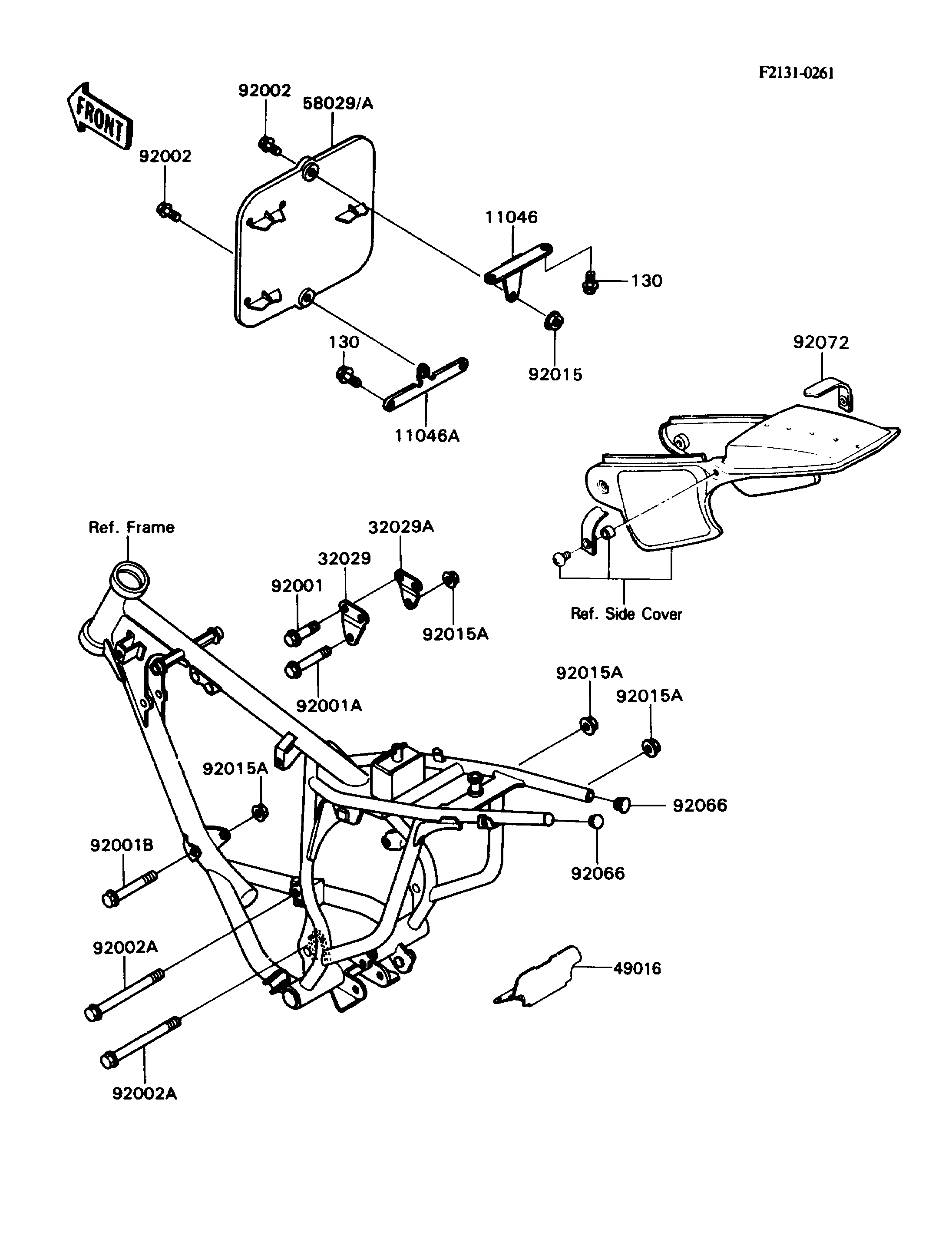

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,NUMBER PLATE,UPP 11046 11046-1163 1
BRACKET,NUMBER PLATE,LWR 11046A 11046-1164 1
BRACKET-ENGINE,UPP,LH 32029 32029-1631 1
BRACKET-ENGINE,UPP,RH 32029A 32029-1632 1
COVER-SEAL,AIR FILTER 49016 49016-1141 1
PLATE-NUMBER,L.GREEN 58029 58029-5019-6W 1
PLATE-NUMBER,P.WHITE 58029A 58029-5020-6F 1 US
BOLT,FLANGED,8X35 92001 92001-1577 2
BOLT,FLANGED,8X60 92001A 92001-1581 1
BOLT,FLANGED,8X70,BLACK 92001B 92001-1958 1
BOLT,6X14 92002 92002-1460 2
BOLT,FLANGED,8X128 92002A 92002-1547 2
NUT,FLANGED,6MM 92015 92015-1078 1
NUT,FLANGED,8MM,BLACK 92015A 92015-1183 4
PLUG 92066 92066-1231 2
BAND 92072 92072-1234 1
BOLT-FLANGED 130 130J0610 4
