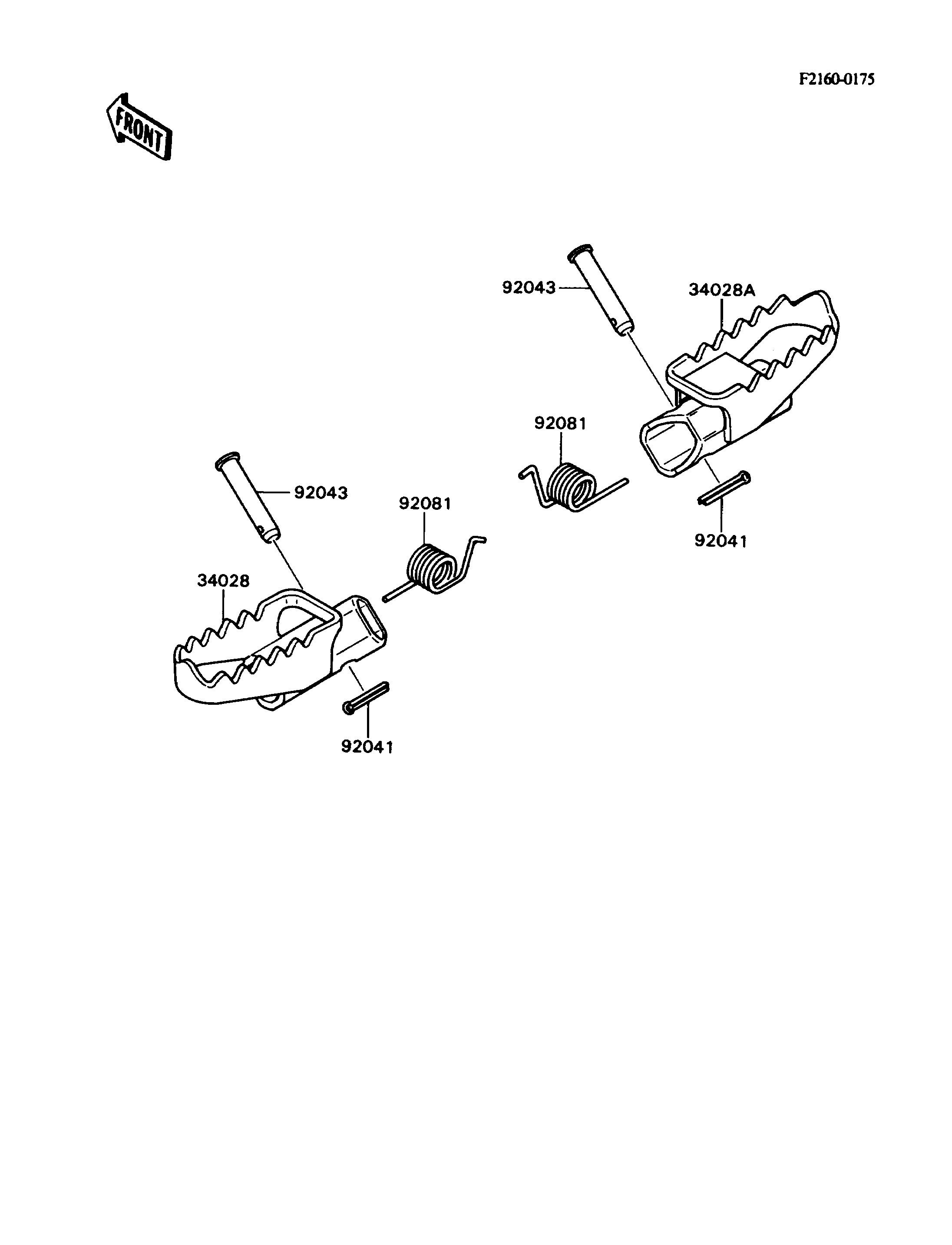

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STEP,FR,LH 34028 34028-1145 1
STEP,FR,RH 34028A 34028-1270 1
COTTER,2.5X15 92041 92041-1051 2
PIN,8X31 92043 92043-080 2
SPRING,STEP 92081 92081-1133 2
