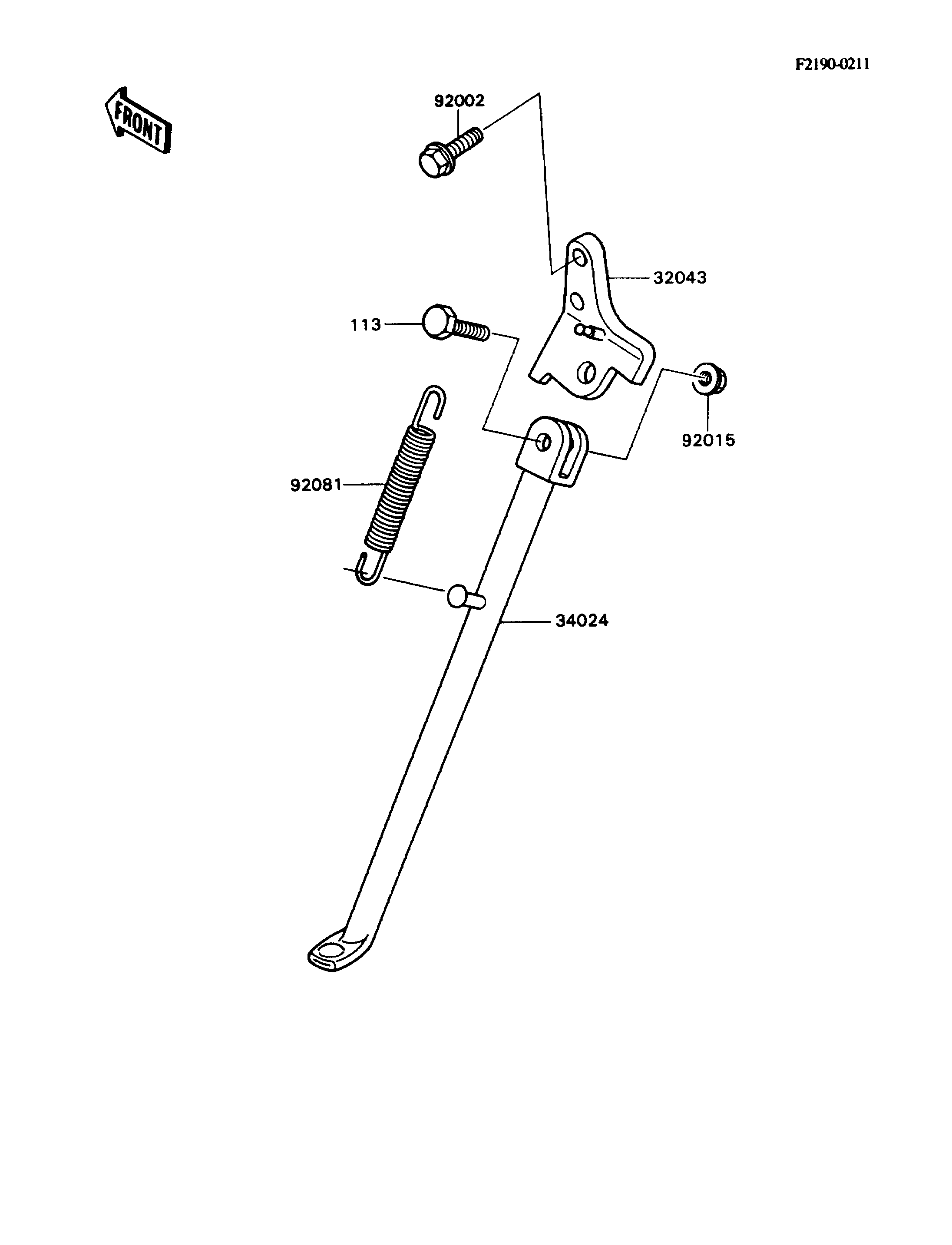

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-STAND,SIDE 32043 32043-1322 1
STAND-SIDE 34024 34024-1253 1
BOLT,8X14 92002 92002-1589 2
NUT 92015 92015-1541 1
SPRING,STAND 92081 34025-005 1
BOLT-SMALL-FINE,10X30 113 113J1030 1
