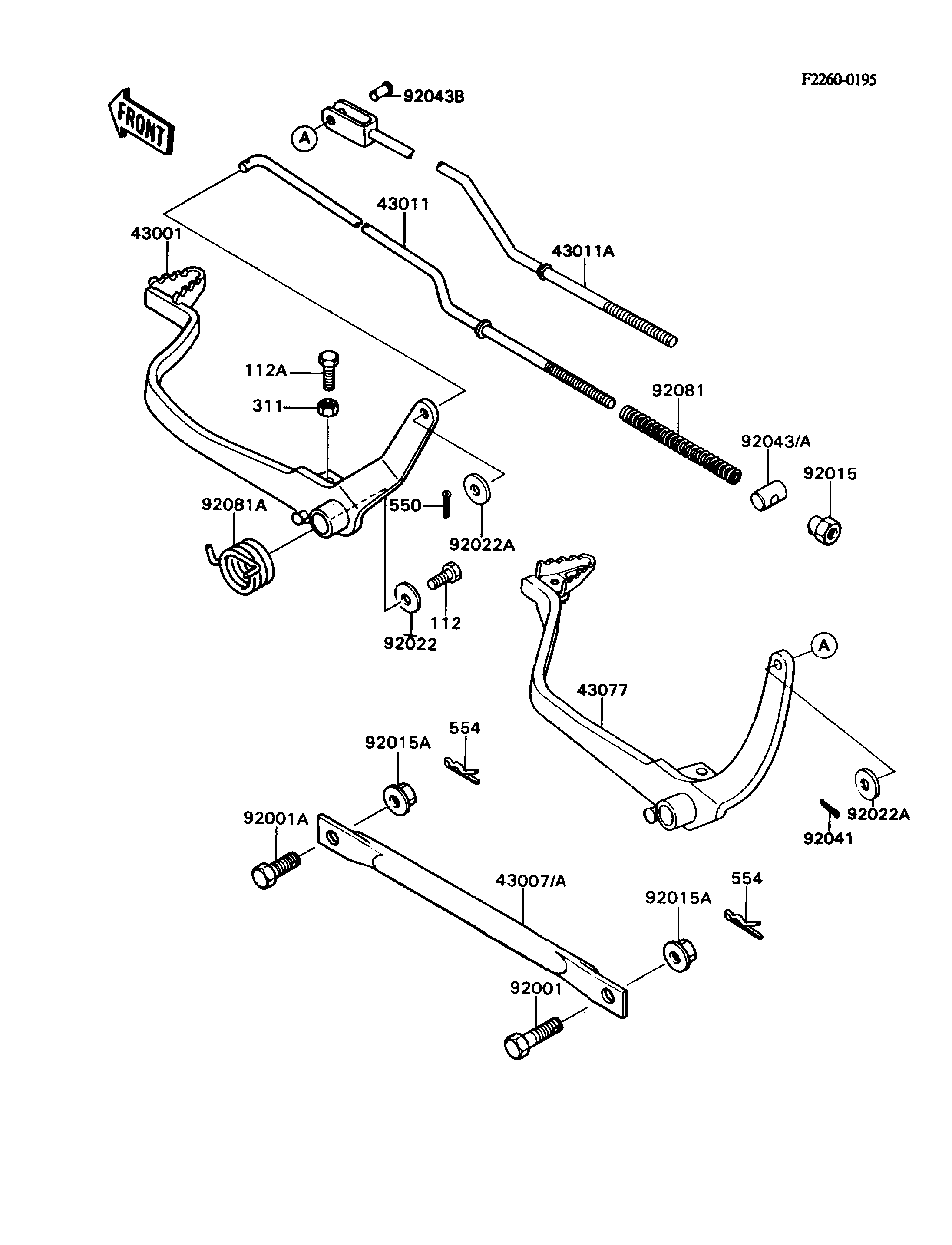

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-BRAKE,PEDAL 43001 43001-1251 1
ROD-TORQUE 43007 43007-1141 1
ROD-BRAKE 43011 43011-1142 1
BOLT,10X32 92001 92003-003 1
BOLT,10X25 92001A 92003-017 1
NUT,BRAKE ROD 92015 92015-042 1
NUT,FLANGED,10MM 92015A 92015-1428 2
WASHER,6.5X20X1.6 92022 92022-125 1
WASHER,PLAIN,6MM 92022A 92022-165 1
PIN,BRAKE ROD 92043 92043-039 1
SPRING,BRAKE ROD 92081 43012-001 1
SPRING,BRAKE PEDAL RETURN 92081A 92081-1782 1
BOLT-UPSET 112 112G0616 1
BOLT-UPSET 112A 112G0620 1
NUT-HEX,6MM 311 311G0600 1
PIN-COTTER,2.0X15 550 550D2015 1
PIN-SNAP,8MM 554 554A0800 2
