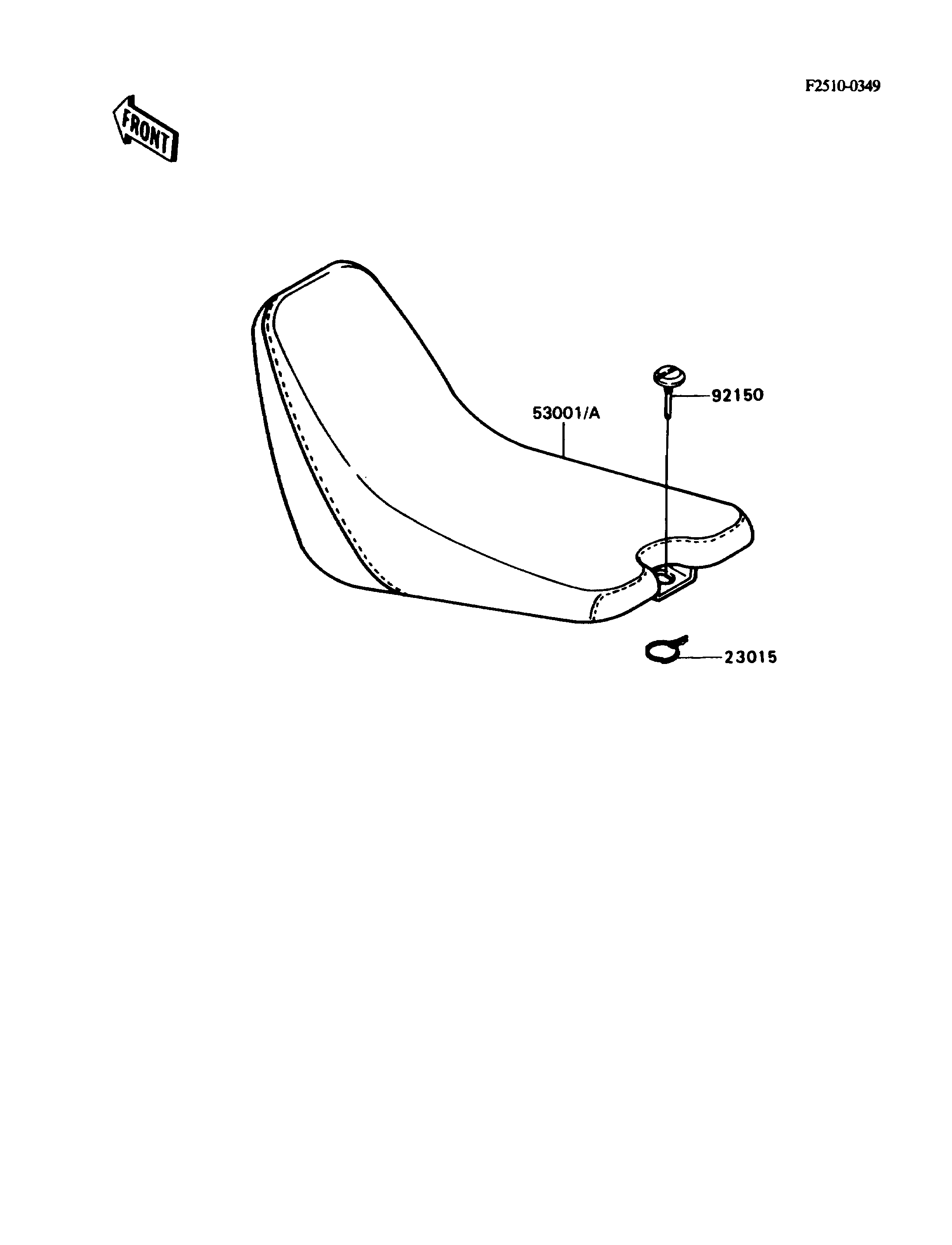

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-ASSY,SNAP,4MM 23015 23015-1051 1
SEAT-ASSY,BLUE 53001A 53001-1538-N7 1
BOLT 92150 92150-1228 1
