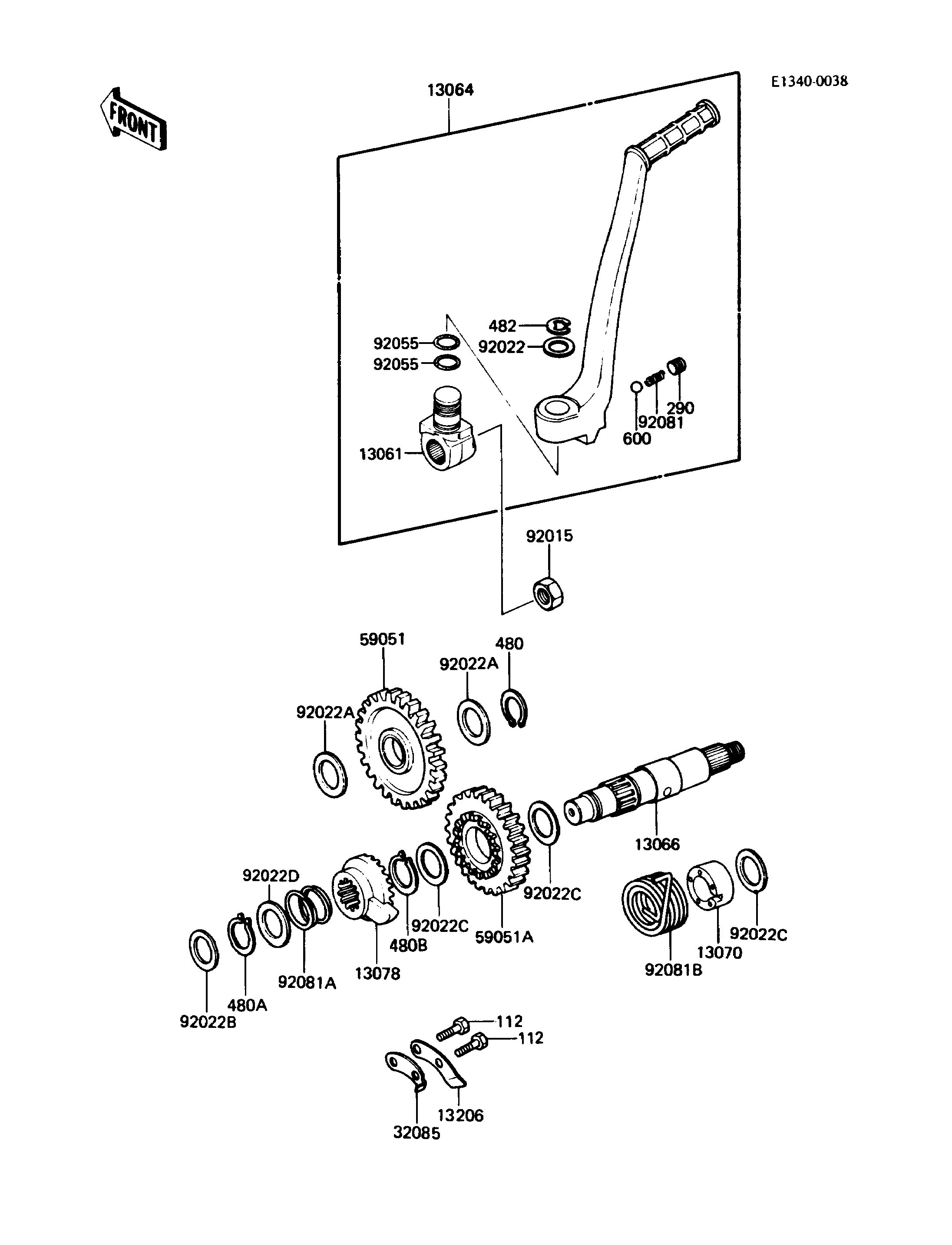

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOSS,KICK PEDAL | 13061 | 13061-1190 | 1 | ||
| LEVER-ASSY-KICK,PEDAL | 13064 | 13064-1128 | 1 | ||
| SHAFT-KICK | 13066 | 13066-1063 | 1 | ||
| GUIDE,KICK SPRING | 13070 | 13070-1063 | 1 | ||
| RATCHET | 13078 | 13078-1007 | 1 | ||
| GUIDE-KICK | 13206 | 13206-1001 | 1 | ||
| STOPPER,KICKSTARTER | 32085 | 32085-1016 | 1 | ||
| GEAR-SPUR,KICK,30T | 59051 | 59051-1041 | 1 | ||
| GEAR-SPUR,KICKSTATER,31T | 59051A | 59051-1152 | 1 | ||
| NUT,12MM | 92015 | 92015-1001 | 1 | ||
| WASHER,15.2X20X1 | 92022 | 92022-1019 | 1 | ||
| WASHER,15.3X25X0.5 | 92022A | 92022-1045 | 2 | ||
| WASHER,12.3X20X0.5 | 92022B | 92022-269 | 1 | ||
| WASHER,18.3X22X0.5 | 92022C | 92022-271 | 3 | ||
| WASHER,16.8X22X0.5 | 92022D | 92022-315 | 1 | ||
| RING-O,10X1.5 | 92055 | 92055-061 | 2 | ||
| SPRING,KICK PEDAL | 92081 | 92081-020 | 1 | ||
| SPRING,RATCHET | 92081A | 92081-122 | 1 | ||
| SPRING,KICKSTARTER | 92081B | 92081-1926 | 1 | ||
| BOLT-UPSET | 112 | 112G0618 | 2 | ||
| SCREW-SET-SOCKET,8X8 | 290 | 290Q0808 | 1 | ||
| CIRCLIP-TYPE-C,15MM | 480 | 480J1500 | 1 | ||
| CIRCLIP-TYPE-C,16MM | 480A | 480J1600 | 1 | ||
| CIRCLIP-TYPE-C,18MM | 480B | 480J1800 | 1 | ||
| CIRCLIP-TYPE-E,10MM | 482 | 482L0100 | 1 | ||
| BALL-STEEL,1/4" | 600 | 600A0800 | 1 |
| BOSS,KICK PEDAL | |
| REF # | 13061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-ASSY-KICK,PEDAL | |
| REF # | 13064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-KICK | |
| REF # | 13066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,KICK SPRING | |
| REF # | 13070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RATCHET | |
| REF # | 13078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-KICK | |
| REF # | 13206 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STOPPER,KICKSTARTER | |
| REF # | 32085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR,KICK,30T | |
| REF # | 59051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR,KICKSTATER,31T | |
| REF # | 59051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,12MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,15.2X20X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,15.3X25X0.5 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,12.3X20X0.5 | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,18.3X22X0.5 | |
| REF # | 92022C |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER,16.8X22X0.5 | |
| REF # | 92022D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,10X1.5 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,KICK PEDAL | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,RATCHET | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,KICKSTARTER | |
| REF # | 92081B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 112 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-SET-SOCKET,8X8 | |
| REF # | 290 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-C,15MM | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-C,16MM | |
| REF # | 480A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-C,18MM | |
| REF # | 480B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-E,10MM | |
| REF # | 482 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BALL-STEEL,1/4" | |
| REF # | 600 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
