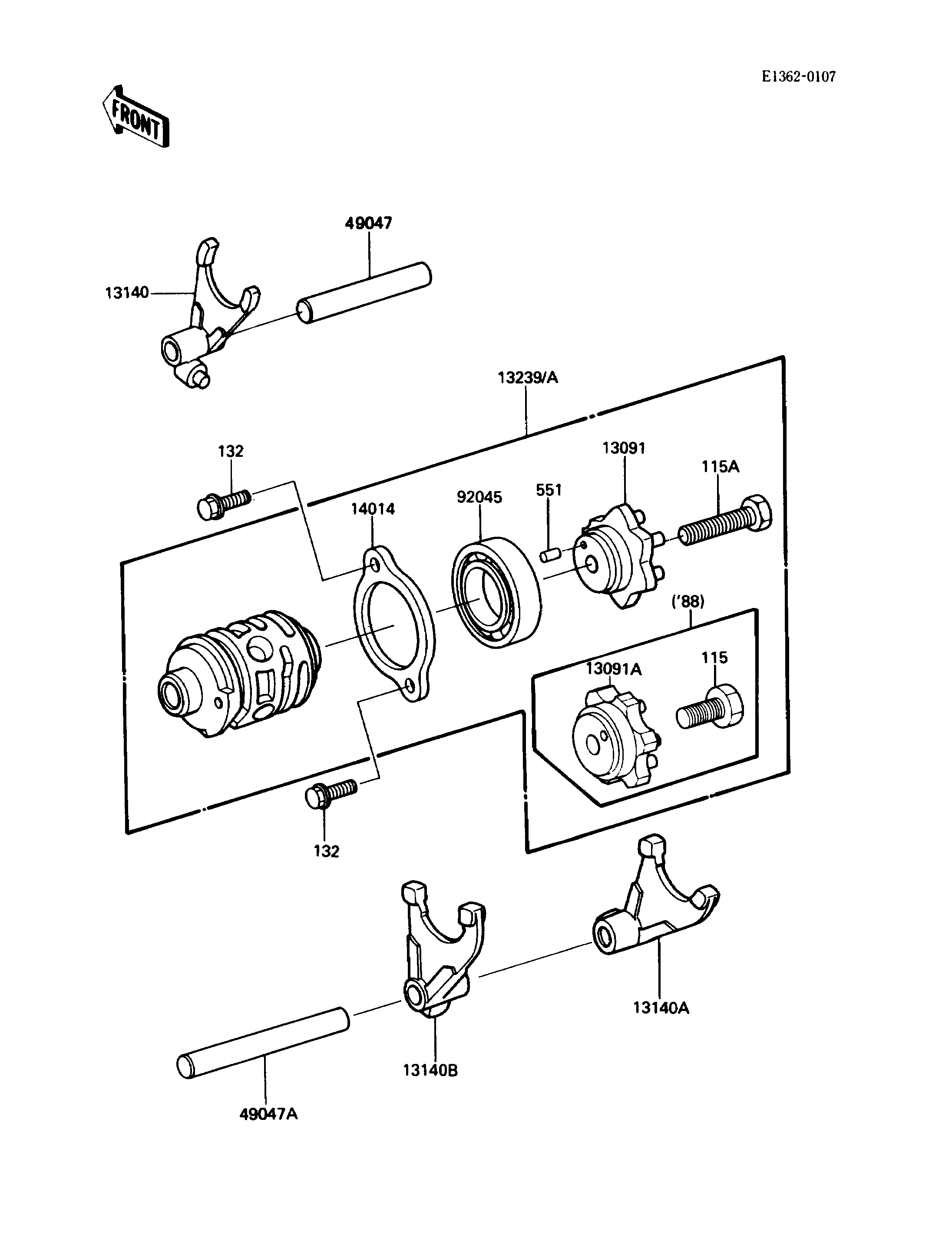

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,CHANGE DRUM 13091A 13091-1476 1
FORK-SHIFT,5TH&TOP 13140 13140-1074 1
FORK-SHIFT,LOW&4TH 13140A 13140-1143 1
FORK-SHIFT,2ND&3RD 13140B 13140-1144 1
DRUM-ASSY-CHANGE 13239A 13239-1146 1
PLATE-POSITION 14014 14014-1020 1
ROD-SHIFT,8X58 49047 49047-1017 1
ROD-SHIFT,8X82.5 49047A 49047-1065 1
BEARING-BALL,#6905 92045 92045-036 1
BOLT-SMALL-UPSET,8X18 115 115G0818 1
BOLT-FLANGED-SMALL 132 132G0614 2
PIN-DOWEL,4X8 551 551A0408 1
