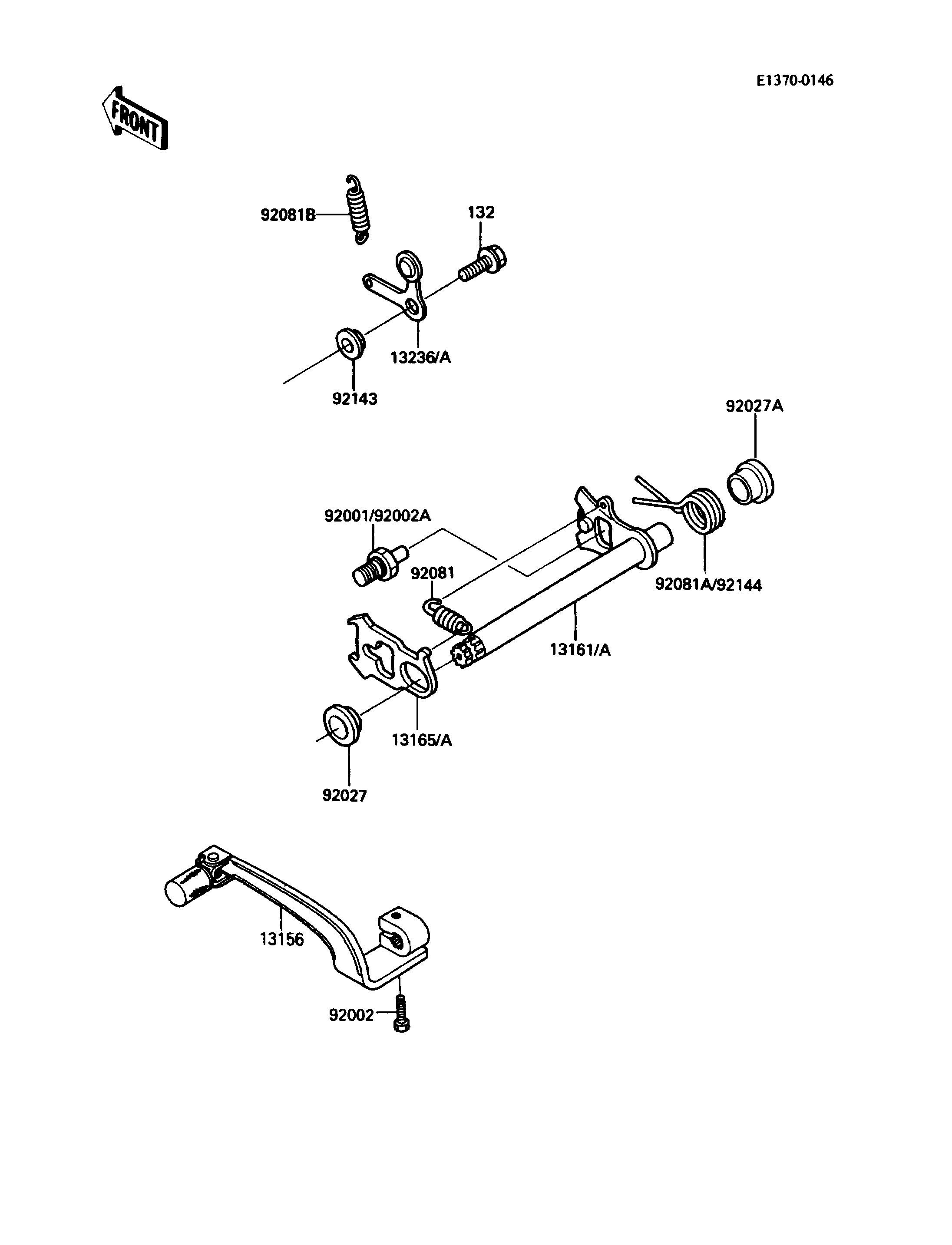

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-CHANGE,PEDAL 13156 13156-1220 1
LEVER-COMP-CHANGE SHAFT 13161A 13161-1148 1
PAWL,CHANGE LEVER 13165A 13165-1122 1
LEVER-COMP,POSITION 13236A 13236-1155 1
BOLT,6X25 92002 92002-1339 1
BOLT,8X15 92002A 92002-1601 1
COLLAR,CHANGE SHAFT,L=5.5 92027 92027-1512 1
COLLAR,L=10.6 92027A 92027-1801 1
SPRING,CHANGE LEVER 92081 92081-076 1
SPRING,CHANGE DRUM LEVER 92081B 92083-012 1
COLLAR 92143 92143-1055 1
SPRING,CHANGE SHAFT RETURN 92144 92144-1142 1
BOLT-FLANGED-SMALL 132 132G0616 1
