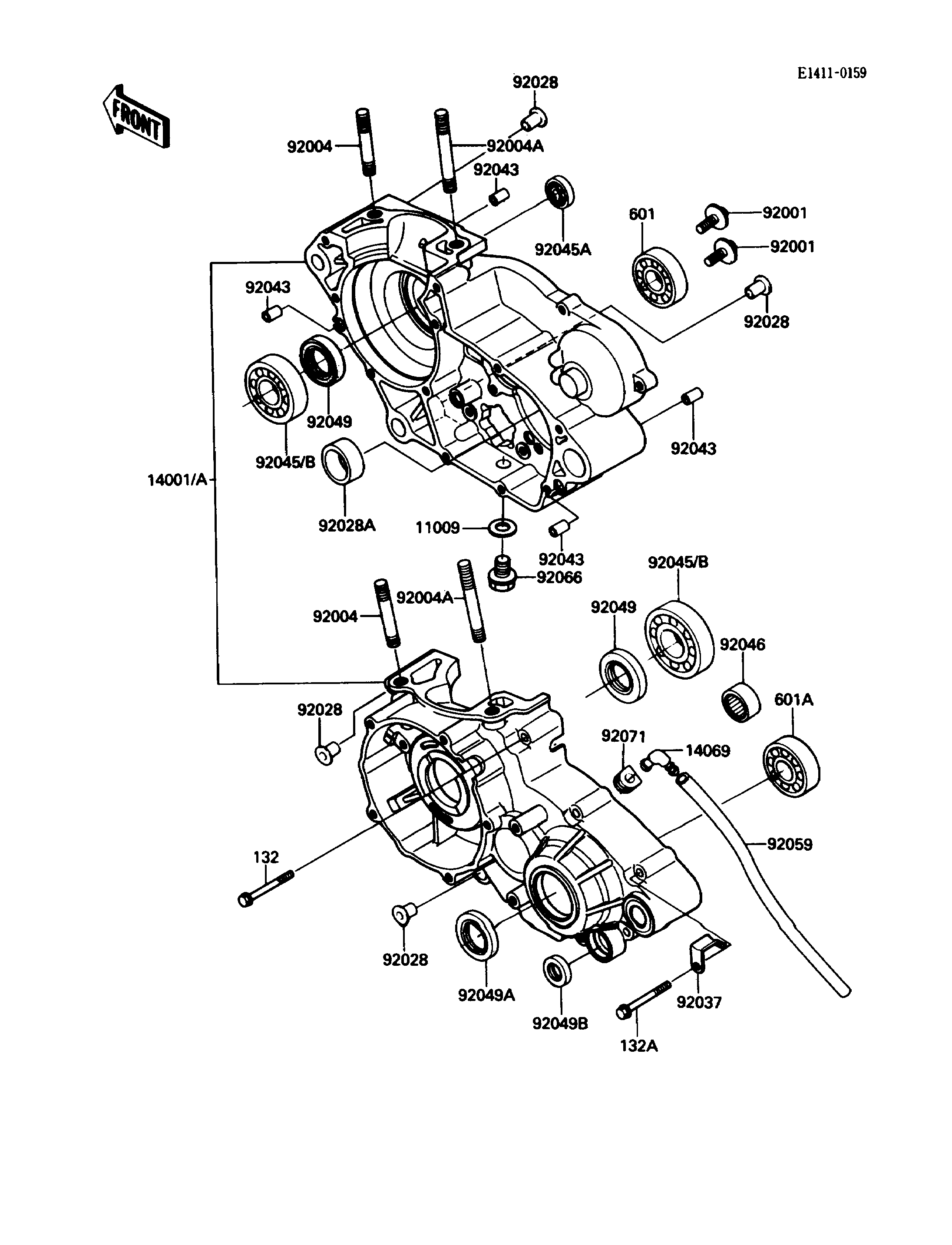

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,10.5X16X1,DRAIN PLUG | 11009 | 92065-058 | 1 | ||
SET-CRANKCASE | 14001 | 14001-5209 | 1 | ||
BREATHER,CRANKCASE | 14069 | 14069-002 | 1 | ||
BOLT,FLANGED,6X18 | 92001 | 92001-1066 | 2 | ||
STUD,8X25 | 92004 | 92004-1008 | 2 | ||
STUD,8X60 | 92004A | 92004-1132 | 2 | ||
BUSHING | 92028 | 92028-1133 | 4 | ||
BUSHING,23X30X13 | 92028A | 92028-132 | 1 | ||
CLAMP,HARNESS | 92037 | 92037-1318 | 1 | ||
PIN,DOWEL,6.3X8X14 | 92043 | 92042-007 | 4 | ||
BEARING-BALL,#6305SH2 | 92045 | 92045-1024 | 2 | ||
BEARING-BALL,#608 | 92045A | 92045-1048 | 1 | ||
BEARING-NEEDLE,#7E-HKS162412-1 | 92046 | 92046-026 | 1 | ||
SEAL-OIL,TBJ25407 | 92049 | 92049-1068 | 2 | ||
SEAL-OIL,TB3040 | 92049A | 92050-033 | 1 | ||
SEAL-OIL,TB13225.5 | 92049B | 92051-005 | 1 | ||
TUBE,6X9X500 | 92059 | 92059-1125 | 1 | ||
PLUG,DRAIN | 92066 | 92066-1241 | 1 | ||
GROMMET,BREATHER | 92071 | 92071-042 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132G0640 | 10 | ||
BOLT-FLANGED-SMALL | 132A | 132G0660 | 1 | ||
BEARING-BALL,#6204C3 | 601 | 601B6204 | 1 | ||
BEARING-BALL,#6205C3 | 601A | 601B6205 | 1 |
GASKET,10.5X16X1,DRAIN PLUG | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SET-CRANKCASE | |
REF # | 14001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BREATHER,CRANKCASE | |
REF # | 14069 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X18 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STUD,8X25 | |
REF # | 92004 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STUD,8X60 | |
REF # | 92004A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BUSHING | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BUSHING,23X30X13 | |
REF # | 92028A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,HARNESS | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,DOWEL,6.3X8X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6305SH2 | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-BALL,#608 | |
REF # | 92045A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,#7E-HKS162412-1 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,TBJ25407 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL,TB3040 | |
REF # | 92049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,TB13225.5 | |
REF # | 92049B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,6X9X500 | |
REF # | 92059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,DRAIN | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GROMMET,BREATHER | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6204C3 | |
REF # | 601 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6205C3 | |
REF # | 601A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
