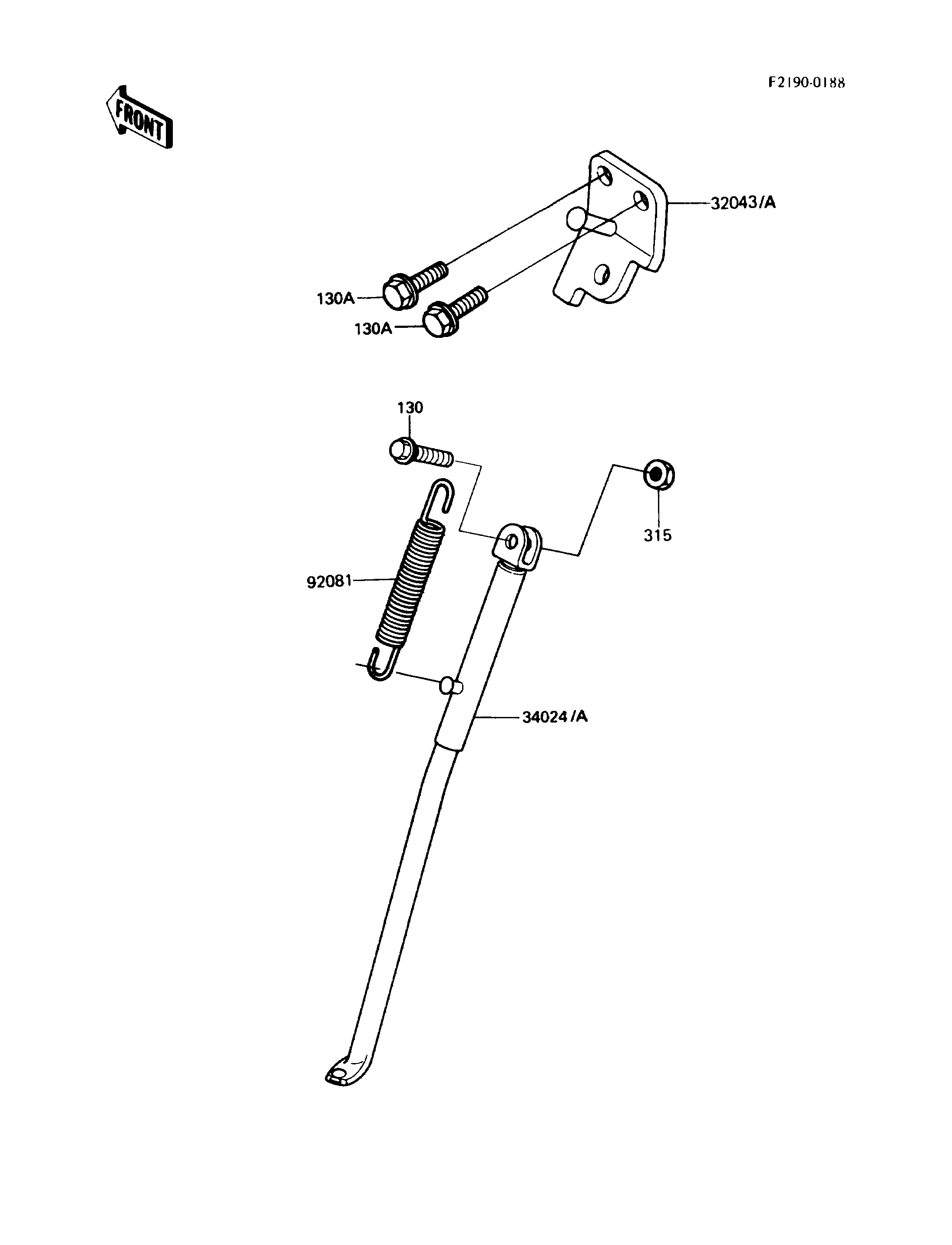

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-STAND,SIDE 32043A 32043-1314 1
STAND-SIDE 34024A 34024-1238 1
SPRING 92081 92081-1419 1
BOLT-FLANGED,10X30 130 130G1030 1
BOLT-FLANGED,12X20 130A 130G1220 2
NUT-HEX-FINE,10MM 315 315B1000 1
