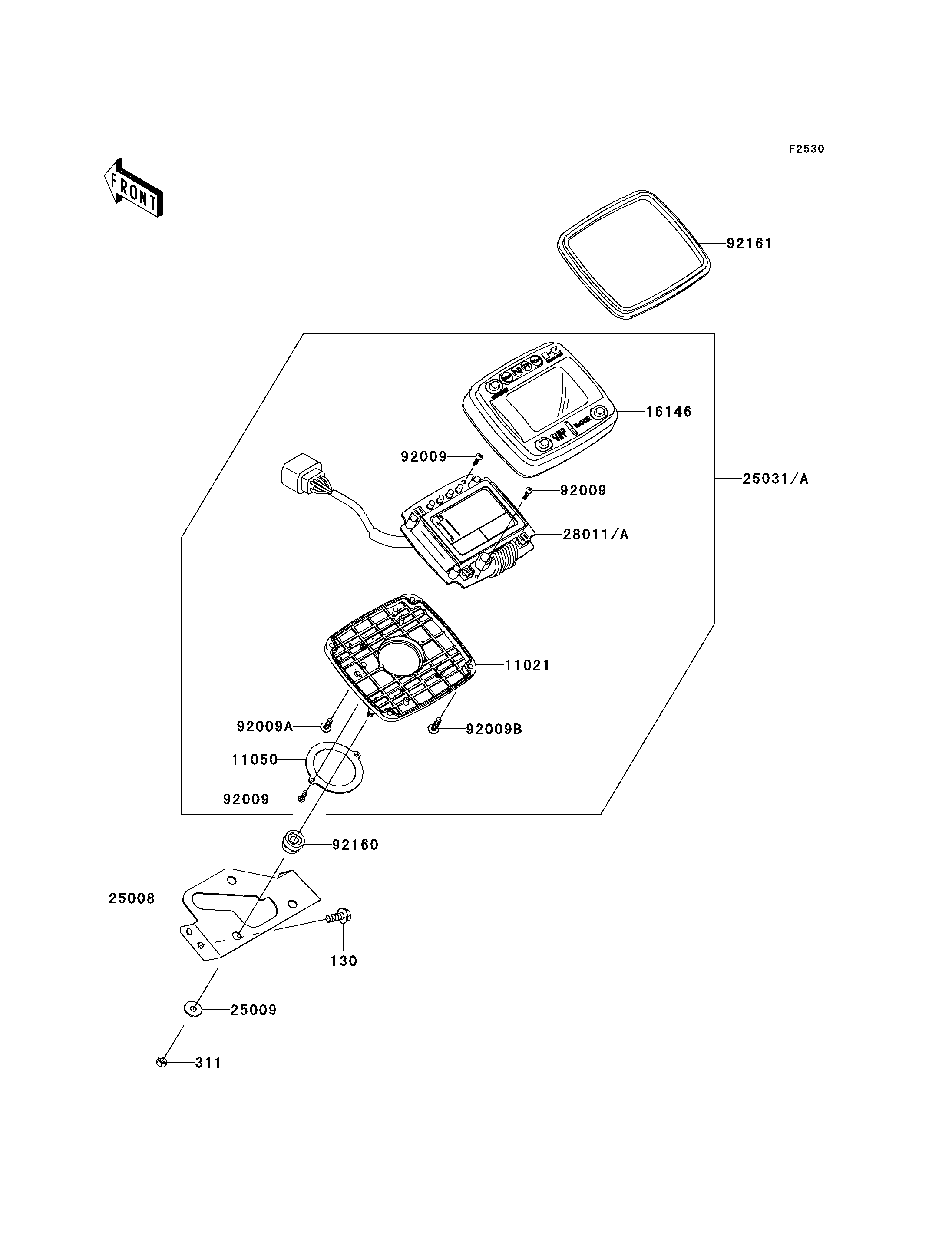

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130BB0616 4
NUT-HEX 311 311AB0500 3
CASE-ASSY,METER,LWR 11021 11021-0018 1
BRACKET,METER 11050 11050-1932 1
COVER-ASSY,METER,UPP 16146 16146-0089 1
BRACKET-METER 25008 25008-0017 1
WASHER,5.2X16X1.2 25009 25009-004 3
SCREW,TAPPING,3X12 92009 92009-1028 4
SCREW,TAPPING,4X12 92009A 92009-1254 1
SCREW,6X18 92009B 92009-1663 4
DAMPER 92160 92160-1460 3
DAMPER,METER,UPP 92161 92161-1114 1
METER-ASSY,LCD,MPH 25031 25031-0189 1 US
METER-ASSY,LCD,KPH 25031A 25031-0190 1 CN
METER,LCD,MPH 28011 28011-0116 1 US
METER,LCD,KPH 28011A 28011-0117 1 CN
