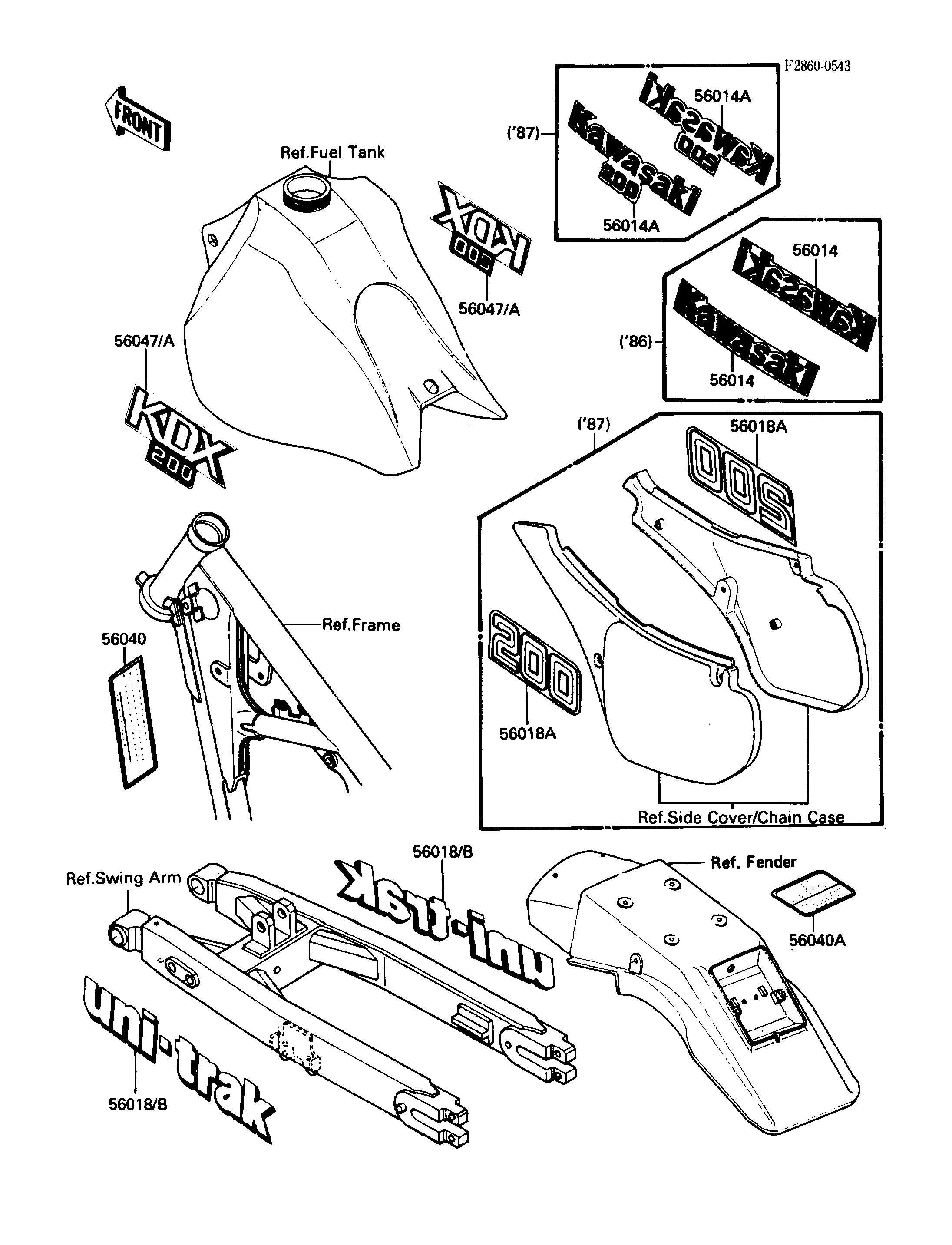

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SWING ARM,UNI-TRAK 56018B 56018-1910 4
LABEL-WARNING,OFF-ROAD VEHICLE 56040 56040-1018 1
LABEL-WARNING,GASOLINE/OIL 56040A 56040-1129 1
PATTERN,FUEL TANK,FOR GREEN 56047 56047-1670 2
PATTERN,FUEL TANK,FOR WHITE 56047A 56047-1769 2
